- Page 1 voidacoustics.com Arclite Designed for Touring U S E R G U I D E V 1 . 0...
- Page 2 For the latest online version, visit: www.voidacoustics.com Void Acoustics and the Void logo are registered trademarks of Void Acoustics Research Ltd. in the United Kingdom, USA and other countries; all other Void trademarks are the property of Void Acoustics Research Ltd.
-
Page 3: Table Of Contents
Contents Safety and Regulations Important Safety Instructions Limitations EC Declaration of Conformity UKCA Conformity Warranty Statement WEEE Directive Unpacking and Checking About Welcome Arclite Overview Key Features Arclite Specifications Arclite Dimentions Cable and Wiring Electrical Safety Cable Considerations for Fixed Installations Arclite Wiring Diagram Bias D1/Q1/Q1.5/Q2 Phoenix Wiring Bias Q3/Q5 speakON™... -
Page 4: Safety And Regulations
Void Acoustics Research Ltd for such as when the power-supply cord or plug is damaged, liquid reprocessing. -
Page 5: Unpacking And Checking
2 Unpacking and Checking All Void Acoustics products are carefully manufactured and thoroughly tested before being despatched. Your dealer will ensure that your Void products are in pristine condition before being forwarded to you but mistakes and accidents can happen. -

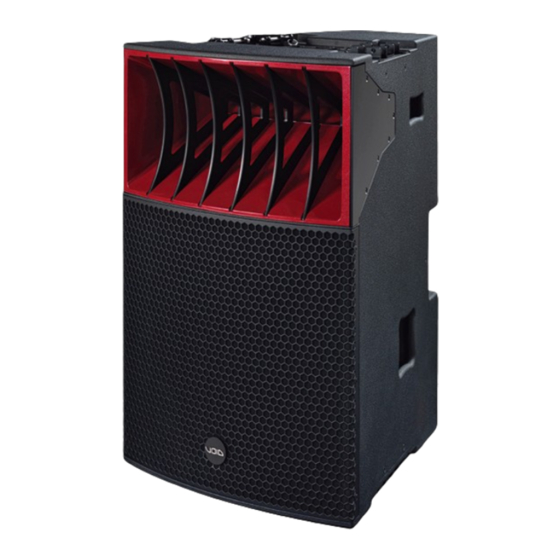

Page 6: About
In buying this product, you are now part of the Void family and we hope using it brings you years of satisfaction. This guide will help you both use this product safely and ensure it performs to its full capability. -
Page 7: Arclite Specifications
3 About 3.2.3 Arclite specifications Frequency response 45 Hz - 18 kHz ±3 dB Efficiency MHF: 113 dB 1 W / 1 m LF: 98 dB 1 W / 1 m Nominal impedance LF: 8 Ω, MHF: 16 Ω Power handling LF: 1000 W, MHF 190 W Maximum output 133 dB Cont, 139 Peak... -
Page 8: Arclite Dimentions
ANGULAR ±0,5° C DESIGN COPYRIGHT RESERVED. SURFACE TEXTURE VALUES IN MICROMETRES (µm) TO BS1134:PT2. CONFIDENTIAL AND PROPRIETARY INFORMATION OF VOID ACOUSTICS RESEARCH LTD. ALL MACHINED SURFACES TO BE ALL SCREW THREADS TO BS3643 PT.2: UG10710-1.0 - Arclite User Guide V1.0... -
Page 9: Cable And Wiring
To avoid electrical hazards please note the following: • Do not access the inside of any electrical equipment. Refer servicing to Void-approved service agents. 4.2 Cable considerations for fixed installations We recommend specifying installation-grade Low Smoke Zero Halogen (LSZH) cables for permanent installations. -
Page 10: Bias D1/Q1/Q1.5/Q2 Phoenix Wiring
4 Cable and Wiring 4.4 Bias D1/Q1/Q1.5/Q2 phoenix wiring MHF 1- MHF 1- MHF 1+ MHF 1+ LF 1- LF 1- LF 1+ LF 1+ LF 1+ LF 1+ LF 1- LF 1- MHF 2+ MHF 2+ MHF 2- MHF 2- Figure 4.3: Bias Q2 Figure 4.2: Bias D1 Bias D1/Q2... -
Page 11: Mounting
Do not install equipment that is worn, damaged, corroded, mishandled or over- stressed in any way • Use only Void-approved mounting equipment and accessories • Secondary safeties should be provided in all instances where cabinets are flying or fixing overhead and should conform to local regulations UG10710-1.0 - Arclite User Guide V1.0... -
Page 12: Horizontal Array
5.2 Horizontal Array Parts required: IT4310 - Arclite - Vertical Fly Bar Assembly - Black IT4165 - Arclite - Top and Bottom Rigging Assy - Black Figure 5.1: Rigging and fly bar Step 1: Remove all four M6 bolts from the top or bottom infill panels. Figure 5.2: Bolt removal UG10710-1.0 - Arclite User Guide V1.0 Page 12... - Page 13 5.2 Horizontal Array Step 2: Remove the infill panel and save it for future use Figure 5.3: Remove infill Step 3: Fix the rigging assembly into place using all fourteen M6 bolts provided. Figure 5.4: Plate fixing UG10710-1.0 - Arclite User Guide V1.0 Page 13...
- Page 14 5.2 Horizontal Array Step 4: Place two Arclite together as shown and remove both quick release pins from the rigging assembly Figure 5.5: Quick release Step 5: Rotate the links into position as shown. Figure 5.6: Links UG10710-1.0 - Arclite User Guide V1.0 Page 14...
- Page 15 5.2 Horizontal Array Step 6: Reinsert the pins into the rigging assembly of the neighbouring cabinet through the links to fix the top rigging assemblies together. Figure 5.7: Insert pins Step 7: Place the bracket into position as shown and fix with all four pins provided. Figure 5.8: Bracket UG10710-1.0 - Arclite User Guide V1.0 Page 15...
- Page 16 5.2 Horizontal Array Step 8: Remove the ‘R’ clip from the rear link assembly. Figure 5.9: R-clip release Step 9: Remove the pin Figure 5.10: Remove pin UG10710-1.0 - Arclite User Guide V1.0 Page 16...
- Page 17 5.2 Horizontal Array Step 10: Rotate the relink into position so the holes align Figure 5.11: Rotate link Step 11: Reinsert the pin and ‘R’ clip so that the cabinets are linked together Figure 5.12: Link UG10710-1.0 - Arclite User Guide V1.0 Page 17...
- Page 18 5.2 Horizontal Array Step 12: Remove both quick release pins from the rigging assembly. Figure 5.13: Remove pins Step 13: Rotate the links into position as shown. Figure 5.14: Links UG10710-1.0 - Arclite User Guide V1.0 Page 18...
- Page 19 5.2 Horizontal Array Step 14: Reinsert the pins into the rigging assembly of the neighbouring cabinet through the links to fix the top rigging assemblies together. Figure 5.15: Insert pins UG10710-1.0 - Arclite User Guide V1.0 Page 19...
-
Page 20: Service
Before returning your faulty product for repair, please remember to get an R.A.N. (Return Authorisation Number) from the Void dealer who supplied the system to you. Your dealer will handle the necessary paperwork and repair. Failure to go through this return authorisation procedure could delay the repair of your product. -
Page 21: Appendix
External dimensions shall be (H) 793 mm x (W) 510 mm x (D) 559mm (31.3” x 20.1” x 22”) . The weight shall be 44 kg (97lbs). The loudspeaker shall be a Void Acoustics Arclite. UG10710-1.0 - Arclite User Guide V1.0... - Page 22 H E A D O F F I C E Void Acoustics Research Ltd, Unit 15, Dawkins Road Industrial Estate, Poole, Dorset, BH15 4JY United Kingdom Call: +44(0) 1202 666006 Email: info@voidacoustics.com voidacoustics.com Void Acoustics Research Limited is a company registered in England and Wales registration number 07533536...
