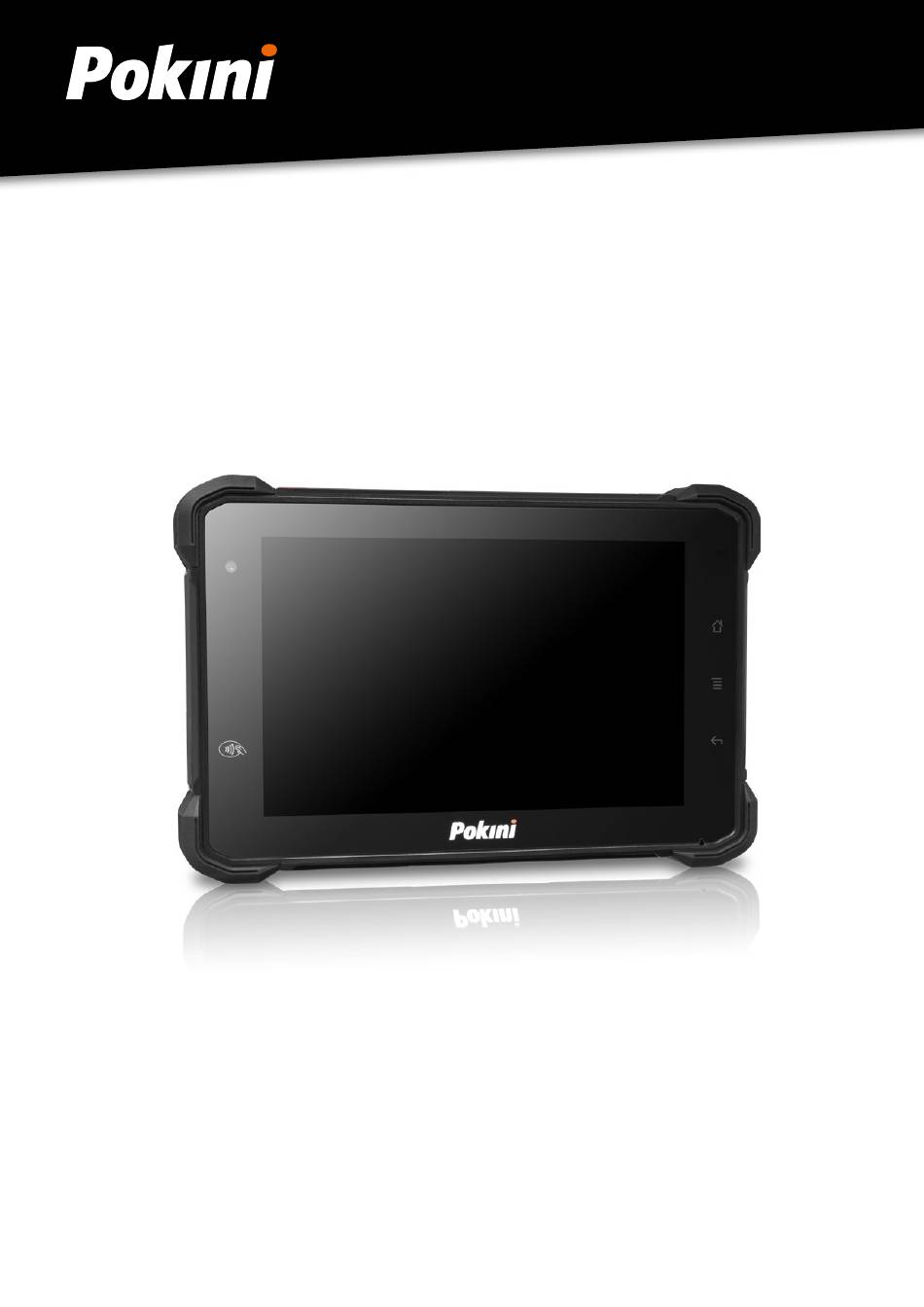

- Page 1 Pokini FT 7M Manual english...
- Page 2 Deutsch Copyright This document contains proprietary information protected by copyright. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. Disclaimer The information in this document is subject to change without prior notice in order to improve the reliability, design and function.
-
Page 3: Table Of Contents
Content Chapter 1: Introduction ......................6 1.1 Product Highlights ......................6 1.2 Parts of the Device ......................6 1.3 Extended Cable Definition ....................7 1.3.1 Standard Version ......................7 1.3.2 OBD-II Version ........................8 1.3.3 SAE J1939 Version ......................9 1.3.4 CAN Bus Version ...................... - Page 4 Deutsch Declaration of Conformity The CE symbol on your product indicates that it is in compliance with the di-rectives of the Union European (EU). A Certificate of Compliance is available by contacting Technical Support. This product has passed the CE test for environmental specifications when shielded cables are used for external wiring.
- Page 5 Important Safety Instructions • Never pour any liquid into openings. This may cause fire or electrical shock. • If one of the following situations arises, get the equipment checked by ser-vice personnel: The power cord or plug is damaged. Liquid has penetrated into the equipment. The equipment has been exposed to moisture.
-
Page 6: Chapter 1: Introduction
Deutsch Chapter 1: Introduction 1.1 Product Highlights • Qualcomm Cortex-A53 64-bit Octa-core processor 1.8G • Android 9.0 Operation System • Comply with IP67 rating • WIFI, Bluetooth, LTE, GNSS and 5000mAh rechargeable battery supported • 7 Inch IPS Display, physical 1280x800 resolution, 800cd/m², multi-point capaci-tive touch •... -
Page 7: Extended Cable Definition
1.3 Extended Cable Definition 1.3.1 Standard Version... -
Page 8: Obd-Ii Version
Deutsch 1.3.2 OBD-II Version... -
Page 9: Sae J1939 Version
1.3.3 SAE J1939 Version... -
Page 10: Can Bus Version
Deutsch 1.3.4 CAN Bus Version... -
Page 11: Specifications
1.4 Specifications... - Page 12 Deutsch...
-
Page 14: Chapter 2: Getting Started
Deutsch Chapter 2: Getting Started 2.1 Power On/Off and Sleep/Wake This Chapter is describing how to power on/off the device, put the device into sleep mode (screen saver) and force restart. Proper operation of power on/off the device will be beneficial to ensure the stability of the system. The device status indicated by the color of the indicator is as de-scribed in the following table for the standard tablet. -
Page 15: Installing Micro Sd And Sim Card
2.2 Installing Micro SD and SIM Card To install the micro SD card and/or Micro SIM (Note Must be installed in power off status) a. Find the Micro SIM card slot and the Micro SD card slot. The following graphics illustrates the correct cards orien- tation, which the card chips is facing into the display orientation: b. -
Page 16: Charging With The Power Adapter
Deutsch 2.3.1 Charging with the Power Adapter To charge the battery with the provided power adapter: a. If the device with an optional docking station, then mount the tablet with dock-ing station, connect the power adapter to the DC port of Docking Station. b. -
Page 17: Installing/Replacing The Battery
b. When the battery is fully charged, you can disconnect the DC input or USB type-c cable. If available, please keep the device in charging by DC power supply. See the details in “2.3 Charging the Battery”. 2.3.3 Installing/Replacing the Battery In case you need to install or replace the battery, follow the steps below to access the battery chamber and replace the battery. -
Page 18: Optimizing Battery Life
Deutsch 2.4 Optimizing Battery Life If the tablet is unable to keep charging by DC power supply, to optimize the oper-ating time of the battery, it is recom- mended that you do the following: • Decrease the LCD display brightness. •... - Page 19 Enable CPU power saving mode on battery settings page to limit the maxi-mum CPU performance to conserve batte- ry life and lower device tempera-ture. To access the battery settings page, swipe down the Status Bar in the up-per right corner and then tap and hold the Battery icon.
-
Page 20: Chapter 3. Using Tablet Hardware Interface
Deutsch Chapter 3. Using Tablet Hardware Interface 3.1 Transferring Files between Computer and the Device You can transfer files, such as pictures or audio files, between your computer and your device using the provided USB cable. 3.1.1 Connection Connect the device to the computer by using the USB type-c cable, and open the prompt message of the device. Refer to the following figure, and click “USB charging this device”... -
Page 22: Using Serial Port Demo App
Deutsch 3.2 Using Serial Port Demo App Serial Port ID: COM1, COM2 Correspondence between RS232 tail line and device node. COM1=/dev/ttyHSL0. COM2=/dev/ttyHSL1. The boxes in red means the text box for the COM port information received, to display information received by corresponding COM port. -
Page 23: Using Acc
3.3 Using ACC Please see “1.3 Extended cable definition” for ACC Interface details. 3.3.1 ACC Connection Instruction Figure 1-1, connecting the tablet with vehicle power supply through extended ca-ble or docking station, and connec- ting ACC wire on extended cable of the tablet with ACC of vehicle. Figure 1-1 3.3.2 ACC Functions I. -
Page 24: Acc Settings Path
Deutsch 3.3.3 ACC Settings Path Find ACC Settings from Settings as the Figures2-1 shown: Figure 2-1 Figure 2-2... -
Page 25: Acc Settings
3.3.4 ACC Settings Note: The following text description corresponds to the red number in the figure. 1. ACC controls the switch of the three functions of turning on the screen, turn-ing off the screen and turning off the power; 2. ACC controls switch to turn off the screen function; 3. -
Page 26: Using Gpio
Deutsch 3.4 Using GPIO 3.3.1 GPIO Tail Lines Instruction Regarding the definition diagram of GPIO interface, please see the details in Chapter “1.5 Cable Definition”. 3.3.2 GPIO Typical Connection The following figure is a typical connection method of GPIO. In order to ensure communicate normally, please con- nect the GPIO interface of tablet as shown in the following figure. -
Page 27: Gpio Specification
3.3.3 GPIO Specification 3.3.4 GPIO_DEMO Instruction a) Introduction This software is only used for developing GPIO functions of device, and it isn‘t suitable for factory‘s standard soft- ware. b) GPIO_DEMO Main Interface Figure 2-1 c) Introduction of Main Components The part marked with a red box in Figure 2-2. 1. - Page 28 Deutsch Figure 2-2 The button marked with a red box shown in Figure 2-3. It can read the value at once, when GPIO is set as the input direction. Figure 2-3 The button marked with a red box shown in Figure 2-4 used to set the high or low of GPIO output at once.
- Page 29 Figure 2-4...
-
Page 30: Using Nfc Function
Deutsch 3.5 Using NFC Function 3.5.1 NFC Activation Method Activate the NFC function according to Fugure1 to 4. Figure 1 Figure 2... -
Page 31: Nfc Usage Demo
Figure 3 Figure 4 3.5.2 NFC Usage Demo After activating NFC function, place the NFC card close to the induction area (as Figure 4 shows). A prompt tone would be heard if the card is successfully identi-fied. If the card contains some information (such as manufacturer’s information), there will be an interface popped up as shown in Figure 5. - Page 32 Deutsch Figure 5 Figure 6...
-
Page 33: System Root Switch Usage Guide
3.6 System Root Switch Usage Guide 3.6.1 Refer to the following figure to enter the Root privilege (on/off) function set-ting interface. 3.6.2 The root switch setting interface is as follows. In the figure, “1” is the Root permission (on/off) switcher. In the figure, “2”... -
Page 34: Obd-Ii Interface (Optional)
Deutsch 3.6.3 The dialog box to set the Root Permissions (on/off) 3.6.4 Dialog box for modifying the password required for the root permission (on/off) status Note: If restore the factory settings, the root switch state will be reset to OFF, and the password is restored to the initial. 3.7 OBD-II Interface (optional) 3.7.1 Overview The OBD-II interface is recommend for car and commercial vehicle applications. -
Page 35: J1939 Interface (Optional)
communicating with the vehicle’s computer, also known as the ECU (Electronic Control Unit). A wealth of information can be obtained by tapping into the OBD bus, including the status of the malfunction indicator light (MIL), diagnostic trou-ble codes (DTCs), inspection and maintenance (I/M) information, freeze frames, VIN, hundreds of real-time para- meters, and more. -
Page 36: Can Bus Interface (Optional)
Deutsch 3.8.2 Support protocol • SAE J1939 • SAE J1708/J1587 3.8.3 Application fields • Fleet management and tracking devices • Vehicle diagnostic scanning tools and code reader • Sensor with J1939 / J1708 and CAN Bus protocol • Digital dashboard 3.9 CAN Bus Interface (optional) 3.9.1 Overview CAN Bus is a robust vehicle bus standard designed to allow microcontrol-lers and devices to communicate with each... -
Page 37: Chapter 4. Docking Station Using Instruction
Chapter 4. Docking Station Using Instruction 4.1 Docking Station Install Steps 4.1.1 Align the tablet to the limit slot of docking station as Fig 4.1 shown. 4.1.2 Pull the buckle up as the Fig.4.2 shown. 4.1.3. Push tablet to make it attached the docking via snap joint, as Fig. 4.3 shown. - Page 38 Deutsch 4.2 Docking Station Disassemble Steps 4.2.1 Stretch upwards the buckle to release it from the device, as Fig 4.5 shown. 4.2.2. Take out the device as Fig.4.6 shown.
-
Page 39: Chapter 5 . Accessories
Chapter 5 . Accessories 5.1 Accessories (Choose 1 of 4) Docking Station USB to Type-C cable Allen Wrench Screws for RAM Screws for SIM card 5.2 Optional accessories 1. Docking Station Lock 1 pc 2. DC (12V) 1 pc 3. J1939 female to open cable 1 pc 4. - Page 40 Support You have any technical questions? If you have problems or questions, please contact us by e-mail: support@ @ pokini.de V1.0 / 05-2022 EXTRA Computer GmbH Brühlstr. 12 89537 Giengen-Sachsenhausen Deutschland/ Germany www.pokini.de all rights reserved...
