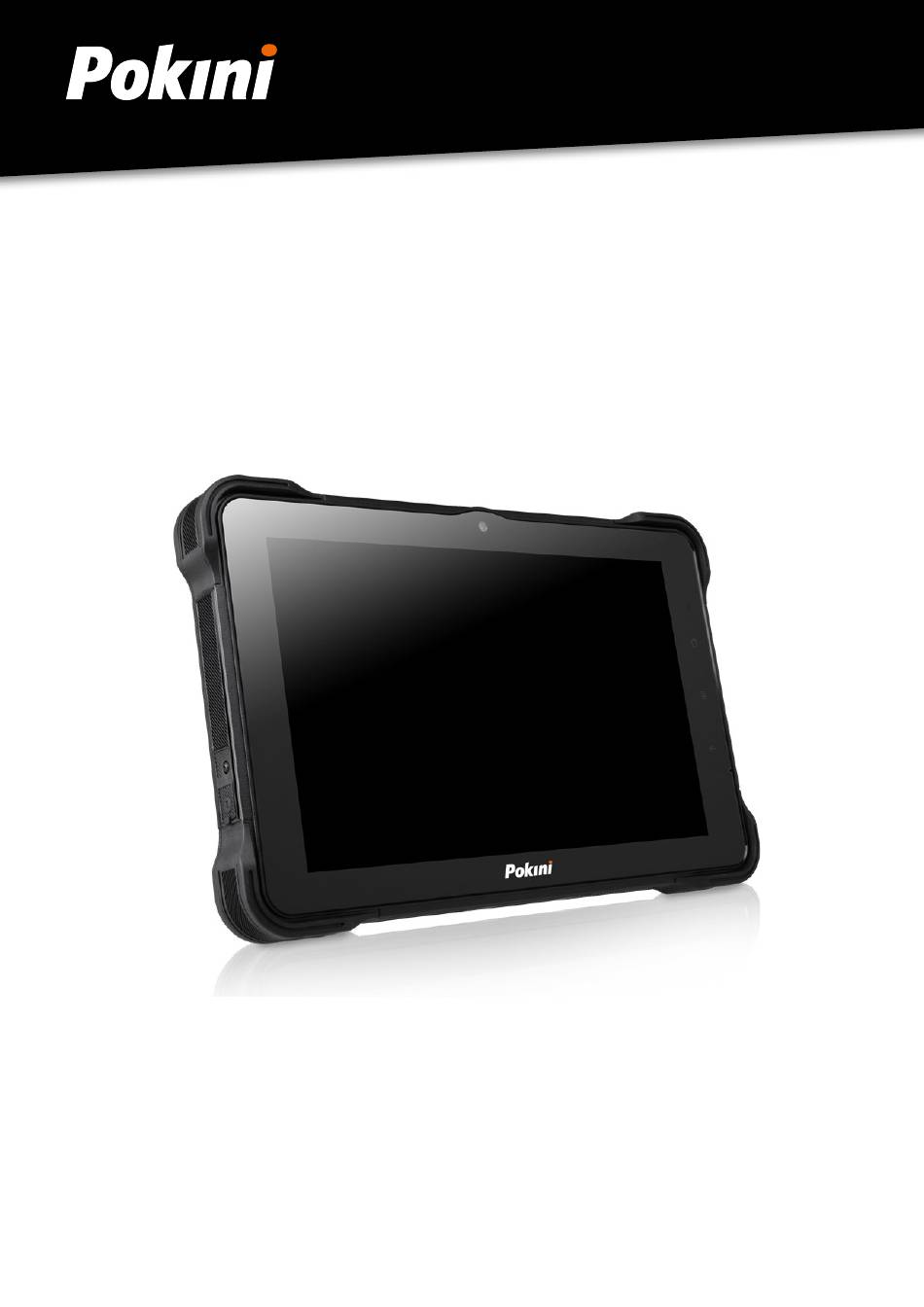

  • Page 1 Pokini FT 10M Manual english...
  • Page 2 Deutsch Copyright This document contains proprietary information protected by copyright. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. Disclaimer The information in this document is subject to change without prior notice in order to improve the reliability, design and function.

  • Page 3: Table Of Contents

    Content Chapter 1 Introduction........................ 6 1.1 Product Highlights......................... 6 1.2 Parts of the Device........................ 6 1.3 Extended Cable Definition....................7 1.3.1 Docking Station........................7 1.3.2 All in one cable........................8 1.4 Specifications........................9 1.5 System icon description....................11 Chapter 2 Getting Started....................... 12 2.1 Power On/Off and Sleep/Wake..................
  • Page 4 Deutsch Declaration of Conformity The CE symbol on your product indicates that it is in compliance with the di-rectives of the Union European (EU). A Certificate of Compliance is available by contacting Technical Support. This product has passed the CE test for environmental specifications when shielded cables are used for external wiring.
  • Page 5 Important Safety Instructions • Never pour any liquid into openings. This may cause fire or electrical shock. • If one of the following situations arises, get the equipment checked by ser-vice personnel: The power cord or plug is damaged. Liquid has penetrated into the equipment. The equipment has been exposed to moisture.

  • Page 6: Chapter 1 Introduction

    Deutsch Chapter 1: Introduction 1.1 Product Highlights • Qualcomm Cortex-A7,32-bit Processor,1.1 GHz • Android 7.1.2 Operation System • Comply with IP67 rating • WI-FI, Bluetooth, LTE, GNSS and 8000 mAh rechargeable battery supported • 10 Inch IPS Display, physical 1280×800 resolution, 1000 cd/m², multi-point capacitive touch •...

  • Page 7: Extended Cable Definition

    1.3 Extended Cable Definition 1.3.1 Docking Station...

  • Page 8: All In One Cable

    Deutsch 1.3.2 All in one cable...

  • Page 9: Specifications

    1.4 Specifications...
  • Page 10 Deutsch...

  • Page 11: System Icon Description

    1.4 Specifications...

  • Page 12: Chapter 2 Getting Started

    Deutsch Chapter 2: Getting Started 2.1 Power On/Off and Sleep/Wake This Chapter is describing how to power on/off the device, put the device into sleep mode (screen saver) and force restart. Proper operation of power on/off the device will be beneficial to ensure the stability of the system. The device status indicated by the color of the indicator is as de-scribed in the following table for the standard tablet.

  • Page 13: Charging The Battery

    2.2 Changing the Battery The tablet battery is installed in a removable way, which greatly facilitates the user‘s use of disassembly and installa- tion. Note: Please shut down before removing the battery. Icon introduction: : The switch is on the left, lock the machine state, lock the battery : The switch is on the right to unlock the machine status, and the battery can be removed : In the direction of the arrow, push the indicated skateboard up...

  • Page 14: Charging With The Power Adapter

    Deutsch 3 Pull out the fixed battery groove (located on the upper right of the battery). 4 After completing the above operations, as shown in the figure below. In order to ensure the life and performance of the battery, if your tablet has been stored in the warehouse for more than three months, it is recommended to charge the battery every three months.

  • Page 15: Checking The Battery Level

    2.2.2 Checking the Battery Level a. When the charging is in process, a battery indicator will appear in the status bar showing the charging percentage. To view the charge percentage, swipe down the Status Bar and you will see the charging percentage. b.
  • Page 16 Deutsch • Enable CPU power saving mode on battery settings page to limit the maximum CPU performance to conserve battery life and lower device temperature. To access the battery settings page, swipe down the Status Bar in the upper right corner and then tap and hold the Battery icon.

  • Page 17: Installing Micro Sd And Sim Card

    2.4 Installing Micro SD and SIM Card Before installing the SIM card and TF, you need to remove the tablet battery. After disassembly, please insert the required card into the machine in the direction indicated in the figure below. Finally, load the battery and press the power button to start the machine.

  • Page 18: Using Serial Port Demo App

    Deutsch Find out the “Device” in “This PC”. 3.2 Using Serial Port Demo App Serial Port ID: COM1, COM2 Correspondence between RS232 tail line and device node. COM1=/dev/ttyHSL0. COM2=/dev/ttyHSL1. The boxes in red means the text box for the COM port information received, to display information received by corresponding COM port.

  • Page 19: Using Acc

    3.3 Using ACC Please see “1.3 Extended cable definition” for ACC Interface details. 3.3.1 ACC Connection Instruction Connecting the tablet with vehicle power supply through extended cable or docking station, and connecting ACC wire on extended cable of the tablet with ACC of vehicle. 3.3.2 ACC Functions I.

  • Page 20: Acc Settings Path

    Deutsch 3.3.3 ACC Settings Path Find ACC Settings from Settings as the figures shown: 3.3.4 ACC Settings ACC Settings Path: Settings-->ACC Settings Note: The following text description corresponds to the red number in the figure. ACC controls the switch of the three functions of turning on the screen, turning off the screen and turning off the power;...
  • Page 21 ACC Settings interface-1 ACC Settings interface-2 Screen off delay time setting dialog box...

  • Page 22: Using Gpio

    Deutsch 3.4 Using GPIO 3.4.1 GPIO Tail Lines Instruction Regarding the definition diagram of GPIO interface, please see the details in Chapter “1.3 Extended cable definition”. 3.4.2 GPIO Specification The GPIO interface instruction diagram is as follows: In case of inductive load of motor, relay, and so on, be sure to use the clamp diode externally. Typical relay connection...

  • Page 23: Gpio_Demo Instruction

    3.4.3 GPIO_DEMO Instruction a) Introduction This software is only used for developing GPIO functions of device, and it isn‘t suitable for factory‘s standard soft- ware. b) GPIO_DEMO Main Interface c) Introduction of Main Components The part marked with a red box. 1.
  • Page 24 Deutsch The button marked with a red box. It can read the value at once, when GPIO is set as the input direction. The button marked with a red box shown in Figure used to set the high or low of GPIO output at once.

  • Page 25: Using Nfc Function

    3.5 Using NFC Function 3.5.1 NFC Activation Method Activate the NFC function.

  • Page 26: Nfc Usage Demo

    Deutsch 3.5.2 NFC Usage Demo After activating NFC function, place the NFC card close to the induction area. A prompt tone would be heard if the card is successfully identified. If the card contains some information (such as manufacturer’s information), there will be an interface popped up as shown in figure.

  • Page 28: System Root Switch Usage Guide

    Deutsch 3.6 System Root Switch Usage Guide 1.Refer to the following figure to enter the Root privilege (on/off) function setting interface. 2.The root switch setting interface is as follows. In the figure, “1” is the Root permission (on/off) switcher.”2” to modify the password.

  • Page 29: Chapter 4 Docking Station Using Instruction

    3.The dialog box to set the Root Permissions (on/off) 4.Dialog box for modifying the password required for the root permission (on/off) status Note: If restore the factory settings, the root switch state will be reset to OFF, and the password is restored to the initial. Chapter 4 Docking Station Using Instruction 4.1 Docking Station Install Steps 1.Insert the key and turn it 90 degrees to the right to unlock the key to unlock the telescopic buckle as Fig 4-1 shown.
  • Page 30 Deutsch 2. Align the tablet to the limit slot of docking station as Fig 4-2 shown. 3.Pull the buckle up as the Fig.4-3 shown.
  • Page 31 4.Push the tablet to make it attached the docking via snap joint, as Fig. 4-4 shown. 5. Release and finish the installation as Fig.4-5 shown. 4.2 Docking Station Disassemble Steps 1. Stretch upwards the buckle to release it from the device, as Fig 4-6 shown.
  • Page 32 Deutsch 2.Take out the device as Fig.4-7 shown. 3.Hold down the key and rotate 90 degrees to the locked sign, pull out the key to lock the telescopic buckle as shown in Fig.4-8.

  • Page 33: Chapter 5 Accessories

    Chapter 5 Accessories 5.1 Accessories Allen Wrench 1 pc Screws for RAM 4 pc USB to Type-C cable 1 pc DC (12V) 1 pc 5.2 Optional accessories J1939 female to open cable 1 pc OBD-II female to open cable 1 pc RAM -101U 1 pc...
  • Page 34 Support You have any technical questions? If you have problems or questions, please contact us by e-mail: support@ @ pokini.de V1.0 / 05-2022 EXTRA Computer GmbH Brühlstr. 12 89537 Giengen-Sachsenhausen Deutschland/ Germany www.pokini.de all rights reserved...
