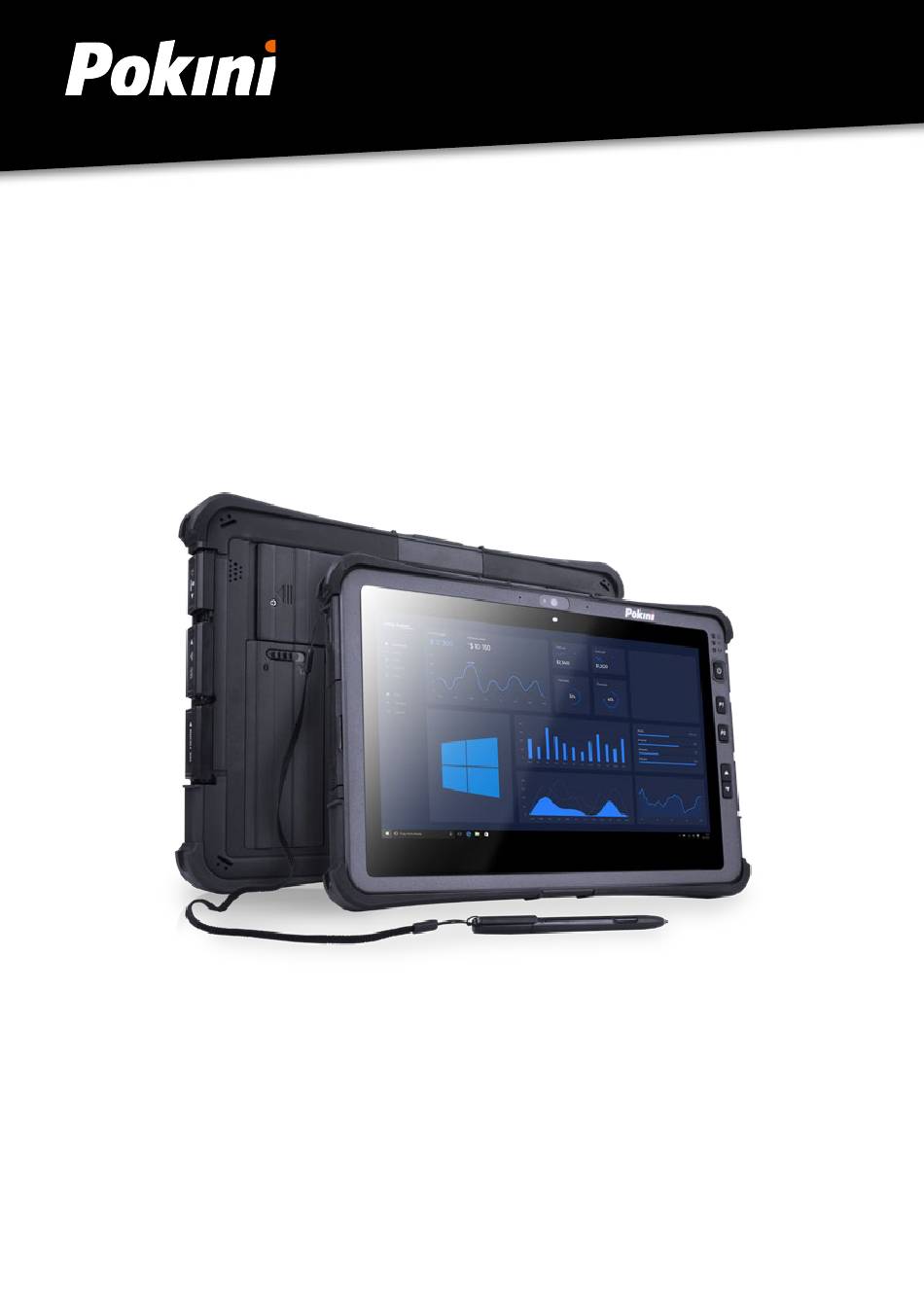

  • Page 1 Pokini Tab K11B Quick Start Guide English...

  • Page 2: Table Of Contents

    Table of Contents Before you start ......................... Package Contents ......................Product Overview ......................Status Indicators ....................... Getting started ........................Installing the Battery Removing the SSD Kit Installing the SSD Kit Connecting the Power Starting your Tablet Pc Operating your Tablet PC ....................Using the Quick Menu Unsing the Camera Making Connections ......................

  • Page 3: Before You Start

    English Before You Start Congratulations on your purchase of this Tablet PC. This fully-rugged Tablet PC is portable and provides users with maximum mobile computing experience in a wide range of working enviroments. Bevor you begin using your tabelt PC, read this chap- ter to familiarize yourself with the main computents installed in the system.
  • Page 4 bay battery 2-bay battery Folio Case Soft handle charger (optional) charger (optional) (optional) (optional) Rotate strap Shoulder strap (optional) (optional) Note: The pictures are for reference only, actual items may slightly differ. Decla- ration of product weight: 1,39kg. The actual weight may varies by configuration.

  • Page 5: Product Overview

    English Product Overview Front View 1 Microphones Record the surrounding sound. Use to detect the current level of visible light in the 2 Ambient light sensor surrounding environment. 3 Front camera Use for video conference. 4 Status indicators Indicate the corresponding function status. 5 Power button Press to turn your tablet PC on or off.
  • Page 6 P1: Press to activate the assigned function. - Stealth mode button (by default). - Night Vision button. - Disable (no function). Programmable P2: Press to activate the assigned function. Scanner buttons button (if the barcode scanner is integrated). - Touch screen mode selection. - Shortcut key for launching the specific application.
  • Page 7 English Product Overview Back View 1 Speakers Emit sound. 2 SSD kit latch vck the SSD kit in place. 3 SSD kit compartment Contain the SSD module. Provide additional lighting when taking 4 Camera LED flash pictures under low light environment. 5 Rear camera Use to take pictures.
  • Page 8 Top View 1 RS232 port (for selected model) Connect a serial peripheral device. 2 USB port (for selected model) Connect a USB peripheral device. 3 Barcode scanner (for selected model) Scan barcodes. 4 USB-Type-C-Port (for selected model) Connect a USB peripheral device. Bottom View Use for the external WLAN antenna.
  • Page 9 English Left View 1 Strap holes Attach the strap for the stylus pen. 2 Kensington lock slot Connect a Kensington-compatible security lock. Smart card reader Use to insert smart cards. (for selected model) Right View 1 DC-in jack Connect the power adapter. 2 HDMI Port Connect to an external display.

  • Page 10: Status Indicators

    Status Indicators The status indicators of the tablet PC light up when a particular function of the tablet PC is active. The LED always lights on (green) when the system is running. Power When the system is in sleep mode, the LED blinks. Indicate the battery status: Green: when battery is fully charged (95% or above) Orange: when battery is charging...

  • Page 11: Getting Started

    English Getting Started This chapter will help you get started using the device. Installing the Battery To install the battery, follow the steps below: 1. Align and insert the battery to the battery compartment. 2. Push completely until the battery locks into place. 3.

  • Page 12: Removing The Ssd Kit

    When to replace the Battery Pack The battery performance gradually decreases over time and usage. We recommend you to replace your battery pack after 18 to 24 months of usage. Removing the Battery To remove the battery, follow the steps below: 1.

  • Page 13: Installing The Ssd Kit

    English Installing the SSD Kit To install the SSD kit, follow the st eps below: 1. Align and insert the SSD kit to its compartment. 2. Slide the SSD kit latch to the lock position to secure the SSD kit. Connecting the Power Your tablet PC can be powered up using the AC adapter or the Lithium-ion battery.

  • Page 14: Starting Your Tablet Pc

    Using Battery Power 1. Install a charged battery in the battery compartment. 2. Remove the AC adapter (if plugged). Your tablet PC will automatically use the battery power. Note: If your tablet PC is connected to an electrical outlet and the battery is installed, your tablet PC uses power from the electrical outlet.

  • Page 15: Operating Your Tablet Pc

    English Operating Your Tablet PC This chapter will guide you on how to use your Tablet PC. Using the Quick Menu To enter the Quick menu, tap the arrow on the task bar to display hidden icons. Then tap the Quick Menu icon You can also access the Quick menu in the All apps list.
  • Page 16 Viewing the Version Information On the Version section, you can view the Bios version, EC version, and Quick Menu version. Viewing the Battery Charge Cycles On the Battery Charge Cycles section, you can view the battery charge cycle and battery status. Configuring the Programmable Button (P1) On the P1 Button Setting section, you...
  • Page 17 English Assigning an Application the P2 Button Tap the P-Key tab to assign an application to the P2 button. Select the desired appli- cation and click Open. Configuring the Up/Down Keys (UP / Down) On the Up/Down Button Setting section, you can assign the function for the Up and Down buttons.
  • Page 18 Accessing the Mobility Center Tap the Mobility Center tab to adjust or configure the brightness, volume level, bat- tery status, screen orientation, external display, sync, and presentation settings. Configuring the Touchscreen Settings Your tablet PC is equipped with a touchscreen. Using the touchscreen, you can na- vigating the screen by using touch gestures (any input from your finger, a glove, or a stylus).
  • Page 19 English Configuring External Antenna Switching Mode Select the respective external antenna tab to configure the setting. - Tap the Wi-Fi Antenna tab to enable/disable the device to automatically switch to the external WLAN antenna when it is affixed on a docking station. - Tap the LTE Antenna tab to enable/disable the device to automatically switch to the external WWAN antenna when it is affixed on a docking station.
  • Page 20 Using the Camera Using the Camera application, you can use this tablet PC to take photos or videos. Opening Camera App To access the Camera application, do one the following: a. Tap > Camera. Taking Photos to capture a photo Note: To switch between front and rear cameras, tap...
  • Page 21 English Recording Videos 1. Tap to witch to Video mode. 2. Press to start recording a video. The recording time appears on the bot- tom on the screen. 3. To stop recording the video, tap. Recording Videos 1. Tap > to switch to Pro mode. 2.
  • Page 22 Set the action when you tap and hold the Camera button. - Video – Tap and hold the Camera button to create a Press and hold video camera button - Photo burst - Tap and hold the Camera button to take photos continuously.

  • Page 23: Making Connections

    English Making Connections This chapter will guide you on installing peripheral devices to maximize the use of your tablet PC. Installing the Memory Card Your Tablet PC supports different types of memory cards to provide faster data transfer. Supported types: Micro SDHC, Micro SDXC 1.

  • Page 24: Installung The Smart Card

    1. Slide to the left to open the memory/SIM card cover. 2. Push a valid SIM card into the SIM card slot until it clicks into place. 3. Close the memory/SIM card cover. Installing the Smart Card Your tablet PC is equipped with a built-in smart car make secure purchases, store security information, and provide identification and information using a smart card.

  • Page 25: Connecting The Microphone/Headset

    English Connecting the Microphone/Headset Your Tablet PC is equipped with audio combo jack that enables you to use the head- set or microphone. - To connect to a headset, open the memory/SIM card cover and plug the stereo headphone cable into the audio combo jack of your device. Note: The headset and microphone are not included in the package.

  • Page 26: Connecting Usb Devices

    Connecting USB Devices You can connect your tablet PC to other USB devices. such as a mouse, keyboard, digital camera, printer, or an external hard disk drive. 1. Slide to the right to pen the I/O port cover. 2. Connect one end of the USB cable to the USB port of your device. Note: The USB cable is not included in the package.

  • Page 27: Connecting External Display

    English Connecting to External Display You can connect an additional display to your tablet PC using the HDMI cable. 1. Slide to right to open the I/O port cover. 2. Connect one end of the HDMI cable to the HDMI port of your device. Note: The HDMI cable is not included in the package.
  • Page 28 Connecting to a Bluetooth Device Your Tablet Pc can connect and communicate with other Bluetooth-enabled devices. By default, the Bluetooth function is disabled. 1. Tap on the system tray. Then tap Bluetooth to enable the function. 2. Tap the arrow icon ( ) on the System tray to display hidden icons.
  • Page 29 English 5. Select the device you want to connect. Verify the pairing code on the screen of your device and pairing device match, then tap Connect to start pairing. Note: If the device that you want to add does not appear on the screen, please check if the device is turned on and discoverable.
  • Page 30 Connecting to a Wireless Local Area Network Your tablet PC comes with a WLAN module. A wireless network can be added either when the network is detected or by manually entering the settings information. To connect, follow the steps below: 1.
  • Page 31 English Note: - Wi-Fi access requires service from a wireless service provider. Contact your service provider for more information. - Actual wireless connectivity will depend on system configuration. Please contact your dealer for more information. - To disconnect from the wireless network, select the network in the wireless in the wireless network list and tap Disconnect.

  • Page 32: Using The Bios Setup Utility

    - Press the P1 key. - Tap Setup (on the upper right corner of the screen) when the Pokini logo appears. - Press the Delete button on the keyboard.
  • Page 33 English Navigating and Entering Information in BIOS Use the following keys to move between fields and to enter information: Select screen / click Select item Enter / Double-click Select + / — Change Opt. General Help Previous Values Optimized Defaults Save &...

  • Page 34: Main Menu

    Main Menu The Main menu displays the system overview information about the device, inclu- ding the system date and time. BIOS Information Display the BIOS version detected during boot up. Display the CPU type and speed, total memory, mainboard System Information version, PCH SKU, ME FW version, and ME Firmware SKU.

  • Page 35: Advanced Menu

    English Advanced Menu The Advanced menu allows you to configure specific system settings. CPU Configurations Configure the CPU parameters. Key Definitions Configure the Key Definition settings under Windows. Configure the device settings including USB3.0 port, LAN, SD card reader, TPM device, HD audio, finger Device Configurations print scanner, touch screen, PCMCIA/ExpressCard, front camera, rear camera, digitizer, barcode, wireless...

  • Page 36: Boot Menu

    Boot Menu The Boot menu allows you to configure the boot settings and boot sequence. Save Changes and Reset Reset the system after saving the changes. Discard Changes Reset the system setup without saving any and Reset changes. Restore Defaults Restore the default values for all the setup options.

  • Page 37: Security Menu

    English Security Menu The Security menu allows you to set or change the Administrator and User passwords. Administrator Password Set the Administrator password. Secure Boot Customize the Secure Boot settings.

  • Page 38: Save & Exit Menu

    Save & Exit Menu The Save & Exit menu allows you to save/discard the changes and restore the de- fault values for all setup options before leaving the BIOS Setup Menu. Bootup NumLock State Select the keyboard NumLock state. Launch CSM Enable/Disable CSM support.

  • Page 39: Appendix

    English Appendix Copyright Copyright© 2018. All rights reserved. No part of this user manual may be transmitted, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without the prior written permission of the manufacturer. Information is subject to change without prior notice.
  • Page 40 RF exposure warning This equipment must be installed and operated in accordance with provided instruc- tions and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation ins- tructions and transmitter operating conditions for satisfying RF exposure compliance.
  • Page 41 English PRODUIT LASER DE CLASSE 1 LASERSCHUTZKLASSE 1 PRODUKT TO EN60825 ATTENTION : CE PRODUIT CONTIENT UN SYSTÈME LASER ET EST CLASSE: N TANT QUE « PRODUIT LASER DE CLASSE 1 ». POUR UTILISER CE MODÈLE CORRECTE- MENT, LISEZ LE MANUEL D’INSTRUCTIONS ATTENTIVEMENT ET CONSERVEZ-LE POUR RÉFÉRENCE FUTURE.

  • Page 42: Safety Instructions

    Safety Instructions These safety instructions should always be observed to ensure safe operation when handling the device. - Do not place this device on an unstable table or surface. The device may fall, causing serious damage to its housing and components. - Do not cover the device, or block the air ventilation holes of the device with any other objects.
  • Page 43 English Instructions de sécurité Ces instructions de sécurité doivent toujours être suivies pour assurer le fonctionnement sûr de l’appareil lors de sa manipulation. - Ne placez pas cet appareil sur une table ou surface instable. L’appareil pourrait tomber et causer des dégâts sérieux à son boîtier et ses composants. - Ne couvrez pas l’appareil, et ne bloquez pas les trous de ventilation avec d’autres objets.
  • Page 44 Support You have any technical questions? If you have problems or questions, please contact us by e-mail: support@ @ pokini.de V1.0 / 06-2022 EXTRA Computer GmbH Brühlstr. 12 89537 Giengen-Sachsenhausen Deutschland/ Germany www.pokini. de all rights reserved...
