Partnerschaft für mobile Kinder

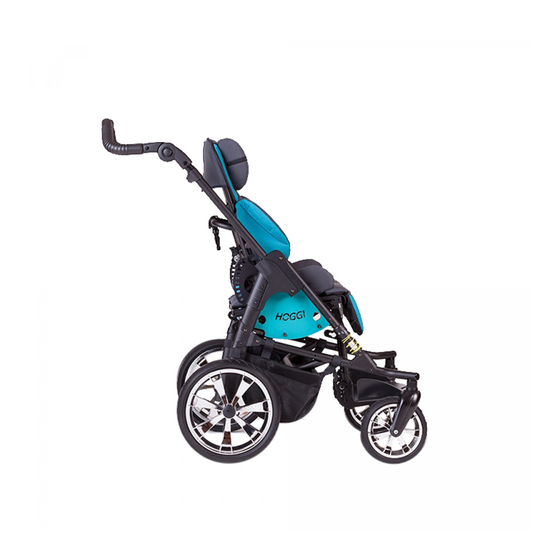

BINGO Evolution
Service instructions
en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BINGO Evolution and is the answer not in the manual?

Questions and answers

Related Manuals for Hoggi BINGO Evolution

Summary of Contents for Hoggi BINGO Evolution

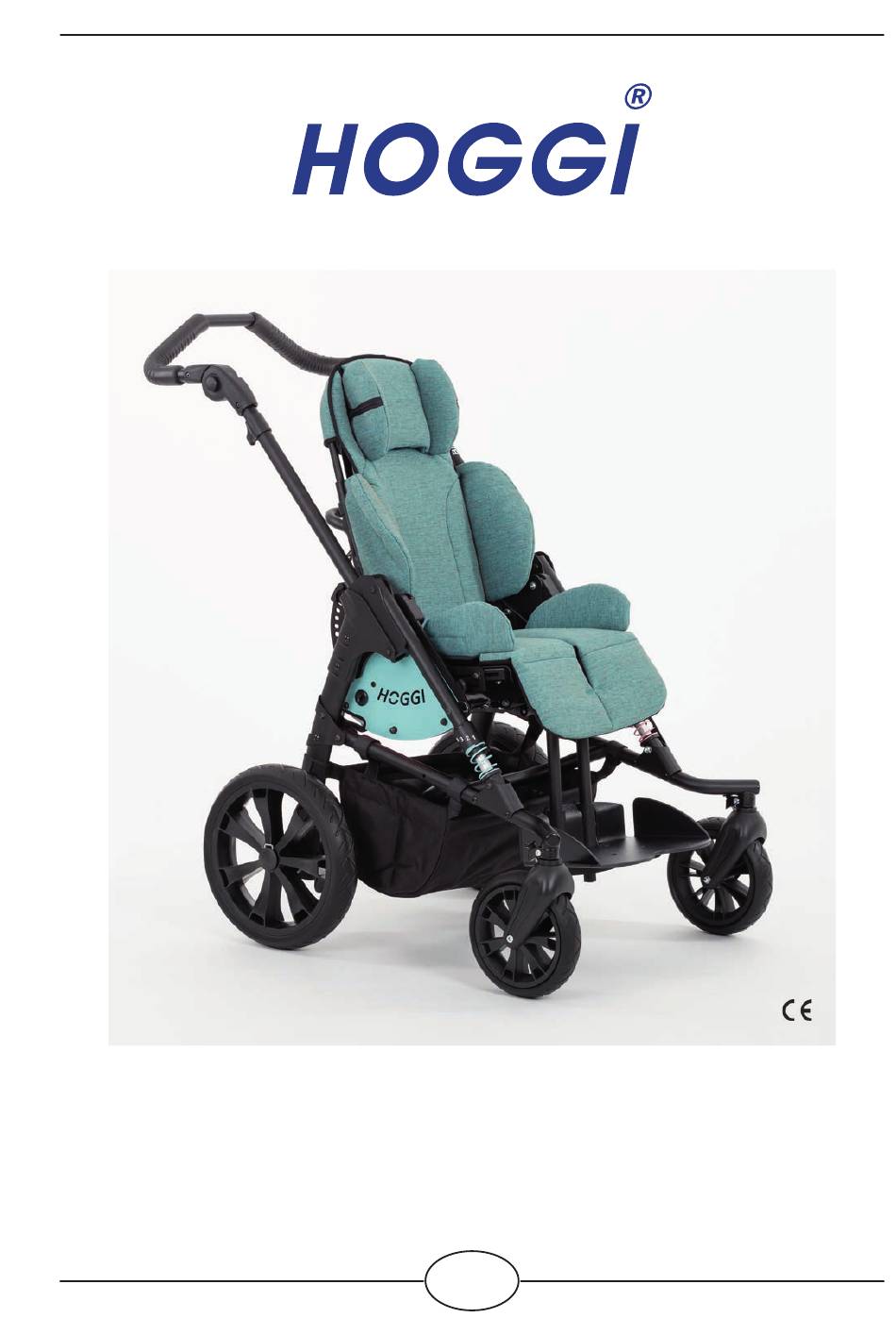

  • Page 1 Partnerschaft für mobile Kinder BINGO Evolution Service instructions...

  • Page 2: Table Of Contents

    BINGO Evolution- Service and maintenance instructions Content Page Model identification & basic configuration 1.1 Model identification (label)_____________________________________________________ 4 1.2 Basic configuration __________________________________________________________ 4 Overview BINGO Evolution _____________________________________________________5-12 Common information ___________________________________________________________ 14 3.1 Preface __________________________________________________________________ 14 3.2 Application________________________________________________________________ 14 3.3 Declaration of conformity_____________________________________________________ 14 3.4 Terms of warranty __________________________________________________________ 14...
  • Page 3 7.11 Tie down kit _______________________________________________________________ 31 7.12 Swivel lock________________________________________________________________ 32 7.13 Seat base ________________________________________________________________ 32 7.14 Seating surface ____________________________________________________________ 32 7.15 Thigh supports_____________________________________________________________ 32 7.16 Hip supports ______________________________________________________________ 33 7.17 Lateral supports____________________________________________________________ 33 7.18 Back base ______________________________________________________________33-34 7.19 Back insert________________________________________________________________ 34 7.20 Individual upholstery system __________________________________________________ 35 7.21 Footrest hanger ____________________________________________________________ 35 7.22 Footrest holder __________________________________________________________35-36...

  • Page 4: Model Identification (Label)

    1 Model identification 1.1 Model identification (label) The BINGO Evolution mobility base label is is mounted on the inside of the left side strut and under the seat panel. Colour code 3234-1000-052 Article number BINGO Evolution Hoggi GmbH Straßengestell Gr. 2 Eulerstr.

  • Page 5: Overview Bingo Evolution

    2 Overview BINGO Evolution 2.1 Mobility base, swiveling...
  • Page 6 2.2 Mobility base, rigid...
  • Page 7 2.3 Mobility base for respiratory equipment...
  • Page 8 2.4 Mobility base Trike...
  • Page 9 2.5 Mobility base mini...
  • Page 10 2.6 Mobility base Cross...
  • Page 11 2.7 Seat unit...
  • Page 12 2.8 Seat unit mini...

  • Page 13: Common Information

    3 Common Information 3.1 Preface Thank you for selecting the BINGO Evolution rehab pushchair. We have designed this high-quality product to make your life safer and easier, and we’ve included this manual to help you use and care for it.

  • Page 14: Customer Service

    3.6 Service and repairs Service and repairs on the BINGO Evolution rehab pushchair may only be carried out by your specialist dealer. In case of problems, contact your responsible specialist dealer. In case of repairs, you will only receive original spare parts there.

  • Page 15: Safety Instructions

    Familiarize yourself with the functions of the product. If you are not familiar with the product, study the user manual before testing. If no user mauals are available, request them from us. You can also download documents from our homepage at: www.hoggi.de Attention! Study the service and maintenance instructions before starting work.

  • Page 16: Required Tools And Maintenance Schedule

    Required tools and maintenance schedule 5.1 Required tools The following list shows the tools and utilities required for service. Reversible ratchet and sockets Torque wrench Wrench size 8-24 Measuring ranges 5-50 Nm Size 6 - 24 Hexagon wrench Screwdriver Phillips screwdriver Gr.

  • Page 17: Maintenance Schedule

    Customer: 5.2 Maintenance BINGO Evolution Mobility base ..........schedule Area  Check (Checklist to tick off Pos. Serial number: Function / Setting Screw connections none (siehe Bedienungsanleitung) damage / defor- ........mation Mobility base Front frame (Variants) Front struts - Suspension...
  • Page 18 Customer: 5.2 Maintenance BINGO Evolution ..........Seat unit schedule Area  Check (Checklist to tick off Pos. Serial number: Function / Setting Screw connections none (siehe Bedienungsanleitung) damage / defor- ........mation Seat unit Seat base - Seat angle adjustment - Seat lock...

  • Page 19: Seat Settings

    However, with the adapter shown, the seat height can be increased by 10 cm. Lower leg lenght BINGO Evolution can basically be equipped with 2 different footrest hanger. Shown here is the footrest hanger 90° The footrest hanger can be swiveled up via the tension catches, but not fixed in place.

  • Page 20: Footrest Angle

    If the procedure is reversed the angle decreases accordingly. 6.3 Seat width The seat width of the BINGO Evolution can be adjusted by moving the the thigh - or the hip supports. The following adjustment ranges result for the four sizes:...

  • Page 21: Seat Depth

    6.4 Seat depth Bingo Evolution offers an enormous ability to grow with the seat depth. The following adjustment ranges result for the four sizes: Size mini: 12 - 27 cm Size 1: 16 - 34 cm Size 2: 22 - 40 cm...

  • Page 22: Thorax Width

    By opening the indicated wing nut screws, the upper back section can be pulled out or pushed in opposite the base. This applies to size 1, 2 and 2 XL Back height low Back telescoped From a backrest height of 66 cm, the backrest bar must be set to the lower position for stability reasons.

  • Page 23: Headrest Width

    Size 1 12-22 cm Size 2 and 2XL 17-27 cm 6.7 Width headrests BINGO Evolution can be equipped with the standard headrests, as well as with a low form Low form: Provides a total adjustment range of 2 cm by sliding in 1 cm slotted holes in the pad support.

  • Page 24: Seat Angle Adjustment

    6.8 Seat angle adjustment The seat angle of the BINGO Evolution can be adjusted between 0° and 45° in 12 positions of 3.5° each. With the help of the adjustment lever on the back can be adjusted desi- red seating position.

  • Page 25: Maintenance Schedule

    7. Maintenance schedule 7.1 Chassis Steering wheel frame - Check for general damage, bending - Check of the screw connections to the rear axle, rear frame and front strut Rigid frame - Check for general damage, bending - Check of the screw connections to the rear axle, rear frame and front strut Steering wheel frame for respiratory equipment - Check for general damage, bending...

  • Page 26: Front Strut

    Frame Cross - Check for general damage, bending - Check of the screw connections to the rear axle, rear frame and front strut 7.2 Front strut - Check for general damage, breakage of the spring - Adjustment of the spring strength - Suspension - Check of the bolting to the frame and to the rear frame joint - Check of the bolting to the front frame, to the rear frame joint and seat...

  • Page 27: Push Bar

    7.5 Push bar - Check for general damage - Folding in via the release button - Angle adjustment of the upper part of the push bar via the ratchet joints - Latching of the push bail in unfolded state - Locking of the push bar in the unfolded state, bolt must release from the lock when folded and lock in the rear frame joint when unfolded.

  • Page 28: Front Wheels

    7.7 Front wheels rigid - Check for general damage - Check of the tread or profile (cracks, heavy wear) - impurities - Check of the air pressure of pneumatic tires swiveling - Plastic or aluminum steering fork - Swiveling of the wheel forks - Fluttering of the wheels (steering fork damping installed?) - Check for general damage - Check of the tread or profile (cracks, heavy wear)

  • Page 29: Rear Wheels

    - Check for general damage - Fastening points ok - Can the bag be folded without problems 7.10 Braking system BINGO Evolution can be equipped with 3 brake variants! Parking brake: - Basic configuration - Not in combination with drum brake wheels...

  • Page 30: Tie Down Kit

    Wheel with aluminum brake disc - Check of the holes (knocked out, broken bars) - Impurities Drum brake - Check for general damage - Check of the brake levers - Check of the red locking lever - Check of the Bowden cable - Check of the screw connection of the brake levers to the push bar - Build-up of the brake pressure (readjustment of the adjusting screw) - Contamination of the brake shoes...

  • Page 31: Swivel Lock

    7.12 Swivel lock - Check for general damage - Check of the latch - Check of the straight run 7.13 Seat base - Check for general damage - Check of seat angle adjustment - Check of seat lock - Check of the screw connection to the cross strut 7.14 Seating surface - Check for general damage - Check of the seat depth adjustment...

  • Page 32: Hip Supports

    7.16 Hip supports - Check for general damage - Depth and width adjustment of the pad support - Check of the screw connections to the seat panel - Removing the hip support 7.17 Lateral supports - Check for general damage - Folding of the pads - Removal via click connection 7.18 Back base...

  • Page 33: Back Insert

    - Check for general damageg - Recline - Check of the screw connection to the seat base Back base BINGO Evolution OT Plus - Check for general damageg - Recline - Check of the screw connection to the seat base 7.19 Back insert...

  • Page 34: Individual Upholstery System

    7.20 Individual upholstery system - Check for general damage or impurities - Wear of the upholstered surfaces 7.21 Footrest hanger Footrest hanger fixed Functional test: - Check for general damage - Latching mechanism 90 - Distance to seat panel - Screw connection to seat frame Footrest hanger angle adjustable Functional test: - Check for general damage...

  • Page 35: Footrests

    Check of the screw connections: - Screw connection to the footrest with correct angle adjustment - Screws for lower leg length adjustment - Screwing of the swivel mechanism 7.23 Footrests Footrest standard with heel edge Functional test: - Check for general damage - Screw connection to the footrest support Footrest in boat form Functional test:...

  • Page 36: Thorax Pads

    Low version: - Check for general damage (Velcro fastening, seams, holes or strapped-through areas) - Check for impurities - Insertion pad - Function of the width adjustment via the pad support 7.25 Thorax pads - Check for general damage - Height and angle adjustment via wing nut on the rear side - Angle adjustment of the pelotte carrier from the front 7.26 Belt fixations Lap belt...

  • Page 37: Abduction Block

    Five-point harness Functional test: - Check for general damage - Check of the fastener - Check of the screw connection of the brackets Groin strap Functional test: - Check for general damage - Check of the fastener - Check of the screw connection of the brackets Fixation jacket Functional test: - Check for general damage...

  • Page 38: Grab Rail

    7.28 Grab rail Functional test: - Check for general damage - Damage to the cover - Check of the tripod springs and the anchoring in the retainer for accessories 7.29 Therapy tray Standard Functional test: - Check for general damage - Damage of angle adjustment and depth adjustment - Check of the tripod springs and the anchoring in the retainer for accessories...

  • Page 39: Canopy

    Functional test: - Check for general damage - Folding and unfolding of the canopy - Removal via canopy adapter - Checking the screw connections of the adapter to the back bar or to the back panel on BINGO Evolution mini...

  • Page 40: Operating Life

    8. BINGO Evolution operating life: The expected operating life of the BINGO Evolution is 5 years, depending on the intensity of use, care as well as maintenance. We recommend an annual inspection by the authorized specialist dealer. In case of malfunctions or defects of the wheelchair, it must be immediately handed over to the medical supply store or the specialist dealer.
  • Page 41 9. Speficications Size 2 Size 2 XL 230 - 350 mm 230 - 350 mm Seat width 220 - 400 mm 300 - 450 mm Seat depth Tilt of seat unit Seat unit in driving direction 45° 45° Seat unit against driving direction 45°...
  • Page 42 HOGGI GmbH Eulerstraße 27 • 56235 Ransbach-Baumbach • Deutschland Fon: (+49) 2623 / 92 499-0 • Fax: (+49) 2623 / 92 499-99 E-mail: info@hoggi.de • www.hoggi.de...
