Summary of Contents for Hoggi ZIP

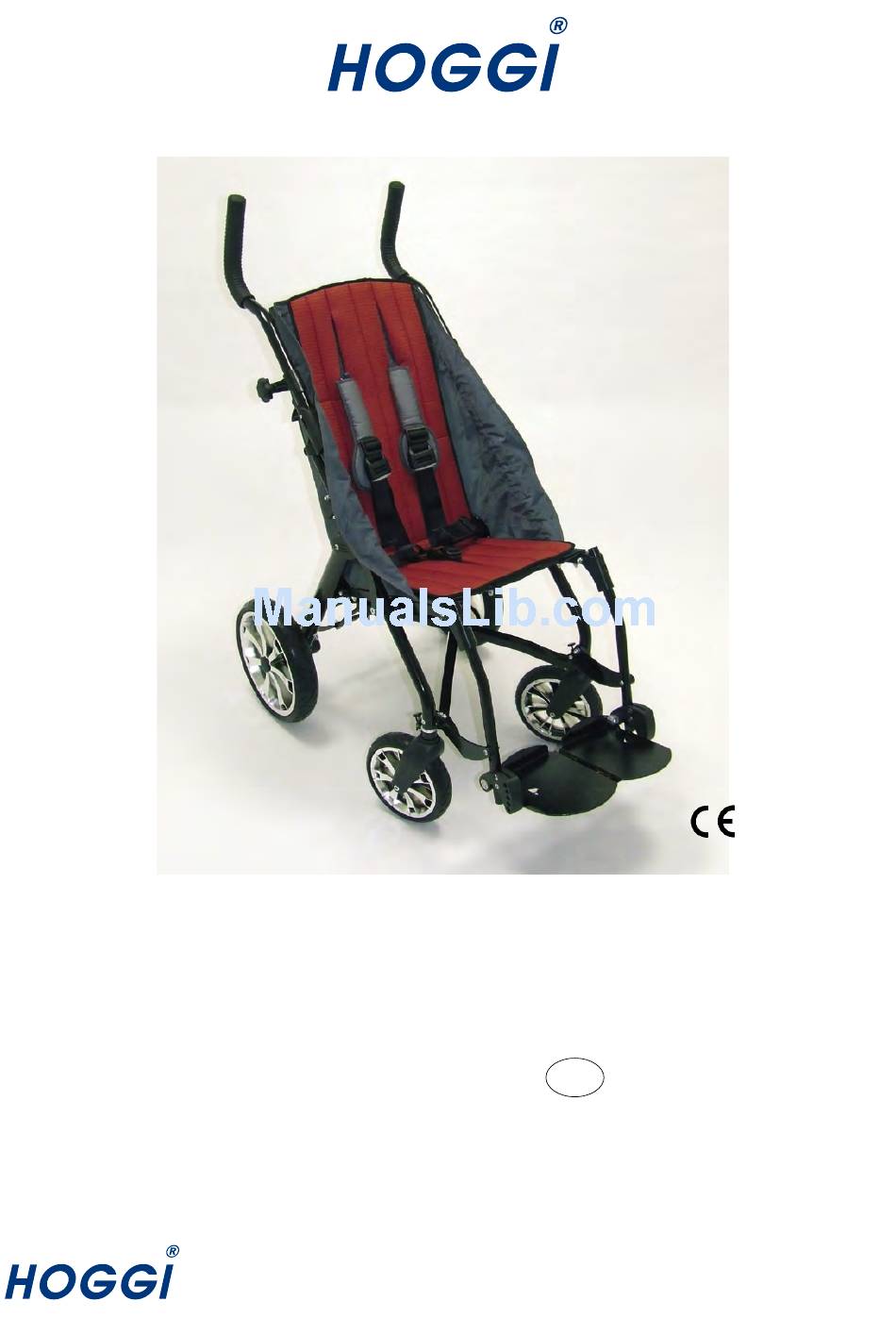

- Page 1 ZIP Rehab Buggy user manual GB/US partnering together to mobilize kids...
-
Page 2: Table Of Contents
® User Manual for ZIP Rehab-Buggy Contents Page Common Information Preface ___________________________________________________________________ 2 Application _________________________________________________________________ 2 Declaration of conformity ______________________________________________________ 2 Terms of warranty ___________________________________________________________ 2 Servicing and repairs _________________________________________________________ 2 Safety Instructions ______________________________________________________________ 3 Meaning of symbols _________________________________________________________ 3... -
Page 3: Common Information Preface
Service and repairs on the ZIP Rehab Buggy should only be carried out by authorized HOGGI dealers. ® Should any problems arise, please contact the dealer who supplied your ZIP Rehab Buggy. Authorized dealers only fit original HOGGI spare For repair and service, the following tools are required: Allen wrench, sizes 4 mm, 5 mm and 6 mm;... -
Page 4: Safety Instructions
HOGGI dealer. Strap your child at any time in the Rehab Buggy. HOGGI points out that any use beside the typical use can be dangerous. The Rehab Buggy is not suitable for jogging, running, skating or similar activities. Swivelling front wheels tend to wobble at higher speed which can cause a sudden stop and tip over of the Rehab Buggy. - Page 5 The air pressure should be at least 2 bar (200 kPa resp. 29 PSI). ® The ZIP Rehab Buggy should be checked for correct function before every use. Please keep packaging material away from children. Plastic packaging presents the danger of suffocation.
- Page 6 “Tie down Kit” (article 3210-7300) as well as appropriate restraint systems are used. ® Whenever you change any settings on the ZIP Rehab Buggy make sure that you firmly tighten any screws that have been loosened.
-
Page 7: Delivery And Preparing For Use
3 Delivery and Preparing for Use The original package contains the following components: • Rehab Buggy, folded; • instructions for use and special tools as required; • accessories as ordered. Carefully remove the transport safety items and packaging material. To unfold the Rehab Buggy please proceed as follows: •... - Page 8 • Push down on the folding lever on the backrest until detent lug. • Fold the footrest forward. • Pull the release belt as shown towards the edge of the footrest in order to make lock pins move towards the inside. •...
-
Page 9: Adjusting And Adaptation Possibilities
After slight opening of the star handles on both sides the backrest can be adjusted to desired angle. Tighten star handles afterwards. ® Whenever you change any settings on the ZIP Rehab Buggy make sure that you firmly tighten any screws that have been loosened. - Page 10 For that purpose the entire footrest must be drawn off from the footrest adapter. The right clamping device must be exchanged with the left clamping device. ® Whenever you change any settings on the ZIP Rehab Buggy make sure that you firmly tighten any screws that have been loosened.
-
Page 11: Footrest Angle Adjustment
® Rehab Buggy size 1: 30 cm or 35 cm ® Whenever you change any settings on the ZIP Rehab Buggy make sure that you firmly tighten any screws that have been loosened. 4.6 Detaching wheels with quick release In order to achieve a most compact folding package the rear wheels of all models are detachable by quick release hubs. -
Page 12: Accessories
After loosening the clamping screw the track can be adjusted with engaged swivel lock. 5.2 Attendant brake ® The ZIP Rehab Buggy can be fitted with an attendant brake. The brake mechanism can be operated with two independent brake lever. -
Page 13: Tie Down Kit
5.3 tie down kit ® Your Rehab Buggy has been tested successfully (Crashtest). Using our tie down kit (article 3210-7300) and the application of ® adequate restraint systems your Rehab Buggy is approved for the application in vans for disabled. For transportation the tie down belt will be attached to the floor pan and the restraint system (lap belt, three-point belt) will be affixed to the child (also see chapter 8 Transport). -
Page 14: Lap Belt
Attach the contoured seat cushion with the nylon seat cover with the Velcro fasteners. The seat cushion has to be removed before folding the rehab-buggy. It cannot be used in combination with a five-point harness. 5.7 lap belt On each end of the lap belt you can find pre mounted triglides which are passed by the belt only once. - Page 15 There are several holes on the seat covering in various depths. Fix the buckle at the end of the (middle)-belt in the desired position. Start the mounting below with the lens head screw M5x14, and fix it above with a washer and the selfsecuring M5 cap nut. The position should be closest to the body but not under the bottom.
-
Page 16: Ankle Huger
5.9 ankle hugger Ankle huggers allow a comfortable fixation of the foot joints. They are fixed to anchors on the foot plate. The heel should be placed against the heel plate of the footrest. The belts are opened/closed and adjusted with velcro straps. 5.10 Grap rail with upholstery ( Push the Grab rail as depicted into the adapter at the end of the seat rail. -
Page 17: Rain Cape
Before folding the rehab-buggy the winter warmer has to be remo- ved. 5.13 Rain cape ( With the zip-fastener open pull the rain cape over the child’s head, then unfold the upper end over the backrest and the lower end around the footrest. -
Page 18: Buggy-Board
Continue by interfolding the Rehab-Buggy as described in chapter 3. 5.15 Buggy-Board ( ® For the transportation of a second child the ZIP Rehab Buggy can be equipped with a detachable Buggy-Board. The adapters have to be mounted to the rear frame, above the rear wheels as shown in the picture. -
Page 19: Using Zip ® Rehab Buggy For Bus Transport
Air pressure (indicated on the side wall of the tyre) Visual inspection of wearing parts such as wheels and bearings Contamination on bearings Should any defects become obvious, please contact your authorized HOGGI dealer to eliminate them. ® We also recommend that you have your ZIP Rehab Buggy serviced by your authorized dealer every twelve months. -
Page 20: Technical Data
8 Technical data Dimensions cm (inches) and weights kg size 1 Seat depth 30 cm / 35 cm (11.8 / 13.8) Seat width 35 cm (13.8) Backrest height „standard“ 60 cm (23.6) Backrest height „long“ 66 cm (25.6) Lower leg length 20 - 39 cm (7.9 - 15.3) Permanent Tilt in space 18°... - Page 21 Hersteller/Manufacturer: Hoggi GmbH Taunusstrasse 17 56235 Ransbach-Baumbach GERMANY Fon: (+49) 26 23 / 92 499-0 · Fax: (+49) 26 23 / 92 499-99 e-mail: info@hoggi.de · Internet: http://www.hoggi.de...
