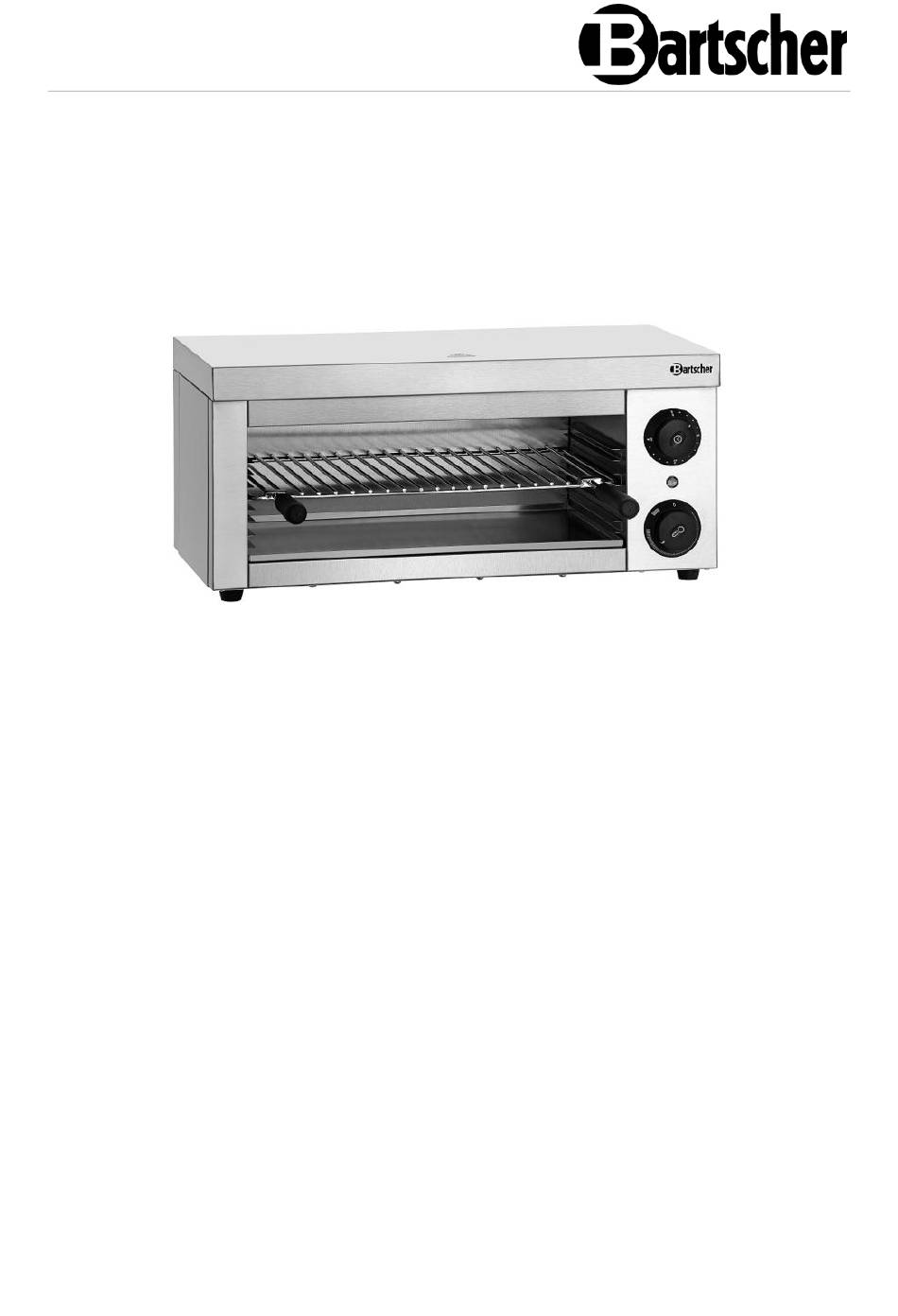

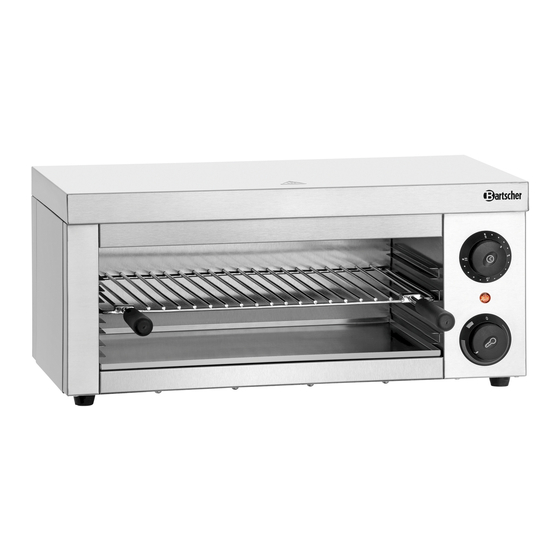

- Page 1 401-1Z-W A1515002...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2020-09-14...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 5 Unintended Use ..................5 General information ..................6 Liability and Warranty ................6 Copyright Protection ................6 Declaration of Conformity ................ 6 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hi nweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. Flammable Materials • Never subject the appliance to contact with high temperature sources, e.g.: oven, furnace, open flame, heat generating devices, etc.
-
Page 7: Intended Use
Safety Operating Personnel • The appliance may only be operated by a qualified personnel and trained specialist personnel. Improper Use • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used when its technical condition is flawless and allows for safe operation. -
Page 8: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 9: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 10: Technical Data
Technical Data Technical Data Technical Specifications Name: Salamander 401-1Z-W A1515002 Art. No.: Material: Stainless steel Number of heating elements: Number of heating zones: Power supply: 4,4 kW / 400 V / 50 Hz Dimensions (W x D x H), in mm:... -
Page 11: List Of Components Of The Appliance
9. Feet (4 pcs) Functions of the Appliance Salamander 401-1Z-W with height-adjustable cooking grill is equipped with 1 heating zone, which may be activated with the use of time, setting it to 15 minutes. Between the time and the heating element, there is an energy controller connected (simmersat), with which you may indirectly change the heating output (temperature setting). -
Page 12: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. - Page 13 Installation and operation Wall-Mounting ATTENTION! • Wall mounting may be executed only on fire-proof walls. The appliance is ready for wall-mounting, as it features an attachments at the back. The distance between the attachments is 535 mm. 1. Prepare suitable mounting materials (studs, screws). They are not part of the delivery.
-
Page 14: Operation
Installation and operation Operation • Prior to the firs t operati on, cl ean the appli anc e and its equi pment acc ordi ng to i nstr ucti ons in section 6 'Cleaning'. Make sur e no water enters el ectric i nstallation and c onnecti on box. T hen thoroughl y dr y the appli anc e and the entire equi pm ent. •... - Page 15 Installation and operation Food Preparation WARNING! Risk of burns! The appliance and food containers heat up considerably during operation. To remove the food, always use dish-washing cloth or oven mitts that are resistant to high temperatures. The cooking grill heats up considerably during cooking. To remove or relocate the cooking grill during operation, always use the delivered handles.
-
Page 16: Cleaning
Cleaning During heating-up the orange heating-up indicator light is on. As soon as the set temperature is reached, the indicator light goes off. If the temperature in the appliance drops and radiator heater is switched on again by the energy controller, the heating-up indicator light lights up again. This process is repeated until the energy controller is rotated to '0' (OFF) position. -
Page 17: Cleaning
Cleaning • Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp or pointed implements may damage the appliance, and when in contact with live parts, they may cause electric shock. • For cleaning, do not use any scouring agents that contain solvents nor corrosive cleaning agents. -
Page 18: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche Problem Possible cause Solution Appliance is connected to The plug is not properly Remove the plug and the power supply, energy connected to the socket insert it properly in the socket controller set, but the appliance does not heat Safety fuse tripped Check the fuse, connect...
