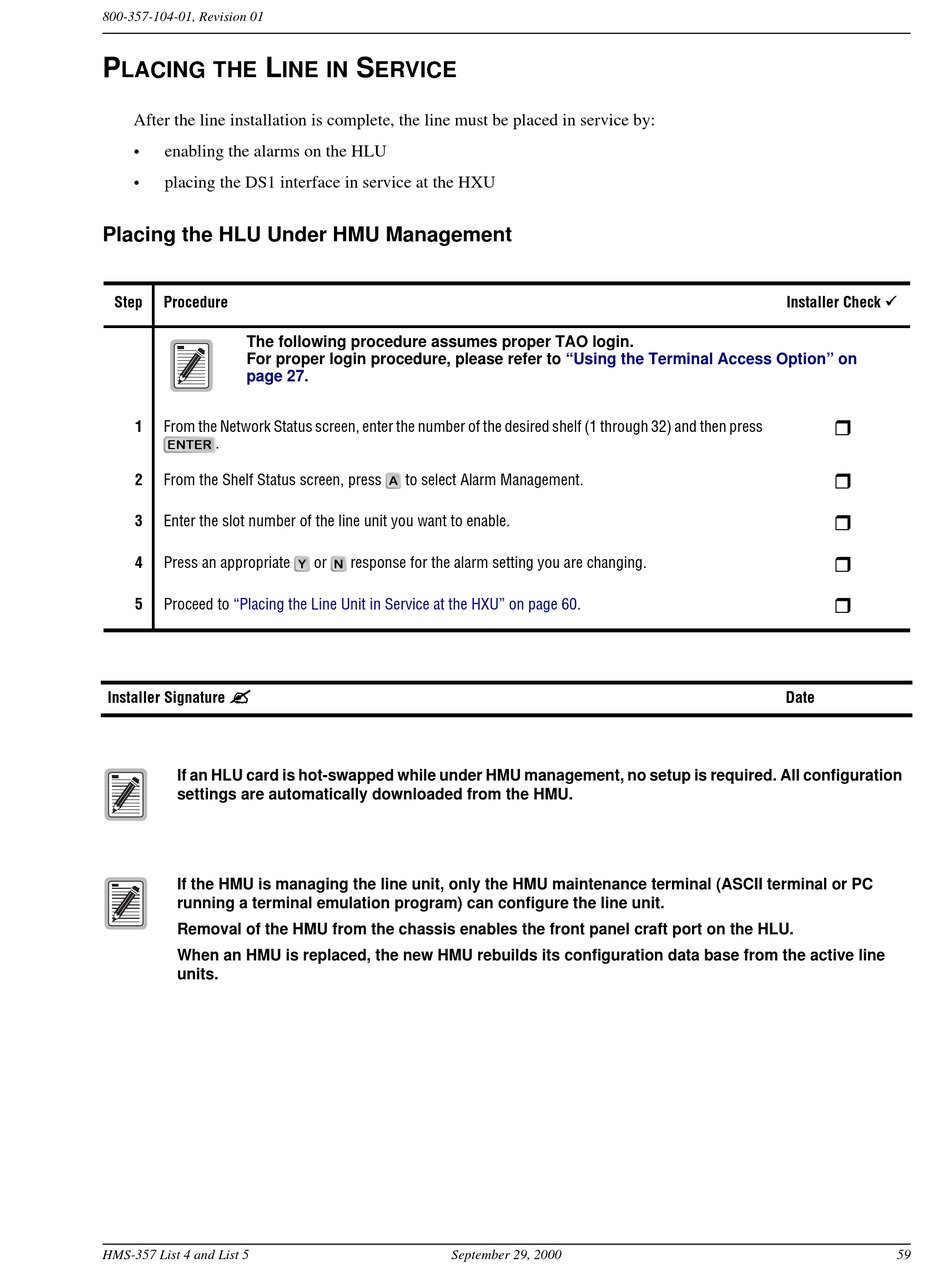

Placing The Line In Service; Placing The Hlu Under Hmu Management - ADC Soneplex Wideband System 3190 Installation And Verification Manual

800-357-104-01, Revision 01
P L
LACING THE INE IN
After the line installation is complete, the line must be placed in service by:
• enabling the alarms on the HLU
• placing the DS1 interface in service at the HXU

Placing the HLU Under HMU Management

Step Procedure
The following procedure assumes proper TAO login.
For proper login procedure, please refer to
page
1 From the Network Status screen, enter the number of the desired shelf (1 through 32) and then press
ENTER .
2 From the Shelf Status screen, press
3 Enter the slot number of the line unit you want to enable.
4 Press an appropriate
5 Proceed to "Placing the Line Unit in Service at the HXU" on page
? ? ? ?
Installer Signature
If an HLU card is hot-swapped while under HMU management, no setup is required. All configuration
settings are automatically downloaded from the HMU.
If the HMU is managing the line unit, only the HMU maintenance terminal (ASCII terminal or PC
running a terminal emulation program) can configure the line unit.
Removal of the HMU from the chassis enables the front panel craft port on the HLU.
When an HMU is replaced, the new HMU rebuilds its configuration data base from the active line
units.
HMS-357 List 4 and List 5
S
ERVICE
27.
A to select Alarm Management.
Y or N response for the alarm setting you are changing.
September 29, 2000
"Using the Terminal Access Option" on
60.
Installer Check ü ü ü ü
H
H
H
H
H
Date
59
