Installing the Device
2.4.2 Mounting the Device to a Panel
Removing the Device
To remove the device from a DIN rail, do the following:
1.
2.
3.
2.4.2 Mounting the Device to a Panel
For panel installations, the RUGGEDCOM RS900 can be equipped with panel adapters
pre-installed on the top and bottom of the chassis. The adapters allow the device to
be attached to a panel using screws.
To mount the device to a panel, do the following:
1.
10
Insert a flathead screwdriver into the slot of the sliding release and move it
down.
1
DIN Rail
1
DIN Rail Adapter
2

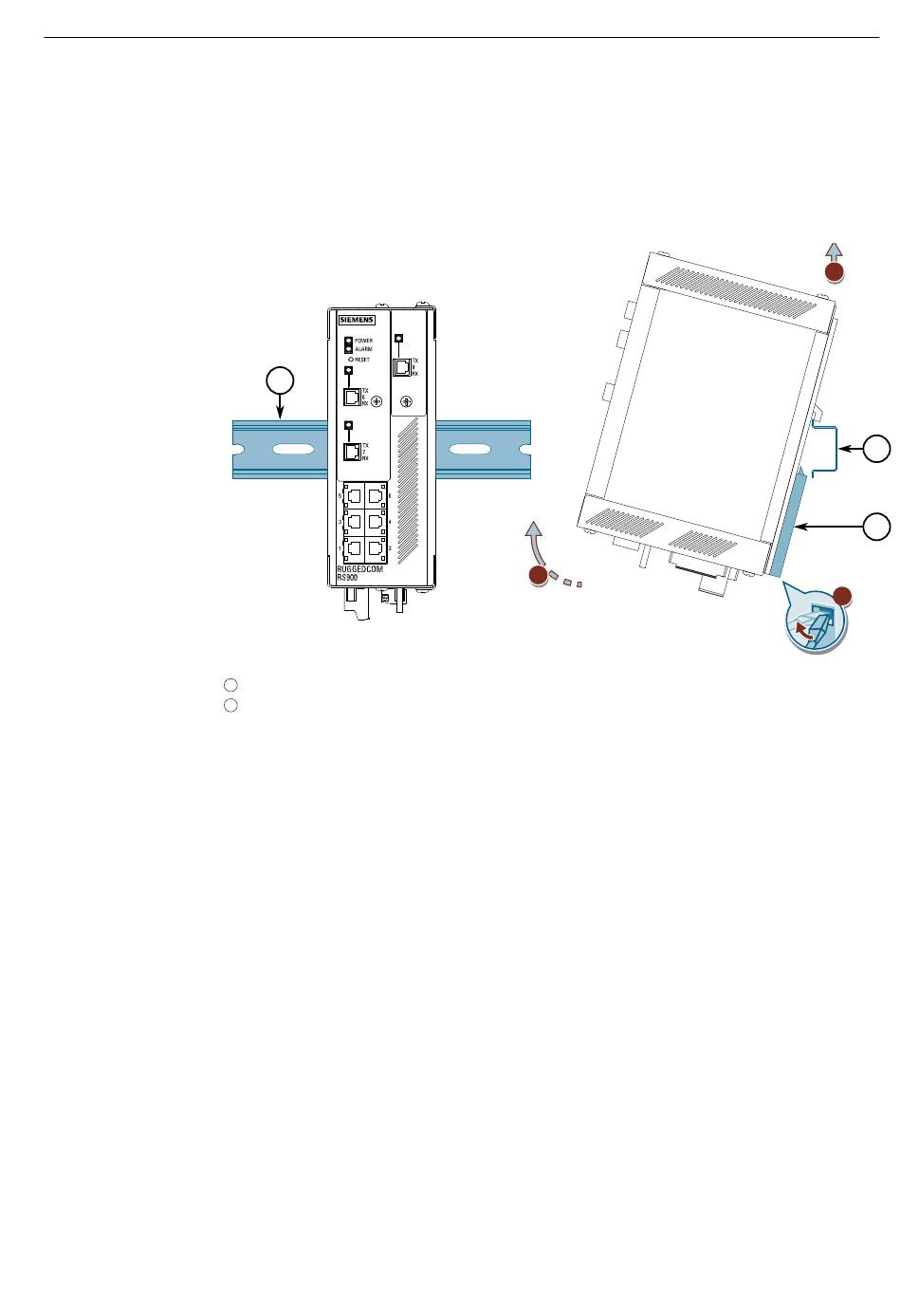

Figure 2.3 Removing the Device from a DIN Rail
Swing the bottom of the device away from the DIN rail.
Lift the device off the DIN rail.
Prepare mounting holes in the panel where the device is to be installed.
2
Installation Manual, 04/2022, C79000-G8976-1024-14
3
1
2
1
RUGGEDCOM RS900
