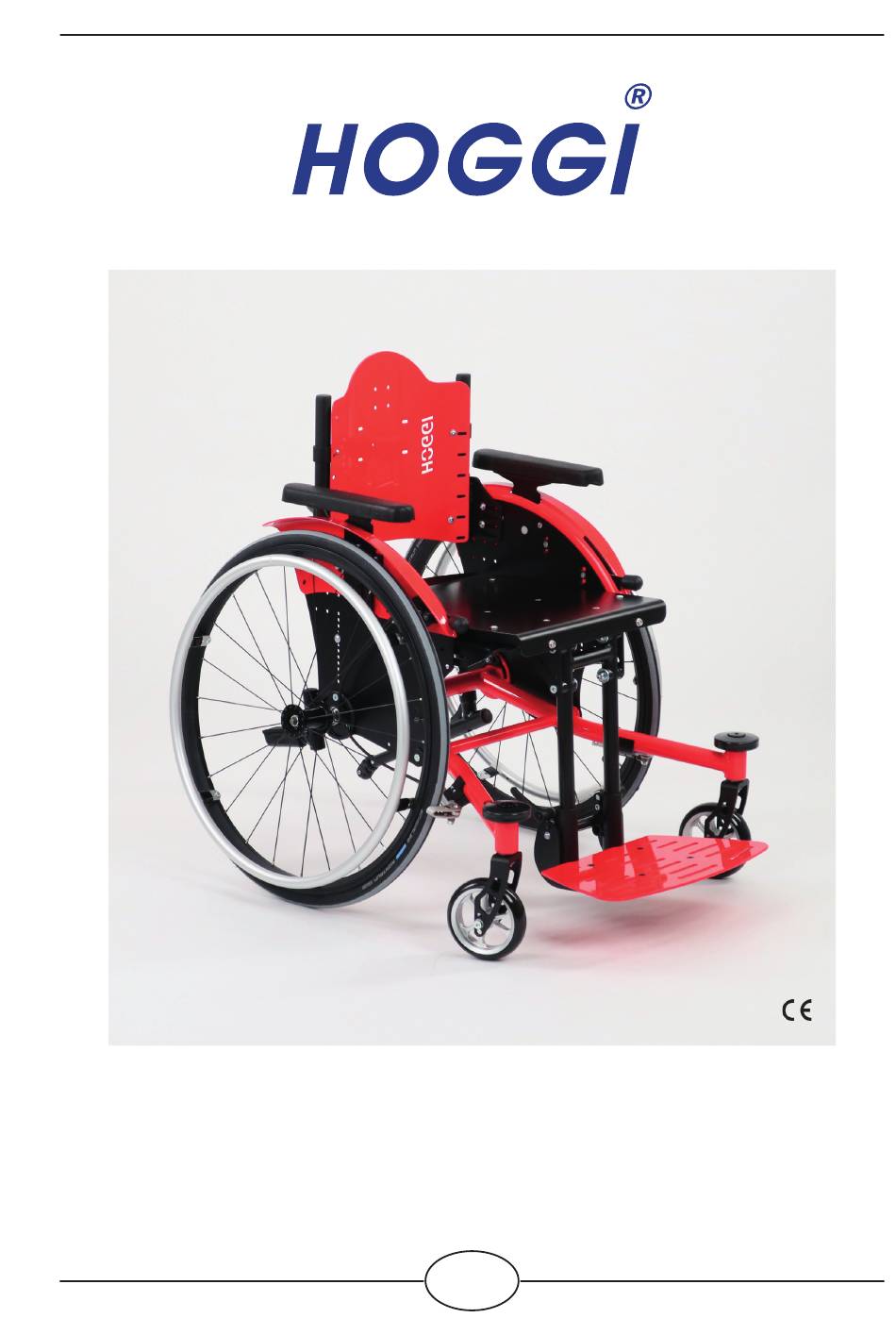

- Page 1 Partnerschaft für mobile Kinder CLEO Teen Service instructions...
-
Page 2: Table Of Contents
Serviceanleitung für Aktivrollstuhl CLEO Teen Model identification & basic configuration 1.1 Model identification (label)_____________________________________________________ 4 1.2 Basic configuration __________________________________________________________ 5 Overview CLEO Teen Overview_ _________________________________________________________________ 6 Common information 3.1 Preface ___________________________________________________________________ 7 3.2 Application _ ________________________________________________________________ 8 3.3 Declaration of conformity _ _____________________________________________________ 8 3.4 Terms of warranty ___________________________________________________________ 8 3.5 Customer service_ __________________________________________________________ 8 3.6 Service and repairs __________________________________________________________ 9... - Page 3 7.17 Therapy tray ______________________________________________________________ 30 7.18 Tie down kit _______________________________________________________________ 31 7.19 Abduction block ____________________________________________________________ 31 7.20 Belt fixations ______________________________________________________________ 31 Operating life CLEO Teen Operating life ____________________________________________________ 32 Specifications CLEO Teen Specifications _ ___________________________________________________ 32...
-
Page 4: Model Identification (Label)
1 Model identification 1.1 Model identification (label) (The label is attached to the axle tube) Colour code 3290-00SB-XXX Article number CLEO Teen Hoggi GmbH Aktivrollstuhl Eulerstr. 27 Size 56235 Ransbach-Baumbach MADE IN GERMANY Serial number max. load 75 kg CE label (01)04047349096062(21)202178999 3290-00SB-XXX Classification / Product name CLEO Teen Hoggi GmbH Aktivrollstuhl Eulerstr. 27 56235 Ransbach-Baumbach Date of manufacture MADE IN GERMANY max. -
Page 5: Basic Configuration
1.2 Basic configuration - Rigid frame active wheelchair in aluminium construction, powder-coated; seat depth grows with the user - 1 Size SW : 34 - 42 cm in 2 cm steps - Convertible to other seat widths - Front seat heights: 40 cm up to 53cm - Seat angle: approx. 0° to 12° in 3° steps - Seat panel on seat frame - Footrest hanger 90° inclusive ABS-footrest - Backrest angle: -10° up to +10° - Seat- and back panel, or adjustable back cover - Clothes cover - HOGGI light rear wheels inclusive push rims (removable via quick-release axle) - HOGGI light wheel locks - Camber 3°, 6° or 9° - Load capacity: 75 kg... -
Page 6: Overview
CLEO Teen Overview 1. Back base „rigid 2. Base plates CLEO Teen 3. Seat panel 4. Rear wheels 5. Footrest hanger with footrest 6. Frame 7. Steering fork with steering wheels... -
Page 7: Common Information
3 Common Information 3.1 Preface Thank you for selecting the CLEO Teen wheechair. We have designed this high-quality product to make your life safer and easier, and we’ve included this manual to help you use and care for it. Please read the following instructions to make sure you use this product as recommended. If you have any further questions, or if you have any problems, please contact your health- care provider. We hope that CLEO Teen meets your expectations. We reserve technical modifi cations regarding the specifi ed model in this manual. Before using the wheechair the fi rst time, this manual has to be read and understood by patient and support personnel in oder to ensure a safe handling with the wheelchair. Regular maintenance is important - it increases safety and prolongs the life of the product. Every rehab product should be checked and serviced once a year. However, it is recommended to check, readjust and, if necessary, service products with a high frequency of use, with users in growth or users with a changing clinical picture at 6-month intervals. Only original spare parts should be used for all service and maintenance work. The service and maintenance work described here should only be carried out by trained specialist personnel and not by the user of the aid. These service and maintenance instructions refer to the respective spare parts catalogs and operating instructions of the products described. Please use all documents together. Use the maintenance schedule (Chapter 4.2, Checklist to tick off) as a copy template. Retain completed maintenance schedules and provide a copy to the customer. CLEO Teen User manual ------------------- CLEO Teen Spare parts catalog -------------------... -
Page 8: Application
3.2 Application CLEO Teen wheelchair is designed solely for individual indoor and outdoor use by childern and adolescents who are unable to walk or who have a walking impediment, and can be operated by the patient or by another person. Assistance may be required due to: - Paralysis (paraplegia / tetraplegia or tetraparesis) - Loss of limbs (dysmelia/lower limb amputation) - Infantile/spastic cerebral palsy - Spina Bifida - Muscle and nerve disorders - Osteogenesis Imperfecta - Poliomyeliti - There are no known contraindications when used as directed. The CLEO Teen wheelchair is able to be used for further service. For further service the product has to be cleaned and sanitised efficiently. Afterwards the product has to be checked concerning condition, wearout and damage by an authorised technician. All damaged and inapropptiate parts need to be changed. Some components can be used again, e.g. Rear wheels, steering wheels or push handles. Please see also the service manual for detailled information. 3.3 Declaration of Conformity HOGGI GmbH as manufacturer declares under sole responsibility that the CLEO active wheelchair meets the general safety and performance requirements to Annex I of the Regulation (EU) 2017/745 of the European Parliament and of the Council. Applicable harmonized standards have been applied. CLEO meets the requirements of ISO 7176-8, DIN EN ISO 12182 and DIN EN ISO 12183. 3.4 Terms of Warranty Warranty applies only when the product is used according to the specified conditions and for the intended purposes, following all manufacturer’s recommendations.The manufacturer is not responsible for damages caused by components and spare parts not approved by the manufacturer. See also § 8 of terms and conditions on:... -
Page 9: Service And Repairs
3.6 Service and repairs Service and repairs on the CLEO Teen wheelchair may only be carried out by your spe- cialist dealer. In case of problems, contact your responsible specialist dealer. In case of repairs, you will only receive original spare parts there. Spare parts and replacement units are available during the entire service life of the pro- duct, but only for a maximum of 2 years after the sale of the last product in this series. The wheelchair is custom made for the first time user. Therefore, no replacement wheel- chair is available in the initial configuration. In order to ensure a correct spare parts delive- ry the serial no. of your wheelchair is required. We are happy to help you find a dealer near you. You can reach us at: info@hoggi.de 3.7 Packing and shipping instructions If CLEO Teen has to be sent back to the manufacturer for repair or exchange the product must be thoroughly cleaned/disinfected beforehand and put in a hygienically safe condition. Packaging is done by wrapping the product in a clean film, ideally with air cushions and the subsequent use of a sufficiently large cardboard box, so that no transport damage can occur. -
Page 10: Safety Instructions
4 Safety instructions 4.1 Meaning of symbols Caution! Warning of possible danger of accident and injury. Warning of possible technical damage. Information! About use of product. Information! For service-personnel. Attention! Read manual before use! Common safety instructions For all maintenance and repair work, you should generally observe a few points: Attention! Familiarize yourself with the functions of the product. If you are not familiar with the product, study the user manual before testing. If no user manuals are available, request them from us. You can also download documents from our homepage at: www.hoggi.de Attention! Study the service and maintenance instructions before starting work. Attention! Use suitable tools (see page 4 ff.). Attention! Wear suitable clothing and, if necessary, gloves and protective goggles. Attention! Secure the product from tipping over or falling down, e.g. from the workbench. Attention! Clean / disinfect the product before starting the test. If necessary, observe the instructions in the user manual and product-specific test instructions. Note! Screws and nuts with thread locking are used for a large number of screw connections. If you have to open such screw connections, replace the respective nut or screw with one with new thread locking. If new nuts or bolts with thread locking are not available, use liquid thread locking compound with medium strength (e.g. Loctite 241 or Euro Lock A24.20). -
Page 11: Required Tools And Maintenance Schedule
5 Required tools and maintenance schedule 5.1 Required tools The following list shows the tools and utilities required for service. Reversible ratchet and sockets Torque wrench Wrench size 8-24 Measuring ranges 5-50 Nm Size 6 - 24 Hexagon wrench Screwdriver Phillips screwdriver Gr. 3 - 6 Blade width 2.5 3.5 and 5.5 Size 2 Hammer approx. 300 g Carpet knife with sickle and Plastic hammer standard blade Side cutter Liquid thread locking Riveting pliers for rivets up to „medium strength 5 mm... -
Page 12: Maintenance Schedule
5.2 Checkliste Wartungsplan Customer: CLEO Teen Maintenance schedule .......... for regular inspection Active wheelchair Pos. Area Check (Checklist to tick off Serial number: Function / Setting none Screw connec- (see instruction manual) damage / defor- tions ........mation 1. Basic product Frame & base plates - Active degree settings - Seat depth/seat height/seat angle Back base - Recline - Active degree settings Seat and back unit - Backrest height, Seat unit settings Braking system - Brakes Push bar / Push handles - Height adjustment One hand push-handle - Angle adjustment of push handle - Dismount Wheel fork holder... - Page 13 Function / Setting none Screw connections (see instruction manual) damage / defor- mation 2. Accessories Fender - Height adjustment Anti tip and tip assist - Anti tip - Swivel away - Angle adjustment Footrest hanger - Lower leg length - Folding away the footrest - Footrest lock - Footrest angle Seat / back cushion - Cushion Spoke guard - Spoke guard Headrests - Height adjustment - Angle adjustment - Cushion Back rest extension - Height adjsutment - Cushion Therapy tray - Clamping unit Tie down kit - Bracket 2.10 Abduction block - Bracket - Swivel mechanism 2.11 Belt fixings: - Closures Lap belt, 4-point lap belt, ankle...
-
Page 14: Seat Settings
6. Seat settings 6.1 Seat height & seat angle The seat height and seat angle of CLEO Teen are adjusted via the hole matrix on the base plates. The corresponding holes are shown below. Support brackets form the basis for the seat frame, onto which the the seat panel is mounted. Support bracket The seat frame is screwed to the support brackets with 6 M6x35 mm carriage bolts. The support brackets are screwed to the base plate with M6x20 pan- head screws. - Page 15 Depending on the holes in which the support brackets are screwed, different seat heights and seat depths can be realised. This results in different seat heights and seat depths for the 24“ wheels: Cleo Teen 24“ Seat heights front CLEO Teen 24" Sitzhöhen vorn 3° 6° 40,5 40,5 40,5 40,5 41,0 41,0 41,0 41,0 41,5 41,0 41,0 41,0 41,5 41,5 42,0 42,0 42,5 42,5 41,5 41,5 41,5 41,5 42,0 42,0 42,0 42,0 42,5 42,0 42,0 42,0 42,5 42,5 43,0 43,0 43,5 43,5...
- Page 16 Für die 26“ Räder ergeben sich folgende Einstellungsmöglichkeiten Cleo Teen 26“ Seat heights front CLEO Teen 26" Sitzhöhen vorn 3° 6° 43,5 43,5 43,5 43,5 44,0 44,0 44,0 44,0 44,5 44,0 44,0 44,0 44,5 44,5 45,0 45,0 45,5 45,5 44,5 44,5 44,5 44,5 45,0 45,0 45,0 45,0 45,5 45,0 45,0 45,0 45,5 45,5 46,0 46,0 46,5 46,5 45,5 45,5 45,5 45,5 46,0 46,0 46,0 46,0 46,5 46,0 46,0 46,0 46,5 46,5 47,0 47,0 47,5 47,5 46,5 46,5 46,5 46,5 47,0 47,0 47,0 47,0 47,5 47,0 47,0 47,0 47,5 47,5 48,0 48,0 48,5 48,5 47,5 47,5 47,5 47,5 48,0 48,0 48,0 48,0 48,5 48,0 48,0 48,0 48,5 48,5 49,0 49,0 49,5 49,5...
-
Page 17: Seat Depth
6.2 Seat depth The seat depth on CLEO Teen can be adjusted in two ways. 1. loosen the marked screw connection on both sides of the base plate and of the base plate and select the desired seat depth by moving the the angle. Then tighten all the screw connections again. 11 cm adjustment space 2. The 6 marked screws under the seat plate can also be used to move the seat plate the seat plate can also be moved in relation to the support brackets. 6 cm adjustment range Total adjustment range for CLEO Teen 32 - 48 cm. 6.3 Back height CLEO Teen is equipped with either an adjustable back upholstery or a back panel. Basically, different back bases and back panels are available in heights of 20/25/30/35 cm. However, the back height can be can be adjusted after loosening the marked screw connections (both sides) by sliding the clamps with the back panel up and down. Another way to adjust the back height is to move the backrest base backrest base in relation to the base plates. The backrest height is measured at the horizontal area of the upper edge of the back opposite the seat surface! The adjustable back upholstery is attached to the back tubes accor- dingly. -
Page 18: Active Degree
The back height can be changed by means of individual push handles or telescopic tubes. If installed, the screw on the rear back tube must be opened. These provide 10 cm additional length (back height 20 cm only 5 cm possible for structural reasons). This results in the following adjustment range: - 20 up to 25 cm - 25 up to 35 cm - 30 up to 40 cm - 35 up to 45 cm The height can then be readjusted and additional Velcro strips added. 6.4 Active degree The active degree describes the ratio of the position of the backrest relative to the drive wheel axis. The further the backrest is set behind the the drive wheel axle, the more active CLEO can be driven. Conversely, a setting above, or in front of, the drive axle means a more stable driving position. Caution. Settings with a high degree of activity require an experienced driver and the use of an anti-tippers! The active degreeis set via the installation position of the back plate on the base plate. There are 3 different back positions to choose from. To move the back plate in relation to the base plates, the marked screws on the left and right must be loosened. -
Page 19: Backrest Angle
Illustration shows AD 1 ADHL = Active degree Hole line 1 2 3 Illustration shows AD 8 ADHL1 for active degree adjustment 1 to 2 ADHL2 for active degree adjustment 3 to 4 ADHL3 for active degree adjustment 5 to 8 6.5 Backrest angle If CLEO Teen is not equipped with the „angle-adjustable“ backrest, the backrest angle is adjusted by loosening the marked screw connection. The adjustment range is 20° in total. Back angle adjustment range 0° to +10° Back angle adjustment range 0° to -10° The „angle-adjustable“ backrest base is operated by a locking bolt on the back. 6° each hole position, total adjustment range 80° - 105°. -
Page 20: Footrest Angle And Lower Leg Length
6.6 Footrest angle and lower leg length The footrest angle is preset to 90°. The adjustment range is +- 10° (80° - 100°). The lower leg length is realised by moving the footrest bracket vertically on the tubes of the footrest hanger. After loosening the wing screws on the back, the appropriate length can be adjusted. Afterwards, retighten the screws securely! After loosening the four marked screw connections on the footrest bra- cket, the footrest can be adjusted in depth. This alters the location of the foot rest and, therefore, also the foot rest angle. The further the footrest is pulled out to the front, the greater the angle becomes. If the procedure is reversed, the angle decreases accordingly. 7. Maintenance schedule 7.1 Frame & base plates Functional test: - Check for general damage or deformation to the frame structure or base plate. Check of the screw connections: - Connection of lintel adapter and base plate - If applicable, screw connection for anti tipper or tip assist - Front connecting screw frame and base plate 7.2 Back base rigid Functional test: - Checking the appropriate seat settings - Check for general damage in the area of the back base... -
Page 21: Back Base
Check of the screw connections: - Connection between back base and base plate Back base „angle adjustable“ Functional test: - Checking the corresponding seat settings - Check for general damage in the area of the backrest base - Checking the adjustment mechanism (detent pin pull) - Angle adjustment - Foldable Check of the screw connections: - Connection between back base and base plate - Anchoring the stop bolt hoist 7.3 Seat and back unit Seat frame Functional test: - Correct seat adjustment - Checking for general damage and correct hold of the seat panel Check of the screw connections: - Connecting of the support brackets to the base plate - Fastening the seat plate to the support brackets - Riveting with existing seat cushion... -
Page 22: Braking System
Back panel Functional test: - Check for general damage and firm hold - Checking the correct adjustment Check of the screw connections: - Fastening the back panel to the clamps to the back frame 7.4 Braking system Brake HOGGI light Functional test: - Brake closure - Faultless operation - Visible damage Brake closed Brake opened Check of the screw connections: - Fixing the brake to the brake holder - Fastening the brake holder to the base plates... - Page 23 Integrated brake system Consisting of: - Fender with integrated brake system - Brake cable - Brake Functional test: - Operability of the brake lever and smooth glide - Good brake closure and contact pressure of the brake bracket - Correct positioning of the brake lever in relation to the wheel. 90° angle and 3-5 mm wheel protrusion - Check for general damage in the area of the fender and the rubber grip - Good brake closure and contact pressure of the brake bracket - Correct positioning of the brake lever in relation to the wheel. 90° angle and 3-5 mm wheel protrusion - Check for general damage in the area of the fender and the rubber grip Check of the screw connections: - Fastening the brake lever to the fender...
-
Page 24: Push Bar And Handles, One Hand Push-Handle
- Fastening the brake bracket to the brake bracket holder - Bowden cable correctly looped in the cable pulley Drum brake Functional test: - Build-up of brake pressure (readjustment at adjusting screw) - Checking the brake lever for general damage (locking lever, cracks) - Checking the Bowden cable (kinks or cracks) - Check the brake anchor and brake pads (contamination, wear) Check of the screw connections: - Connection brake anchor with adapter - Connection of brake anchor adapter with base plate - Bowden cable correctly hooked in - Screw connection of the brake handle to the handle unit 7.5 Push bar and handles, One hand push handle Push bar Functional test: - Attachment and removal - Clamping - Height adjustment - Height adjustment of the upper part by means of ratchet joints - Checking for general damage Push handles Functional test: - Attachment and removal - Clamping - Height adjustment - Straight alignment of the bars - Checking for general damage... -
Page 25: Wheel Fork Holder
One hand push handle Functional test: - Attachment and removal - Clamping - Height adjustment - Checking for general damage Check of the screw connections: - Fastening the handle holders to the base plate - Fastening the cross tube for stabilisation - Fastening the clamp to the back base 7.6 Wheel fork holder Functional test: - Swivelling of the wheel fork - Smooth running or fluttering -> Checking the alignment - Check for general damage to the forks Check of the screw connections: POS-NR. BENENNUNG BESCHREIBUNG MENGE Wheel fork 126,5x45x10 / 3x holes / 1281-0016 d=12 - Screw connection of the wheel axle 1205-0007-2 Lenkgabelachse - Bolting the steering fork axle to the frame 1051-0012 Federscheibe B12 verz DIN/ISO 137 1052-0012 Sechskantmutter verz DIN/ISO 4035 1043-0012... -
Page 26: Rear Wheels
7.8 Rear wheels Functional test: - Check for general damage - Checking the treads and air pressure - Checking the locking - Checking the running behaviour of the wheel, clearance, mechanics of the axle - Checking of the correct alignment of the camber adapter and its bolting Adjustment of the quick-release axle: - The axle should be fitted with a minimum of clearance. If too much movement is possible, the front nut is closed slightly clockwise with a 19 mm open-ended spanner in a clockwise direction, while the rear axle is secured with an 11 mm open-ended spanner - If the wheel is too tight, proceed in reverse order 7.9 Push rim Functional test: - Check for general damage - Severe scratching and sharp edges Checking the screw connections: - Attachment of handrim to rim, also at correct distance 7.10 Fender Standard fender Functional test: - Check for general damage - Screw connection to the base plate firmly tightened Fender with integrated armrests Functional test: - Height adjustment and detent of the armrest - Damage to the armrest cushion - Damage to the release button - Screw connection to base plate firmly tightened - Armrest holder firmly screwed to wheel cover... -
Page 27: Anti Tip And Tip Assist
Fender with integrated brake system and armrests Functional test: - Check for general damage - Height adjustment and latching of the armrest - Damage to the armrest cushion - Damage to the release button - Checking the brake unit (see 6.4 Brake system) - Screw connection to base plate firmly tightened - Armrest holder firmly screwed to wheel cover 7.11 Anti tip and tip assist Anti tip Functional test: - Check for general damage - Correct positioning (beyond the wheel radius, 2-3 cm above the floor) - Checking the swivel mechanism - Checking the length adjustment Tip assist Functional test: - Check for general damage - Good grip of the rubber cap Check of the screw connections: - Screw connection of the anti tipper or tip assist mounting bracket to the base plate - Screw connection of the anti tipper or the tip assist to the base plate. -
Page 28: Footrest Hanger
7.12 Footrest hanger Footrest hanger Functional test: - Check for general damage - Distance to the seat plate - Screw connection to the seat plate Footrest hanger angle adjustable Functional test: - Check for general damage - Swivel mechanism - Clamping lever for angle adjustment - Screw connection to the seat plate POS-NR. BENENNUNG BESCHREIBUNG MENGE 3201-2520 Federscheibe B8 verz DIN/ISO 1052-0008 137 B8 Footrest hanger 3201-2530 Lagerbuchse 3240-2911 Fußbrettträger Standard Scheibe A6,4 verz DIN/ISO 125 1051-0006 A6,4 Functional test: Linsenschraube m ISK verz 1029-0640... -
Page 29: Seat And Back Cushion
Footrest All variants are to be considered equally Check for general damage Heel plate - Check for general damage - Removal - Screw connection to the holder 7.13 Seat- and back cushion Standard seat cushion - Check for general damage (Velcro fastening, seams, holes or strapped-through areas) - Check for contamination Seat cushion contoured - Check for general damage (Velcro fastening, seams, holes or strapped-through areas) - Check for contamination Back cushion - Check for general damage (Velcro fastening, seams, holes or strapped-through areas) - Check for contamination... -
Page 30: Spoke Guards
7.14 Spoke guards Functional test: - Check for general damage (cracks) - Fastening clips complete or defective - Spoke guards suitable for wheel (drum brake or normal) 7.15 Headrest Headrest bracket Functional test: - Check for general damage - Checking the clamping ability - Checking the screw connection to the back plate Headrest with upholstery Functional test: - Adjustment possibilities - Check for general damage (wear, cracks, etc.) - Clamping ability Checking the screw connections: - Attachment of pad to support 7.16 Backrest extension Functional test: - Check for general damage - Height adjustment and clamping Checking the screw connections: - Connection of the bracket to the back plate 7.17 Therapy tray Functional test: - Attachability and fixation of the table on the armrests - Checking for general damage (cracks, sharp edges, etc.) Checking the screw connections: - Connection of the table top to the clamping units... - Page 31 7.18 Tie down kit (ISO 7176-19) Functional test: - Check for general damage (deformation, sharp edges) Check of the screw connections: - Connection of the front and rear fuse to the base plate 7.19 Abduction block Functional test: - Check for general damage - Pivoting and latching mechanism - Removal Check of the screw connections: - Bracket abduction block to the seat panel 7.20 Belt fixations Lap belt Functional test: - Check for general damage - Check of the fastener - Check of the screw connection of the bracket 4-point lap belt Functional test: - Check for general damage - Check of the fastener - Check of the screw connection of the bracket Ankle hugger Functional test: - Check for general damage - Check of the fastener - Check of the screw connection of the bracket to the footrest...
- Page 32 8. CLEO operating life: The expected operating life of the CLEO Teen is 6 years, depending on the intensity of use, care as well as maintenance. We recommend an annual inspection by the authorized specialist dealer. In case of malfunctions or defects of the wheelchair, it must be immediately handed over to the medical supply store or the specialist dealer. 9. Speficications Frame size 1 Seat width 340 - 420 mm Seat depth 320 - 480 mm Back height 200, 250, 300, 350 mm Seat height* (front) 400 - 530 mm Seat angle 0°/3°/6°/9°/12° Backrest angle 80° up to 105° Lower leg length 200 - 410 mm Footrest angle adjustable approx. +/- 10°...
- Page 35 HOGGI GmbH Eulerstraße 27 • 56235 Ransbach-Baumbach • Deutschland Telefon: (+49) 2623 / 92 499-0 • Telefax: (+49) 2623 / 92 499-99 E-mail: info@hoggi.de • www.hoggi.de...
