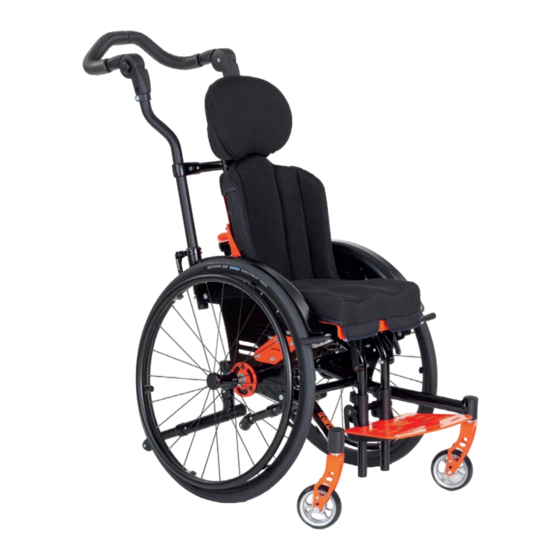

Hoggi CLEO Ti User Manual
  1. Manuals
  2. Brands
  3. Hoggi Manuals
  4. Wheelchair
  5. CLEO-Ti
  6. User manual

Hoggi CLEO Ti User Manual

Hide thumbs Also See for CLEO Ti:
Table of Contents

Advertisement

Quick Links

Download this manual
Partnerschaft für mobile Kinder
CLEO Ti
User manual
en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLEO Ti and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hoggi CLEO Ti

Summary of Contents for Hoggi CLEO Ti

  • Page 1 Partnerschaft für mobile Kinder CLEO Ti User manual...

  • Page 2: Table Of Contents

    3.2 Common safety instructions ____________________________________ 8-11 Delivery and preparing for use ______________________________________ 12 Adjusting and adaptation possibilities ________________________________ 18 5.1 Brake HOGGI light _____________________________________________ 18 5.2 Brake (including fender) _________________________________________ 18 5.3 Seat width ____________________________________________________ 19 5.4 Seat height, seat depth__________________________________________ 19 5.5 Seat angle____________________________________________________ 19...
  • Page 3 6.20 Tip-assist ____________________________________________________ 29 Transportation____________________________________________________ 30 7.1 In the trunk (luggage space) of a car________________________________ 30 7.2 Using CLEO Ti for bus transport___________________________________ 31 7.3 General ______________________________________________________ 31 7.4 Securing the wheelchair during bus transport_________________________ 31 7.5 Buckle up the wheelchair passenger _______________________________ 32 7.6 Transfer - getting into or out of the wheelchair ________________________ 35...

  • Page 4: Model Identification & Basic Configuration

    1 Model identification 1.1 Model identification (lable) (The label is placed on the axle tube) Colour code 327X-00SB-XXX Item number CLEO Ti Hoggi GmbH Kantelbarer Rollstuhl Eulerstr. 27 Size Rahmengröße X 56235 Ransbach-Baumbach MADE IN GERMANY Serial number max. load...

  • Page 5: Basic Configuration

    Environmental factors such as temperature and humidity can affect the wheelchair to damage. The manufacturer recommends that CLEO Ti be used without condensation at ambient temperatures between -20 ° C and + 40 ° C and a humidity of 5 to 100%.

  • Page 6: Common Information

    - Osteogenesis Imperfecta - Poliomyelitis The CLEO Ti wheelchair is able to be used for further service. For further service the product has to be cleaned and sanitised efficiently. Afterwards the product has to be checked concerning condition, wearout and damage by an authorised technician. All damaged and inapropptiate parts need to be changed.

  • Page 7: Terms Of Warranty

    See also § 8 of terms and conditions on: www.hoggi.de 2.5 Service and repairs Service and repairs on the CLEO Ti wheelchair should only be carried out by authorized HOGGI dealers. Should any problems arise, please contact the dealer who supplied your CLEO Ti.

  • Page 8: Safety Instructions

    Strap in your child at all times, when it is in the wheelchair. HOGGI points out, that any use beside the typical use can be dangerous. The wheelchair is not suitable for jogging, running, skating or similar activities. Swivelling front wheels tend to wobble at higher speed, which can cause a sudden stop and tip over of the wheelchair.
  • Page 9 To clear obstacles such as steps and curbs, tilt the wheelchair onto the rear wheels (pull it backwards to go up; to descend, slowly lower it forward). If only one attendant is available when ascending or descending stairs, an incorrectly set anti-tip (if mounted at all) can lead to severe falls.
  • Page 10 Be careful in case of extreme temperatures. The wheelchair can heat up significantly in the sun or in the sauna. In extreme cold, there is a risk of hypothermia. CLEO Ti is not suitable for use in the sauna. Slowing down from high speeds or when descending longer slopes tends to heat up the hands and fingers, especially if using aluminium push rings.
  • Page 11 - if brakes are closed, also the push-rims can be used for lifting). The HOGGI seat cushion (Trevira CS) and the contoured seat cushion (Trevira CS) as well as the HOGGI nylon backrest abd seat cover are flame resistant referred to the EN 1021-1 and EN 1021-2 norm.

  • Page 12: Delivery And Preparing For Use

    4 Delivery and preparing for use Your CLEO Ti wheelchair will normally be supplied completely mounted with removed rear wheels and if necessary removed anti-tippers. Delivery in board:: 730 mm (L) x 630 mm (W) x 630 mm (H)) Please check the condition of the product if the packaging shows damages.
  • Page 13 The active position is reached if the anti-tip is snapped audibly. Proceed in the same way for the second anti-tipper. The illustrations show an anti-tip in the „active“ position. The length of the tubes can be adjusted in three positions. The anti-tip should be adjusted that it is 2-3 cm above the ground.
  • Page 14 The illustration shows an anti-tip in the „inactive position. If your CLEO Ti wheelchair is supplied with a footrest from HOGGI, it is possible that it is folded up for the transport. • Move the footrest downwards as pictured. Don`t use the footrest to get in or out of the wheelchair!
  • Page 15 • Fasten the flap of the seat cushion to the back edge of the seat surface and fix it with the press button. If your CLEO Ti wheelchair is supplied with a contoured seat cushion from HOGGI, please proceed as follows: •...
  • Page 16 If your CLEO Ti wheelchair is supplied with a push-bar from HOGGI, please proceed as follows: • Place yourself behind or next to the wheelchair. • Open the cam lever on both sides. • Place the push-bar down into their locating brackets.
  • Page 17 • Close the cam lever on both sides. CAUTION! Press on the push-bar to ensure that it is securely located.

  • Page 18: Adjusting And Adaptation Possibilities

    The required air pressure is printed on the side of the tires. For rear wheels, it should be at least 6 bar. • To release the HOGGI light rake pull the brake lever upwards. 5.2 Wheel lock (wheel lock lever integrated in wheel guards) •...

  • Page 19: Seat Width

    The wheelchair will be built in accordance with the customer’s order. It is possible for the technician to modify the wheelchair with a different seat height or depth. 5.5 Seat angle The seat angle of the CLEO Ti can be adjusted between -10° and +45°.

  • Page 20: Backrest Height

    It is possible for the dealer to modify the backrest height. 5.7 Backrest angle The backrest angle of the CLEO Ti can be adjusted between -5° and +35°. The back angle is adjusted via a locking bolt on the rear.

  • Page 21: Height Adjustment Of The Push-Bar

    With the CLEO Ti, the active degree is achieved by moving the seat unit relative to the base plates in the respective slotted holes. By loosening the screw connections to the outer pressure plate, an adjustment range of 8 cm can then be ensured.

  • Page 22: Detaching Wheels With Quick-Release Axles

    5.11 Detaching the rear wheels with quick-release axles The rear wheels are removed by means of a quick-release mechanism. This reduces the volume of the wheelchair for transportation. • Grip the spokes close to the wheel hub and, with the thumb, press the release knob of the quick- release axle.

  • Page 23: Drum Brake

    Push rims can be mounted close to the rear wheel or a little further apart. A future modification is possible again. 5.14 Drum brakes CLEO Ti can be fitted with drum brakes. The drum brakes are activated from the push-bar or push-handle unit. Each drum brake gets operated by a brake lever.

  • Page 24: Accessories

    6 Accessories All accessories not installed by the manufacturer must be installed by trained technicians. The following notes on installation are for your information but should be performed by trained technicians. 6.1 Seat panel The wheelchair was built in accordance with the customer’s order. Functions and adjustments of the seat panel are described under „5.3 Seat width“...

  • Page 25: Footrest Depth / Footrest Angle

    6.5 Footrest depth / Footrest angle The foot rest can be folded upwards. To get in the wheelchair the footrest must be always folded upwards. The position of the foot rest can be adjusted by loosening the four screws on the foot rest bracket. This alters the location of the foot rest and, therefore, also the foot rest angle. The angle of the foot rest can be adjusted from approximately 80° to 100°. • Afterwards, retighten the screws securely. Whenever you change any settings on the wheelchair, make sure that you fi rmly tighten any screws that have been loosened. 6.6 Footrest bracket with interlocking The foot rest bracket can be supplied additionally with a locking device. When adjusting the foot rest angle, the locking device must also be adjusted, by loosening the screws on the right and the left side. By pulling the release ring, the foot rest can be folded upwards. When the foot rest is folded down, it will automatically lock into position. All four screws on the footrest must be fi xed. 6.7 ABS-foot-plate, black, fl at ABS-foot-plate to position the feet. 6.8 ABS-foot-plate, black, with heel stop ABS-foot-plate to position the feet with additional heel stop. The heel stop prevents the sliding of the feet.

  • Page 26: Aluminium Footrest, Flat

    6.12 Seat cushion and contoured seat cushion The HOGGI seat cushion is 3 cm thick and is foam filled. The cushion cover is washable and can be unzipped to remove the foam pad.

  • Page 27: Back Cushion

    6.13 Backrest cushion The HOGGI back cushion is 2,5 cm thick and is foam filled. The cushion cover is washable and can be unzipped to remove the foam pad. 6.14 Spoke guards The spoke guards prevent the child’s fingers from being trapped in the spokes.

  • Page 28: Therapy Tray

    • Press the white button as illustrated while choosing the desired height position of the armrest. The armrest snaps into place audibly. 6.17Therapy tray The therapy tray can be mounted with terminal strips on the armrests. The terminal strips are preset to the distance of the armrests. •...

  • Page 29: Ankle Hugger

    CLEO Ti is admitted for use as a seat in a motor vehicle.

  • Page 30: Transportation

    CLEO It is, however, possible to use CLEO Ti as a seat in a motor vehicle, if our “Tie down Kit” as well as appropriate restraint systems are used. Your CLEO Ti is admitted for use as a seat in a motor vehicle yet.

  • Page 31: Buckle Up The Wheelchair Passenger

    CLEO Ti may only be used forward in the direction of travel. The wheelchair was dynamically tested in the direction of travel and the dummy was there fastened with lap belt and shoulder strap. In order to reduce the risk of injury to vehicle occupants, tools that are not specifically designed for crash safety, should be removed and stored separately in the vehicle safely such.
  • Page 32 4) The shoulder belt has to run across to chest and shoulder. The belt may not but at the neck and may not be attached loose from the shoul- der. The lap belt and the shoulder belt must be flat and as tight as possible against the body and must not be damaged by components such as e.g.
  • Page 33 Attachment points, front Attachment points, rear according Attachment points, rear according to ISO 7176-19 to ISO 7176-19 for lap belt according to ISO 7176-19...

  • Page 34: Transfer Getting Into Or Out Of The Wheelchair

    7.6 Transfer getting into or out of the wheelchair ATTENTION! • Always lock the wheel locks before getting into or out of the wheelchair. • First practise boarding the chair with the child and an attendant who can secure the wheelchair, and modify footplate and seat height settings if the chair has a tendency to tip over.

  • Page 35: Storage

    8 Storage Depending on its size and features, CLEO Ti can be folded in one piece with the backrest folded in and the footrest folded up to be stored. Care instructions! Clean CLEO Ti thoroughly before storage. Please observe the care instructions on page 36.

  • Page 36: Maintenance

    10 Maintenance / Service and Repairs and operating life Your CLEO Ti is CE approved. The manufacturer herewith guarantees that this medical product as a whole conforms to the basic safety and performance requirements in accordance with Annex I to Regulation (EU) 2017/745 of the EU Parliament and of the Council.
  • Page 37 *The seat height depent on the frame size, the wheel diameter and the camber. ATTENTION! **Accessories and mounting parts reduce the remaining vehicle load capacity. ATTENTION! *** Weight refers to a CLEO Ti with basic configuration and maximum seat width.
  • Page 39 // Notes...
  • Page 40 HOGGI GmbH Eulerstraße 27 • 56235 Ransbach-Baumbach • Deutschland Telefon: (+49) 2623 / 92 499-0 • Telefax: (+49) 2623 / 92 499-99 E-mail: info@hoggi.de • www.hoggi.de...
