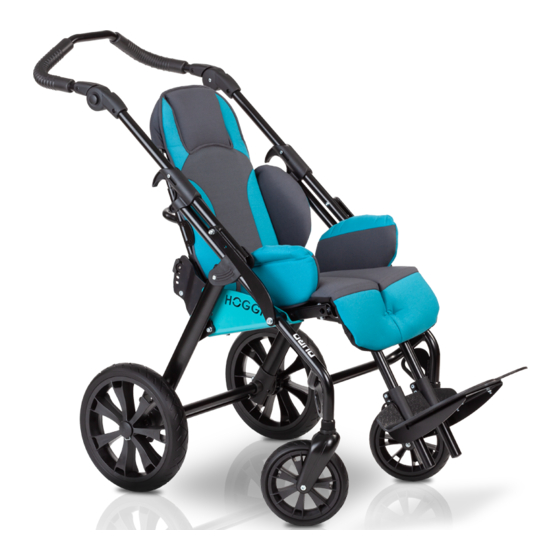

Summary of Contents for Hoggi DURO

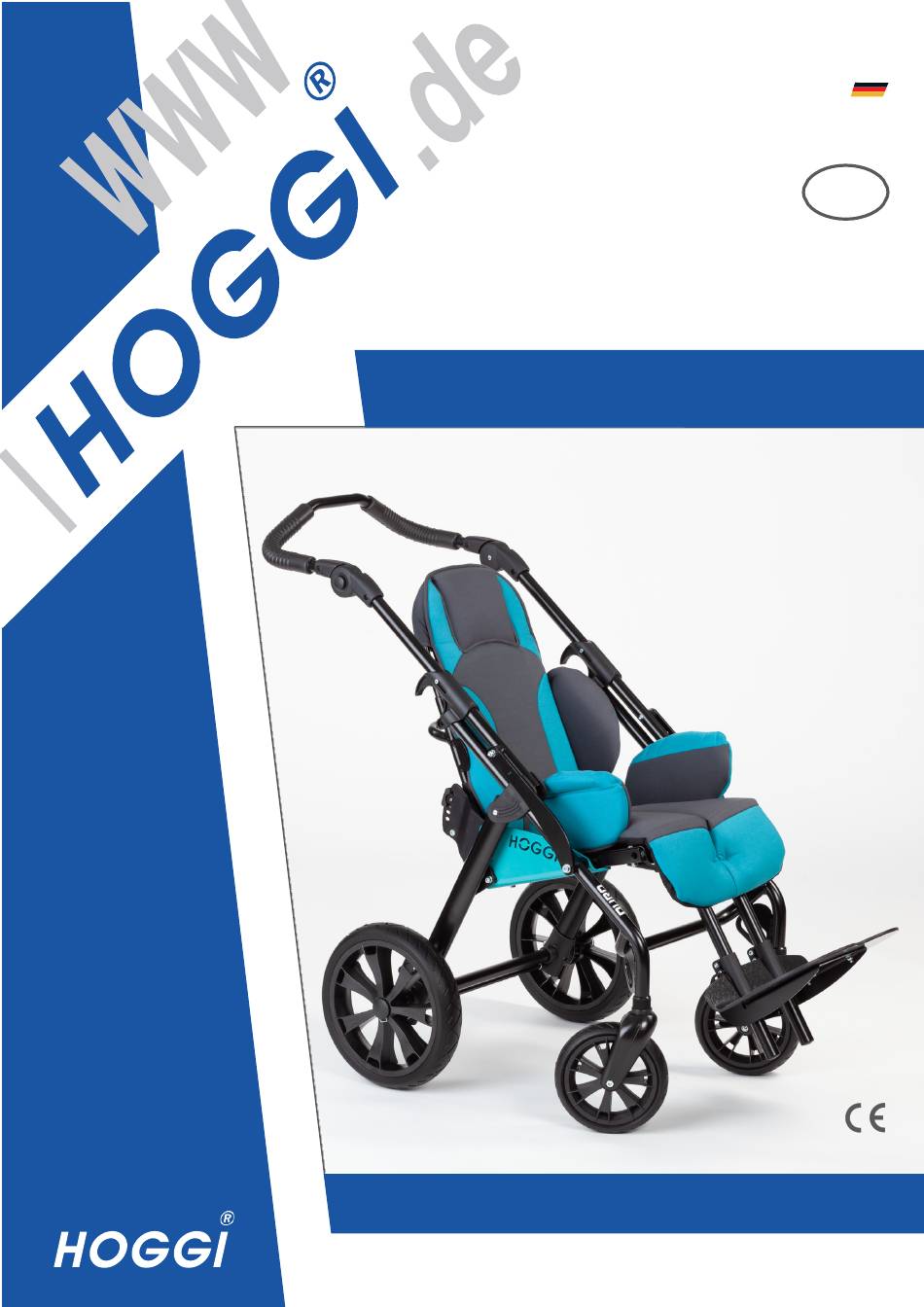

- Page 1 Made in Germany by HOGGI DURO Servic manual Partnership for mobile children...
-
Page 2: Table Of Contents
Service instructions for DURO Model identification and basic equipment Model identification via the nameplate Basic equipment General information Foreword Customer service Safety instructions Meaning of the symobols General safety information Required tools and maintenance plan Required tools Maintenance schedule carriage chassis... -
Page 3: Model Identification Via The Nameplate
1 Model identification 1.1 Model identification via the nameplates The nameplates are attached to the axle tube and the seat unit. Color code Item number Size Serial number CE-Labelling Type designation / product name Maximum user weight / Maximum payload Manufacturer Place of manufacture Year of manufacture... -
Page 4: General Information
2 General information 2.1 Foreword Regular maintenance is important - it increases safety and extends the life of the product. Every rehab product should be checked and serviced once a year. However, it is advisable to check, readjust and, if necessary, wait for products with a high frequency of use, users with growing users or users with changing clinical pictures every 6 months. -
Page 5: Safety Instructions
Reha folding buggy and its accessories. If instructions are incomprehensible and more detailed explanations are required or if you have further questions, please contact your HOGGI specialist dealer. First, practice driving with the child on level, manageable terrain. Together with the child,... - Page 6 Use your folding rehab buggy only as intended. For example, avoid driving against an obstacle (step, curb) without braking. Avoid jumping off heels Only drive over steps and thresholds with the chassis tilted onto the rear wheels (upwards - pulling backwards, downwards - slowly lowering forward). Stairs may only be climbed with the help of an accompanying person.
- Page 7 This is the only way to ensure that occupants are optimally protected in the event of an accident. DURO is not approved for use as a seat in BTW. Always ensure that the quick-release axles on the drive wheel are correctly adjusted.
- Page 8 To lift the rehab buggy, only grasp firmly welded or firmly screwed frame parts. The HOGGI seat cushion (Trevira CS) as well as the HOGGI back cushion are flame retardant in accordance with the standards EN 1021-1 and EN 1021-2. When using other seat cushions and back cushions than those originally supplied by HOGGI or with additionally used cushions the flame-retardant effect is not given.
-
Page 9: Required Tools And Maintenance Plan
4 Required tools and maintenance plan 4.1 Required tools Reversible ratchet and Torque wrench Wrench size 10-24 socket wrench inserts measuring ranges 5-50 size. 8-24 Allen key Screwdriver blade width Philips screwdriver 3,5 and 5,5 size 2 size 3 - 6 Plastic hammer Hammer ca. -
Page 10: Maintenance Schedule Carriage Chassis
Customer: 4.2 Maintenance Duro ..........Road frame Exam(Checkliste to tick off ) Pos. Area Serial number: Function / setting No damage / Screw (see operating instructions) connections deformation ........Road frame Front frame Front struts Rear frame Brake with rear axle... -
Page 11: Maintenance Schedule Seat Unit
Customer: 4.3 Maintenance Duro ..........Seat unit Exam(Checkliste to tick off ) Pos. Area Serial number: Function / setting ( No damage / Screw see operating instructions) deformation connections n ........Seat unit Seat base - Optical control Seat - Seat depth adjustment... -
Page 12: Assembly By The Specialist Dealer
• Accessories depending on the order Please remove the packaging first. To unfold, please proceed as follow: • Lift the DURO by the black handle of the push bar and fold it up so that you can put it on the wheels. •... -
Page 13: Technical Data
1010 mm Mass of the heaviest part (seat unit) 14,6 kg 15,4 kg DANGER! Accessories and attachments reduce the remaining load capacity for the occupant. DANGER! The weight information relates to a DURO with basic equipment and maximum seat width. - Page 14 Partnerschaft für mobile Kinder HOGGI GmbH • Eulerstraße 27 • D-56235 Ransbach-Baumbach • Internet: www.hoggi.de E-mail: info@hoggi.de • Telefon: (+49) 2623 / 92 499-0 • Telefax: (+49) 2623 / 92 499-99...
