Ashford DOUBLE TREADLE KIT Instructions

Advertisement

ASHFORD TRADITIONAL SINGLE OR DOUBLE

Tools Required:

Hammer, slot screwdriver, philips (pozi) screwdriver, candlewax, Ashford Spinning Wheel Oil.

Finishing the Wood:

We recommend the wood surfaces be sealed before assembly. This protects the kiln dried wood from
climatic changes and enhances its beauty. Use either the Ashford Wax Finish or the same finish as
the rest of your wheel.

Assembly Sequence:

Please read these instructions right through before commencing.

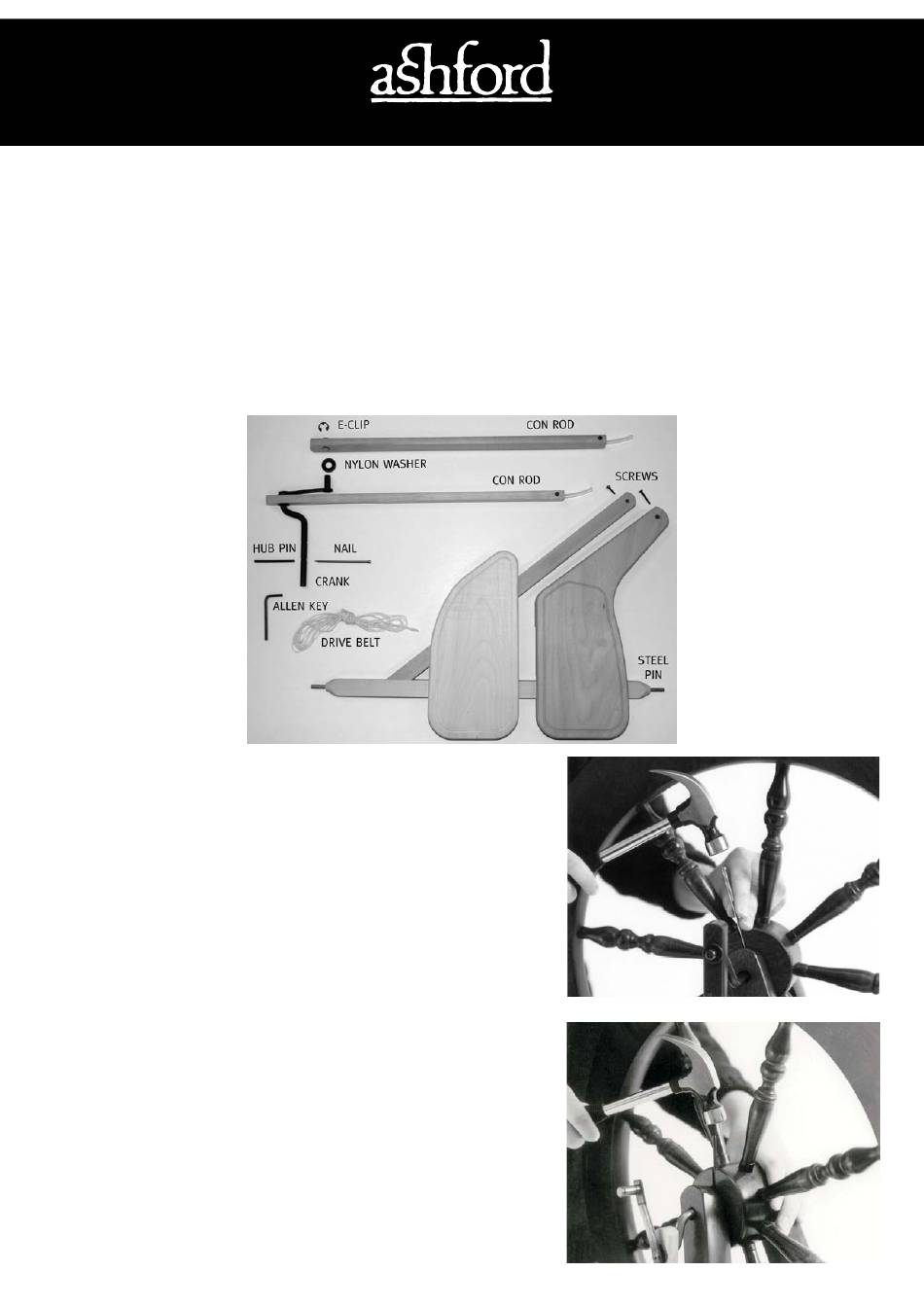

Parts:

1. Remove from the crank either:
a) the split pin with a pair of pliers
b) the O-ring with a pin or needle
c) the E-clip with a small screwdriver
Take off old con rod from the crank.
2. Remove the hub pin. - Use the nail provided and a hammer. Note: on
earlier models the hub pin is in the middle of the hub. Avoid damaging
the spokes. Place a flat steel object such as pliers or a spanner over the
nail and hammer it.
3. Remove the crank from the wheel.
b) On old spinning wheels use a slot screwdriver to prise the bent
1/8" diameter hub pin out.
4. Remove the wheel from the frame. Clean the bearings and wheel.
Remove any fibres that may have collected around the crank.
5. Replace the wheel into position. Note: the hub pin is on the same side as
the con rods.
6. Push the double treadle crank (with the inner con rod attached)
through the wheel supports and into the hub. There are two holes in the
crank. One will fit your wheel.
7. Place the nail down the hub pin slot and into the hole in the crank.
Remove the nail and replace it with the hub pin.
INSTRUCTIONS
DOUBLE TREADLE KIT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DOUBLE TREADLE KIT and is the answer not in the manual?

Questions and answers

Summary of Contents for Ashford DOUBLE TREADLE KIT

  • Page 1 Finishing the Wood: We recommend the wood surfaces be sealed before assembly. This protects the kiln dried wood from climatic changes and enhances its beauty. Use either the Ashford Wax Finish or the same finish as the rest of your wheel.
  • Page 2 Less muscle fatigue - the Double Treadle Kit reduces ankle, leg and hip fatigue. Update kit - your spinning wheel has now been updated with the new crank and con rod joints.
