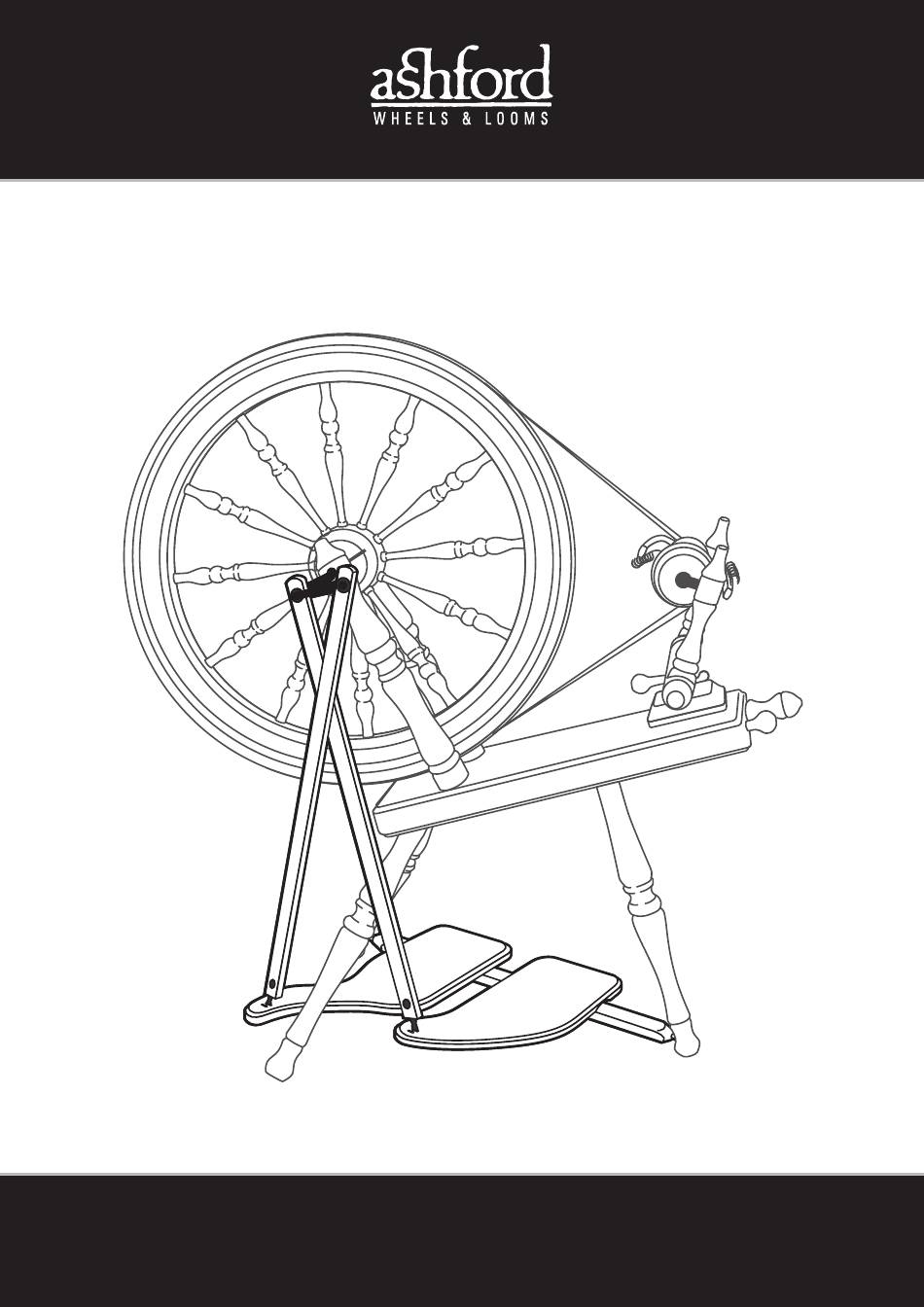

Ashford DOUBLE TREADLE KIT Instructions Manual

For elizabeth spinning wheel

Advertisement

Quick Links

Ashford Handicrafts Limited
415 West Street, Ashburton 7700, New Zealand
Telephone 64 3 308 9087
sales@ashford.co.nz www.ashford.co.nz
INSTRUCTIONS
DOUBLE TREADLE KIT
for Elizabeth spinning wheel
Ashford Guarantee
Thank you for purchasing this Ashford product. In the unlikely event there is
any fault in manufacture, please contact the dealer you purchased it from. To
validate the guarantee, please go to www.ashford.co.nz/product-registration
DTKESW01052015V3

Advertisement

loading
Need help?

Need help?

Do you have a question about the DOUBLE TREADLE KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ashford DOUBLE TREADLE KIT

  • Page 1 Ashford Guarantee 415 West Street, Ashburton 7700, New Zealand Thank you for purchasing this Ashford product. In the unlikely event there is Telephone 64 3 308 9087 any fault in manufacture, please contact the dealer you purchased it from. To sales@ashford.co.nz www.ashford.co.nz...
  • Page 2 Good posture - when you use both feet to treadle Please read these instructions right through before your body is naturally in balance. commencing. Less muscle fatigue - the Double Treadle Kit reduc- Finishing the Wood es ankle, leg and hip fatigue. We recommend the wood surfaces be sealed Update kit - your spinning wheel has now been before assembly.
  • Page 3 Remove the crank from the wheel. Remove the wheel from the frame. Clean the bearings and wheel. Remove any fibres that may have collected around the crank. Replace the wheel in position. Once the hole in the crank aligns with the slot in the hub, carefully tap the 62mm (2 ½”) hub pin through the hub and...
  • Page 4 If your wheel has ball bearing, reassemble as follows. Hub pin Insert the crank through the bearing in wheel sup- Short spacer port F. Slide the long crank spacer onto the crank as Long Spacer shown. Then place the wheel into position with the groove for the hub pin away from the spinner and push the Crank crank through the hub.
  • Page 5 Note the crank Set the treadle assembly bearing faces on the edge of a table. the back of the Insert the conrod joint spinning wheel. on the inside conrod into the shorter treadle board. Then the conrod joint in the outside conrod into the large slot in the longer treadle board.
  • Page 6 Then click the outside conrod onto the univer- sal joint on the crank. Now you can enjoy spinning on your new Ashford Double Lubricate all moving Treadle Kit. parts with Ashford Spin- If required use the new ning Wheel Oil.
