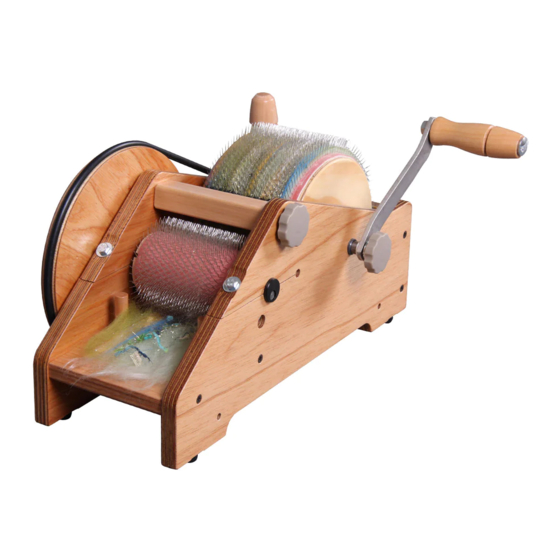

Ashford Wild Carder Instructions

Create your own fabulous fun and funky art yarns by blending fibres, fabrics, ribbon, feathers, noils, cocoons, paper and more...
Prepare 40gm (1½oz) batts.
Use the adjustable packer brush to smooth and pack more fibre onto the large drum.
Extra long 72 ppsi teeth.
Adjustable drum clearance to suit your fibre.
Rubber feet to stop it from slipping.
Assembled and lacquered - ready to use.
Includes doffer (awl), cleaning brush and clamps.
Drive band

Assembly

Attach the handle as shown. Note: Place the spring washer on first, thread on the handle and lock in place with the dome nut.
Place the drive band onto the pulley as illustrated below. When not in use, remove the drive band to avoid it stretching. Store
the doffer in the 2 screw eyes on the side of the carder. Store the cleaning brush under the feed-in tray. Assemble the 2 clamps.
Ashford Handicrafts Ltd.
Factory and Showroom: 415 West Street,
PO Box 474, Ashburton, New Zealand
Telephone 64 3 308 9087
Facsimile 64 3 308 8664
Email: sales@ashford.co.nz
Internet: www.ashford.co.nz
INSTRUCTIONS
WILD DRUM CARDER
Ashford Guarantee
Thank you for purchasing this Ashford product. In the
unlikely event there is any fault in manufacture we will
replace the item. To validate our guarantee please visit
our website or write to us.
Please also join our Ashford Club for the Wheel Magazine,
competitions and more at www.ashfordclub.co.nz
Clamps
