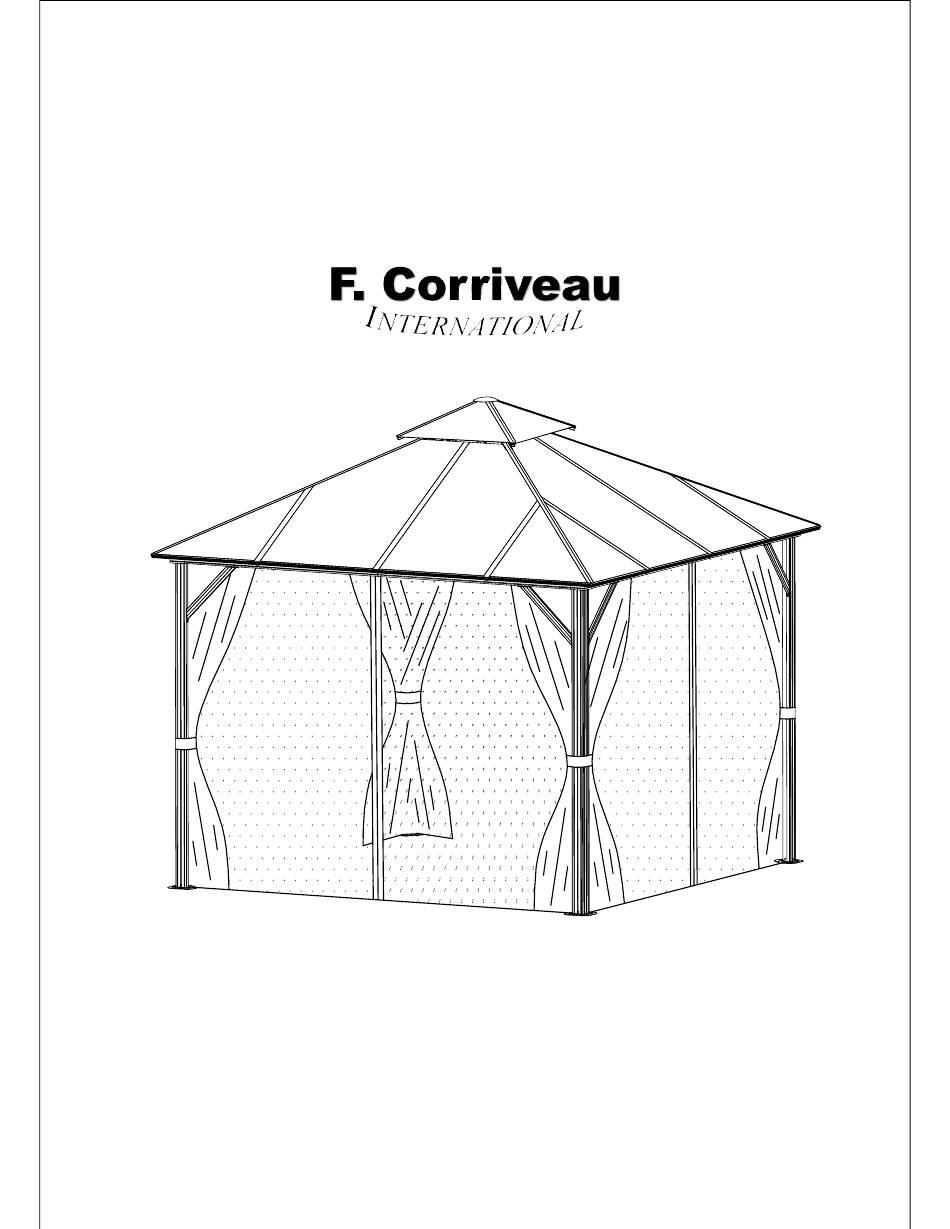

- Page 1 Austria ACP gazebo 8’ x 8’ E080806- (2019)
- Page 2 IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions before attempting to assemble. Each of the recommendations must be followed to ensure the utmost solidity. Security Rules Warning: Keep flame and heat sources away from the gazebo fabric. The fabric may burn if it is exposed to prolonged contact with a source of heat.
- Page 3 Care : Avoid using a pressure washer. The use of a mild soap with warm water is the best solution for the frame only. A clear water rinse is necessary then. Never use soap on fabric, this will reduce their durability, consequently their lifespan and general look.
- Page 4 Description Drawing Post Crossbar Brace Corner Roof Tube Roof Tube Roof Tube Roof Tube Roof Tube Roof Edge Small Support Crossbar Roof Edge...
- Page 5 Description Drawing Base Flange Corner Moulding Central Connector Central Connector Roof Cap Hook Roof Spacer Roof Spacer Bracket Bracket Bracket Roof Panel...
- Page 6 Description Drawing Roof Panel Roof Panel Roof Panel Roof Panel Curtain Hook Hook Stopper Small Mosquito Mosquito Net Curtain Roof Corner Bracket Side Roof Bracket...
- Page 7 Description Drawing M6X15 Bolt M6X30 Bolt + Nut Shoulder Socket Screw Self Tapping Screw Stake Wrench Wrench Allen Key Screwdriver...
- Page 8 Step 1: Install a base flange (L) to the bottom of a post (A) by using bolts (HH). Repeat for all remaining posts. Step 2: Install the track (B) between two posts (A) using the bolts (JJ) on the outside of the tracks. Repeat for all remaining tracks (B).
- Page 9 Step 3: Fix braces (C) into post (A) & track (B) of the structure using the bolts (HH). Step 4: Using (KK) self tapping screws, fix the corner moulding (M) to appropriate locations.
- Page 10 Step 5: Slide the corner roof tubes (D) and the roof tubes (E) into the central connector (N). Just push tubes until spring pins makes a ‘’ c lick’’ sound. Step 6: Lay down the roof tube assembly on former assembled frame and fix together by the use of bolts and nuts (II).
- Page 11 Step 7: Fix the roof tubes (F) and (G) to corner roof tubes (D) by using brackets (T) and bolts (HH). Pay attention to locate pins of brackets (T) toward up. Fix other end of roof tubes by using bolts and nuts (II) as illus- trated.
- Page 12 Step 9: Fix the roof tubes (F) and (G) to corner roof tubes (D) by using brackets (T) and bolts (HH). Pay attention to locate pins of brackets (T) toward up. Fix other end of roof tubes by using bolts and nuts (II) as illus- trated.
- Page 13 **Fixing the roof panels : To avoid the roof panels to slide down, follow these 3 steps combined for each panel.** Step 10: Insert roof panels (V) into the grooves of roof tubes (H).
- Page 14 Step 11: Insert roof edges (I) to ends of roof panels (V). Step 12: Fix the roof corner brackets (FF) by using (HH) bolts as illustrated. In order not to damage inserts, do not over tighten the bolts.
- Page 15 Step 13: Fix the bracket (U) to roof tubes (E) by using bolts (HH). Pay attention to locate pins toward up. Step 14: As shown, insert small support crossbar (J) on pins of brackets (U) and (T). Ensure velcro of small support crossbar (J) face toward ground.
- Page 16 **Fixing the roof panels : To avoid the roof panels to slide down, follow these 3 steps combined for each panel.**...
- Page 17 Step 15: Slide in roof panels (W), (X), (Y) and (Z) into the grooves of roof tubes. Step 16: Insert roof edges (K) to the ends of roof panels.
- Page 18 Step 17: As shown, fix the roof corner brackets (FF) and roof side brackets (GG) to ends of roof tubes. In order not to damage inserts, do not over tighten the bolts. Step 18: Fix the mosquito net (CC) on small support crossbar (J).
- Page 19 Step 19: Install curtain hooks (AA) into the loops of curtains (EE). Then insert hooks into the external groove of crossbar (B). Step 20: Hang up curtain hooks (AA) into the loops of mosquito net (DD). Then insert the hooks into the internal groove of the crossbars (B).
- Page 20 Step 21: Insert hook stoppers (BB) to ends of the grooves of crossbars (B). Step 22: Use the stakes (LL) for ground fixing. Take note the anchoring device to use may vary with ground status. Additional anchoring devices are not provided.
