Corriveau Austria ACP Manual

Gazebo 10' x 10'
Hide thumbs Also See for Austria ACP:

Advertisement

Quick Links

Download this manual
Austria ACP gazebo 10' x 10'
E101006- (2019)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Austria ACP and is the answer not in the manual?

Questions and answers

Related Manuals for Corriveau Austria ACP

Summary of Contents for Corriveau Austria ACP

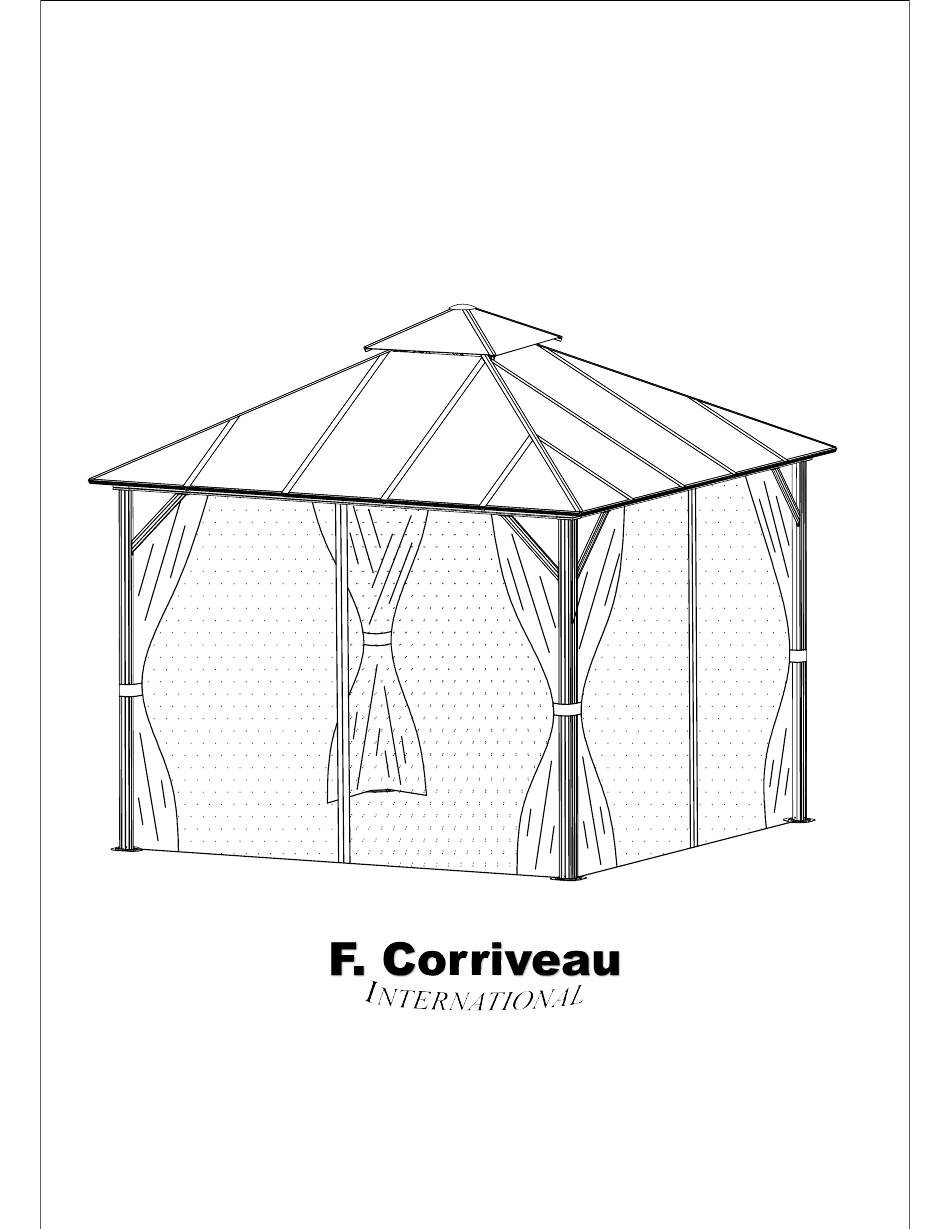

  • Page 1 Austria ACP gazebo 10’ x 10’ E101006- (2019)
  • Page 2 IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions before attempting to assemble. Each of the recommendations must be followed to ensure the utmost solidity. Security Rules Warning: Keep flame and heat sources away from the gazebo fabric. The fabric may burn if it is exposed to prolonged contact with a source of heat.
  • Page 3 Care : Avoid using a pressure washer. The use of a mild soap with warm water is the best solution for the frame only. A clear water rinse is necessary then. Never use soap on fabric, this will reduce their durability, consequently their lifespan and general look.
  • Page 4 Description Drawing Post Crossbar Crossbar Braces Corner Roof Tube Roof Tube Roof Tube Roof Tube Roof Tube Roof Tube Roof Edge...
  • Page 5 Description Drawing Small Support Crossbar Roof Edge Small Support Crossbar Base Flange Connector Corner Moulding Central Connector Roof Cap Hook Roof Spacer Roof Spacer Bracket...
  • Page 6 Description Drawing Bracket Bracket Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Roof Panel Curtain Hook Hook Stopper Small Mosquito...
  • Page 7 Description Drawing Mosquito Net Curtain Roof Corner Bracket Side Roof Bracket M6X15 Bolt MM M6X30 Bolt + Nut Shoulder Socket Screw Self Tapping Screw Stake Wrench Wrench...
  • Page 8 Description Drawing Allen Key Screwdriver...
  • Page 9 Step 1: Install a base flange (O) to the bottom of a post (A) using bolts (LL). Repeat the step for all other posts. Step 2: Using bolts (LL) and connectors (P) put together all crossbars (B) and (C).
  • Page 10 Step 3: As shown, using bolts (NN) fix the crossbar assembly (B)/(C) to posts (A). Step 4: Using (LL) bolts, fix (D) braces to posts (A) and crossbars assembly (B)/(C).
  • Page 11 Step 5: As shown, using self tapping screws (OO) fix corner mouldings (Q) at appropriates locations. Step 6: Fix the corner roof tubes (E) to the central connector (R). Just push tubes until spring pins makes a click sound.
  • Page 12 Step 7: Lay down the assembly of corner roof tubes (E)/(R) on crossbars four corners previously assembled and fix at each corner by the use of bolts and nuts (MM). Step 8: As shown, fix roof tubes (F), (G), (H) and (I) to corner roof tubes (E) using (W) brackets and bolts (LL). Pay attention to locate brackets (W) pins toward up.
  • Page 13 Step 9: As shown, fix the roof tubes (J) to a central connector (R) by pushing tubes on until spring pins makes a click sound. Step 10: Fix the roof spacer (U) under this last assembly by covering and screwing the roof cap (S) on. Lay down this assembly over the first central connector (R) fitted with (E) corner roof tubes.
  • Page 14 Step 11: As shown, insert the small support crossbars (L) for the small roof onto the pins of the (W) brackets.
  • Page 15 **Fixing the roof panels : To avoid the roof panels to slide down, follow these 3 steps combined for each panel.** Step 12: Insert the roof panels (Y) into the grooves of the roof tubes (J).
  • Page 16 Step 13: At ends of roof panels (Y), insert the roof edges (K). Step 14: Secure the roof panels (Y) in each corner by using the roof corner brackets (JJ) and bolts (LL). In order not to damage inserts, do not over tighten the bolts.
  • Page 17 Step 15: As shown, fix the (X) bracket to roof tubes (F) and (G) by using bolts (LL). Step 16: As shown, insert the small support crossbars (N) on the pins of the (W) brackets of the main roof.
  • Page 18 **Fixing the roof panels : To avoid the roof panels to slide down, follow these 3 steps combined for each panel.**...
  • Page 19 Step 17: Slide in roof panels (Z), (AA), (BB), (CC) and (DD) into the grooves of roof tubes. Step 18: Insert the roof edges (M) to the ends of the roof tubes (I), (G), (F) and (H).
  • Page 20 Step 19: As shown, using bolts (LL) fix the roof corner brackets (JJ) and side roof brackets (KK) to ends of roof tubes (I), (G), (F) and (H). In order not to damage inserts, do not over tighten the bolts. Step 20: Fix the small mosquito net (GG) to the small roof.
  • Page 21 Step 21: Hang up the curtain hooks (EE) into the loops of the curtain (II) and slide the hooks into the external rail of the (B)/(C) crossbars Step 22: Hang up the curtains hooks (EE) into the mosquito net loops (HH) and insert these hooks into the inside rail of the (B)/(C) crossbars.
  • Page 22 Step 23: Then insert the hook stoppers (FF) at ends of rail of (B)/(C) crossbars. Step 24: Use the stakes (PP) for ground fixing. Take note the anchoring devices to use may vary with ground status. Additional anchoring devices are not provided.
