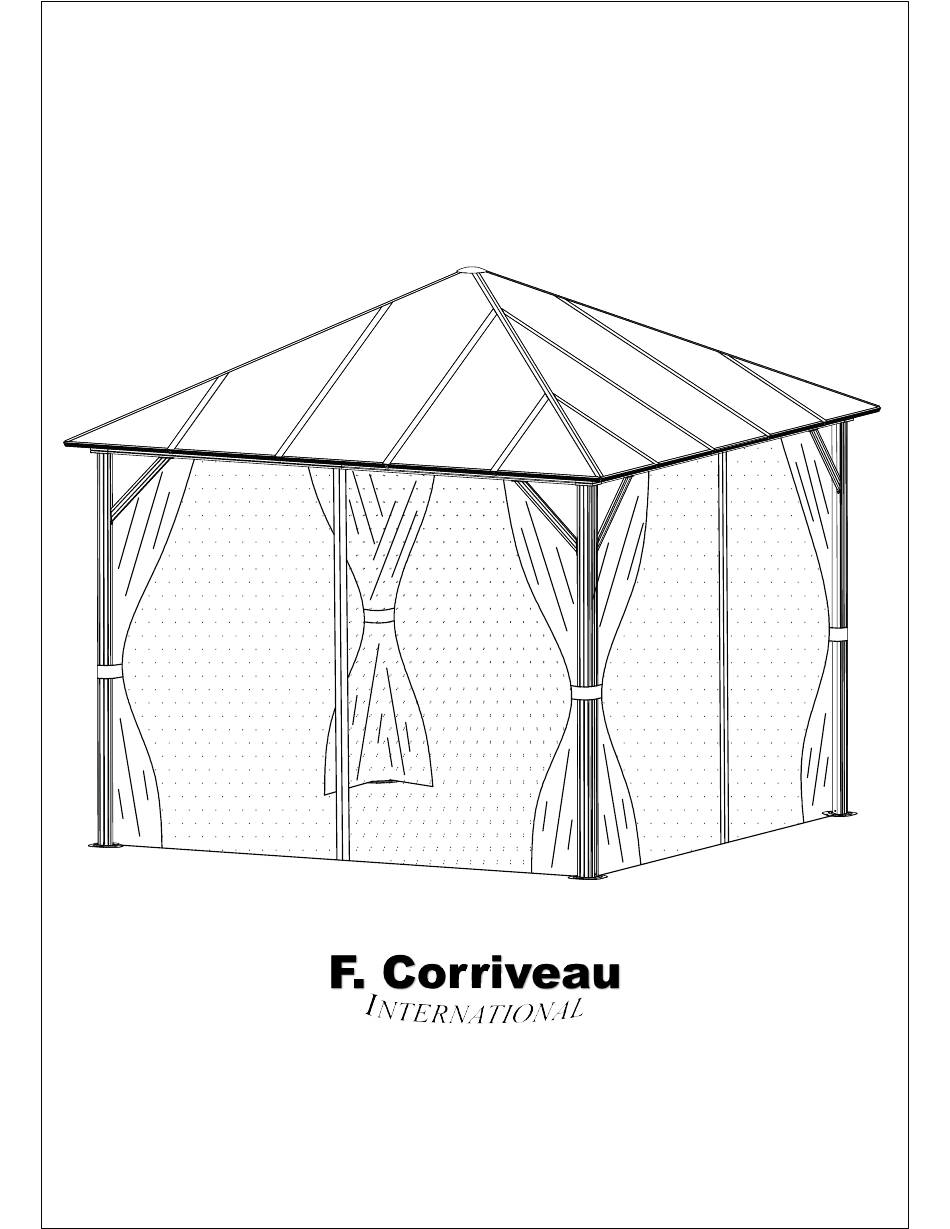

- Page 1 Australia ACP gazebo 10’ x 10’ E101003- (2019)
- Page 2 IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions before attempting to assemble. Each of the recommendations must be followed to ensure the utmost solidity. Security Rules Warning: Keep flame and heat sources away from the gazebo fabric. The fabric may burn if it is exposed to prolonged contact with a source of heat.
- Page 3 Care : Avoid using a pressure washer. The use of a mild soap with warm water is the best solution for the frame only. A clear water rinse is necessary then. Never use soap on fabric, this will reduce their durability, consequently their lifespan and general look.
- Page 4 Description Drawing Post Crossbar Crossbar Braces Corner Roof Tube Roof Tube Roof Tube Roof Tube Roof Tube Small Support Crossbar Roof Edge...
- Page 5 Description Drawing Base Flange Connector Corner Moulding Central Connector Roof Cap Hook Bracket Bracket Roof Panel Roof Panel Roof Panel...
- Page 6 Description Drawing Roof Panel Roof Panel Curtain Hook Hook Stopper Mosquito Net Curtain Roof Corner Bracket Side Roof Bracket M6X15 Bolt M6X30 Bolt + Nut Shoulder Socket Screw...
- Page 7 Description Drawing HH Self Tapping Screw Stake Wrench Wrench Allen Key Screwdriver...
- Page 8 Step 1: Install a base flange (L) to the bottom of a post (A) using bolts (EE). Repeat the step for all other posts. Step 2: Using bolts (EE) and connectors (M), put together all crossbars (B) and (C).
- Page 9 Step 3: As shown, using bolts (GG), fix the crossbars assembly (B)/(C) to posts (A). Step 4: Using (EE) bolts, fix (D) braces to posts (A) and crossbars assembly (B)/(C).
- Page 10 Step 5: As shown, using self tapping screws (HH) fix corner mouldings (N) at appropriate locations. Step 6: Fix the corner roof tubes (E) to the central connector (O). Just push tubes until spring pins makes a click sound.
- Page 11 Step 7: Lay down the assembly of corner roof tubes (E)/(O) on crossbars four corners previously assembled and fix at each corner by the use of bolts and nuts (FF). Then fix the roof cap (P) on top of assembly using hook (Q). Step 8: As shown, fix roof tubes (F), (G), (H) and (I) to corner roof tubes (E) using (R) brackets and bolts (EE).
- Page 12 Step 9: As shown, fix the (S) brackets to roof tubes (F) and (G) using (EE) bolts. Step 10: Insert the small support crossbars (J) on pins of (S) and (R) brackets.
- Page 13 **Fixing the roof panels : To avoid the roof panels to slide down, follow these 3 steps combined for each panel.**...
- Page 14 Step 11: Slide roof panels (T), (U), (V), (W) and (X) into the grooves of roof tubes. Step 12: Insert the roof edges (K) at ends of roof tubes (I), (G), (F) and (H).
- Page 15 Step 13: As shown, using bolts (EE) fix the roof corner brackets (CC) and the side roof brackets (DD) to ends of roof tubes (I), (G), (F) and (H). In order not to damage inserts, do not over tighten the bolts. Step 14: Hang up the curtain hooks (Y) into the loops of the curtain (BB) and slide the hooks into the external rail of the (B)/(C) crossbars.
- Page 16 Step 15: Hang up the curtains hooks (Y) to the mosquito net loops (AA) and insert these hooks into the inside rail of the (B)/(C) crossbars. Step 16: Then insert the hook stoppers (BB) at ends of rails of (B)/(C) crossbars. Use the stakes (II) for ground fixing.
