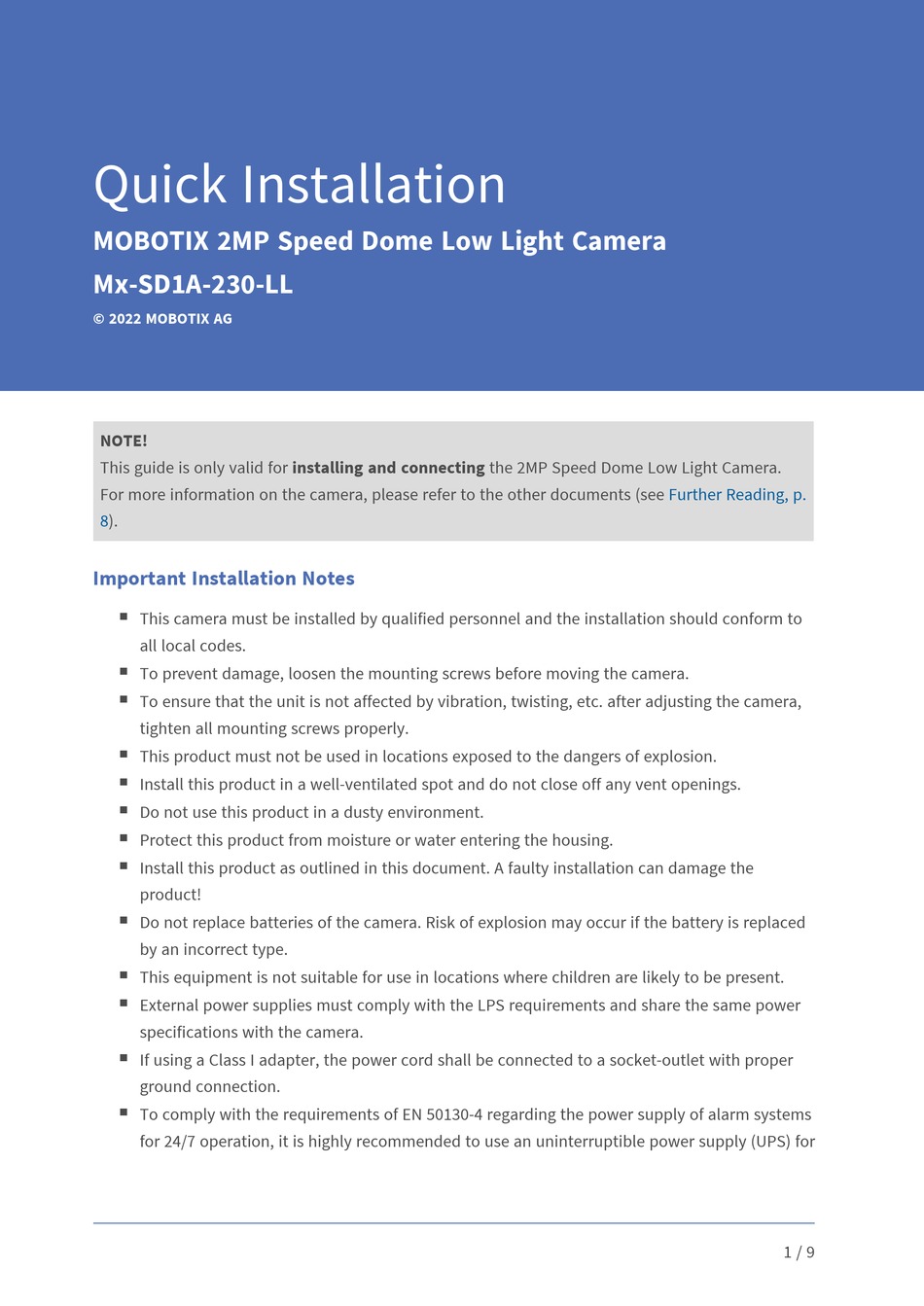

Quick Installation

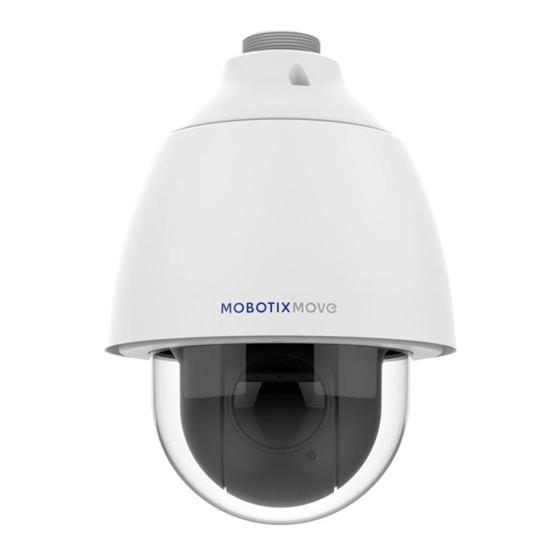

MOBOTIX 2MP Speed Dome Low Light Camera
Mx-SD1A-230-LL
© 2022 MOBOTIX AG
NOTE!
This guide is only valid for installing and connecting the 2MP Speed Dome Low Light Camera.
For more information on the camera, please refer to the other documents (see
8).
Important Installation Notes

n
This camera must be installed by qualified personnel and the installation should conform to
all local codes.

n
To prevent damage, loosen the mounting screws before moving the camera.

n
To ensure that the unit is not affected by vibration, twisting, etc. after adjusting the camera,
tighten all mounting screws properly.

n
This product must not be used in locations exposed to the dangers of explosion.

n
Install this product in a well-ventilated spot and do not close off any vent openings.

n
Do not use this product in a dusty environment.

Protect this product from moisture or water entering the housing.
n

n
Install this product as outlined in this document. A faulty installation can damage the
product!

n
Do not replace batteries of the camera. Risk of explosion may occur if the battery is replaced
by an incorrect type.

n
This equipment is not suitable for use in locations where children are likely to be present.

n
External power supplies must comply with the LPS requirements and share the same power
specifications with the camera.

n
If using a Class I adapter, the power cord shall be connected to a socket-outlet with proper
ground connection.

n
To comply with the requirements of EN 50130-4 regarding the power supply of alarm systems
for 24/7 operation, it is highly recommended to use an uninterruptible power supply (UPS) for
Further Reading, p.
1 / 9

Advertisement

Table of Contents
loading

Related Manuals for Mobotix Mx-SD1A-230-LL

Summary of Contents for Mobotix Mx-SD1A-230-LL

  • Page 1 Quick Installation MOBOTIX 2MP Speed Dome Low Light Camera Mx-SD1A-230-LL © 2022 MOBOTIX AG NOTE! This guide is only valid for installing and connecting the 2MP Speed Dome Low Light Camera. For more information on the camera, please refer to the other documents (see Further Reading, p.

  • Page 2: Camera Connectors

      This equipment is to be connected only to PoE networks without routing to other networks. NOTE! Observe the MOBOTIX MOVE Installation Hints document to ensure optimum performance of the camera features. CAUTION! To prevent damage, loosen all mounting screws before adjusting the camera.

  • Page 3: Power Connector

    **Do NOT connect external power supply to the alarm I/O connector of the camera. NOTE!   To purchase a power adapter, please contact MOBOTIX for further information.   The DC12V power jack and the AC24V power connector cannot be used at the same time without causing unforeseeable damage.
  • Page 4 Quick Installation 2MP Speed Dome Low Light Camera Alternatively, you can use an Ethernet cable and connect it to the RJ-45 port of the camera and a PoE+ switch (Class 4). Zero Downtime Power Switching (ZDT) When users connect DC12V power jack and the RJ-45 port at the same time, the power input comes from the DC12V connector.

  • Page 5: Accessing The Camera

    ② anti-drop chain of the pendant when installing the camera. For more information about the pendant and anti-drop chain, please contact MOBOTIX. Accessing the Camera The 2MP Speed Dome Low Light Camera supports all current browsers without requiring any addi- tional plug-ins or add-ons (e.g.
  • Page 6 Quick Installation 2MP Speed Dome Low Light Camera  1. Enter the camera’s IP address in the URL bar of the web browser and hit “Enter”.  2. Enter the default username (admin) and password (meinsm). NOTE! User names and passwords are case sensitive.  3.

  • Page 7: Camera Maintenance

    Quick Installation 2MP Speed Dome Low Light Camera Camera Maintenance It is recommended that you perform the following maintenance tasks at regular intervals to keep the 2MP Speed Dome Low Light Camera in good working condition:   Clean the using plain water and a soft cloth. CAUTION! Do not use any detergents or alcohol to prevent damage to the coating!  ...

  • Page 8: Further Reading

    Quick Installation 2MP Speed Dome Low Light Camera Further Reading Manuals and Quick Installation documents Technical Specifications MOBOTIX MOVE Installation Hints 8 / 9...
  • Page 9 MOBOTIX AG • Kaiserstrasse • D-67722 Langmeil • Tel.: +49 6302 9816-103 • sales@mobotix.com • www.mobotix.com MOBOTIX is a trademark of MOBOTIX AG registered in the European Union, the U.S.A., and in other countries. Subject to change without notice. MOBOTIX do not assume any liability for technical or editorial errors or omissions contained herein. All rights reserved. © MOBOTIX...
