3.4. T T C
ESTING HE OMPLETE SYSTEM
To ensure that your complete test system provides operator safety and protects all components (including
the AT3600/AT5600) from damage, it is vital that all source control methods that you have used are working
properly.
Ensure that all connections are made as specified in this manual.
Test your safety interlock system.
To avoid damage from switch-on transients, switch on the AT3600/AT5600 first., Then switch on the AC
source (if used).
1 Do not fit a test part at this stage. We are going to perform an open circuit test on two nodes to confirm
that requested voltages are applied as a simple test of the set up.

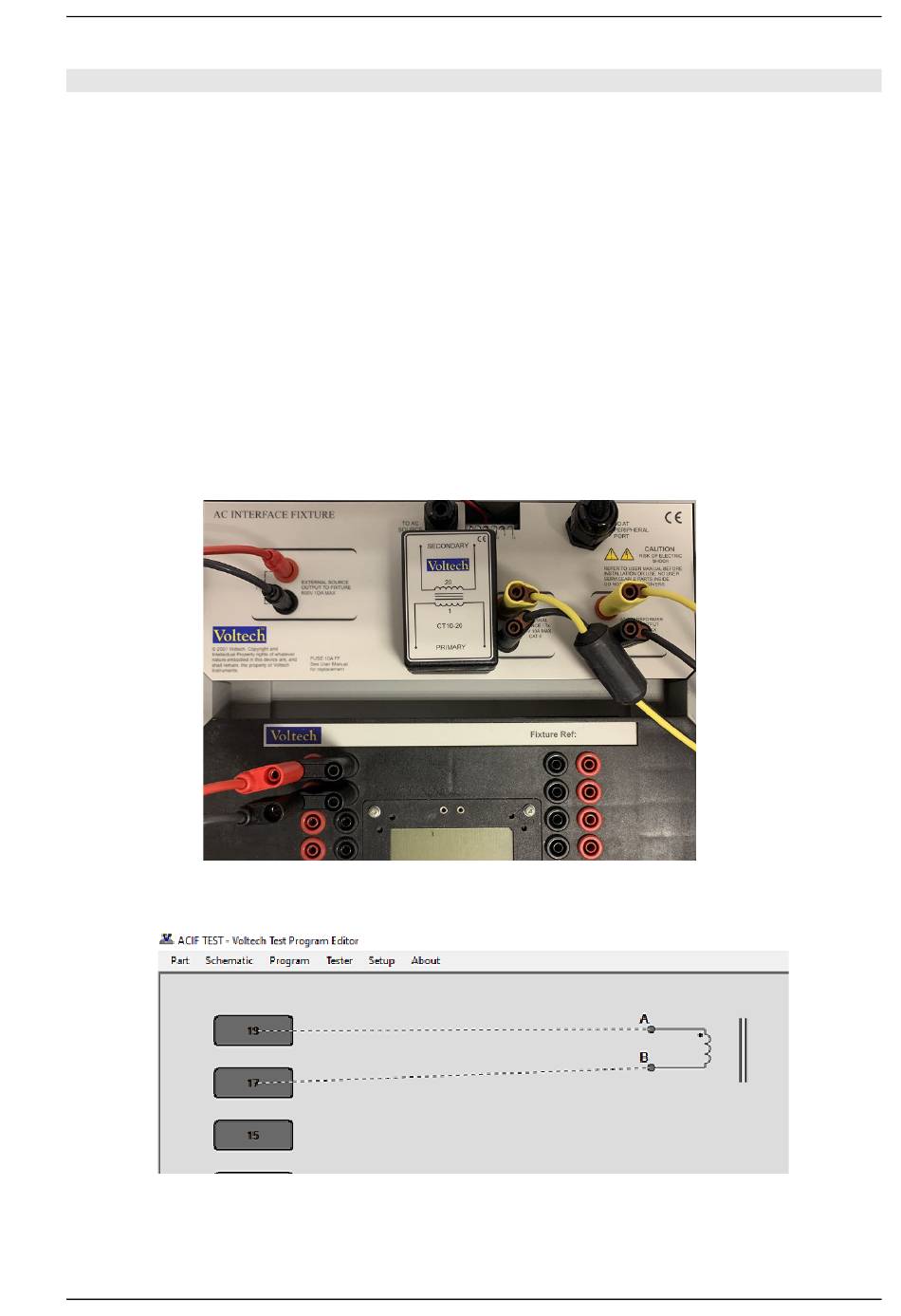

2 Connect the ACIF output to two nodes – in this example we have used node 17 LO and node 19 HI
3 Write an AT Editor program, with one winding, on nodes 17+19
V AC I U M 98-072 7 30
OLTECH NTERFACE SER ANUAL ISS PAGE
