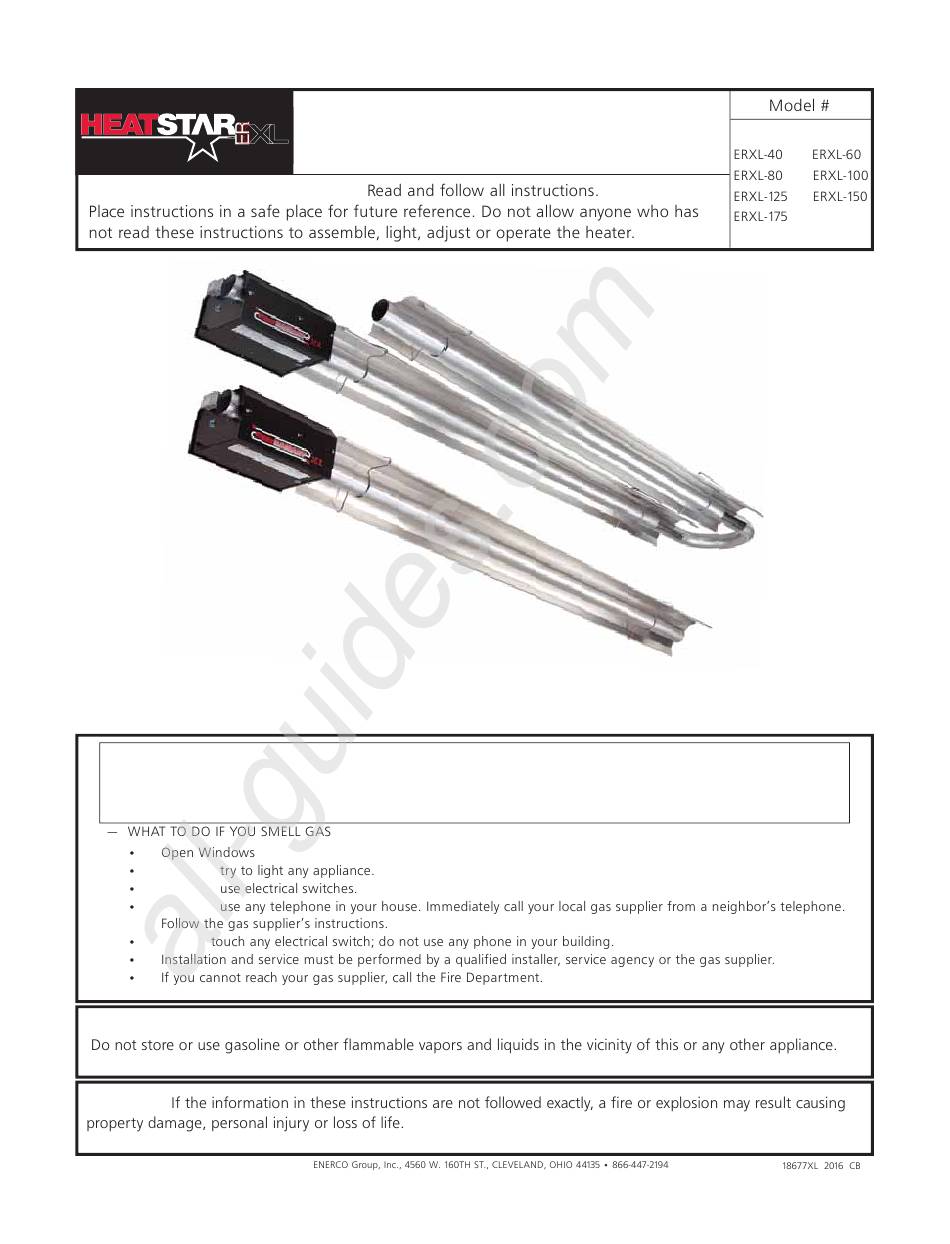

READ INSTRUCTIONS CAREFULLY:

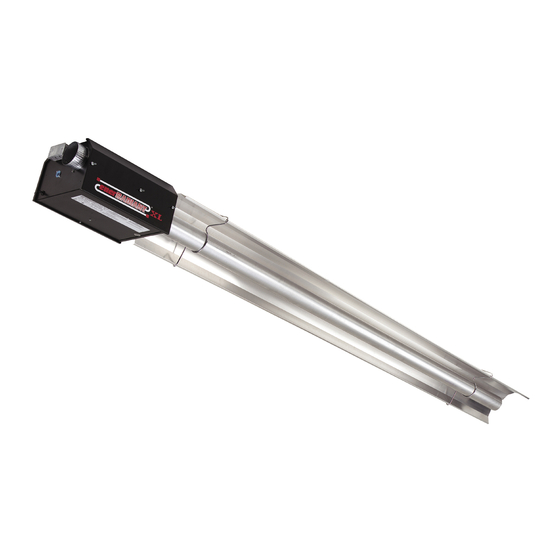

Heatstar ERXL
Gas-Fired Low-Intensity Infrared Heaters Approved
For Residential Garage/Commercial Applications
WARNING:
Improper installation, adjustment, alteration, service or maintenance can cause
property damage, injury, or death. Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
DO NOT
DO NOT
DO NOT
Do not
FOR YOUR SAFETY:
WARNING:
All manuals and user guides at all-guides.com
OPERATING INSTRUCTIONS
AND OWNER'S MANUAL
LANGUAGES INCLUDED
•ENGLISH
•FRENCH
•SPANISH
