- Page 1 Rada Outlook Quick Install Guide...
- Page 2 Caution! Assemble/install only as shown. Warning! Mains electrical connection. Isolate from mains electricity. Check for water leaks. Not suitable for high humidity or water condensation. For full instructions, see Product Manuals on USB or at www.radacontrols.com 1621.117...
-
Page 3: Safety Warnings
Guidelines/Approved Codes of Practice. of data, or any indirect or consequential loss arising out of the customer's use of Rada Outlook. The customer shall be solely responsible for the independent backup of all... -
Page 4: Standards And Approvals
SPECIFICATION Standards and Approvals complies with all relevant directives for CE marking. General Pollution Degree Protection Connections Flat face union connections Installation Environment Suitable for indoor use only Pressures 800kPa (8 bar) 100kPa (1 bar) performance. Minimum Flow Rate Per Outlet Temperatures 38°C 38°C... -
Page 5: Default Settings
Default Settings settings can be changed using the Outlets 1 -6 Type Shower Mode Timed Run Time 30 seconds Duty Flush Disabled Pump Disabled Disabled Number of Outlets for Fan Fan Run On Time 5 seconds Duty Flush Flush Type Standard Flush Interval 3 days... - Page 6 1621.099...
- Page 7 1621.112 1621.085 1621.136 / 1621.132 / 1621.137...

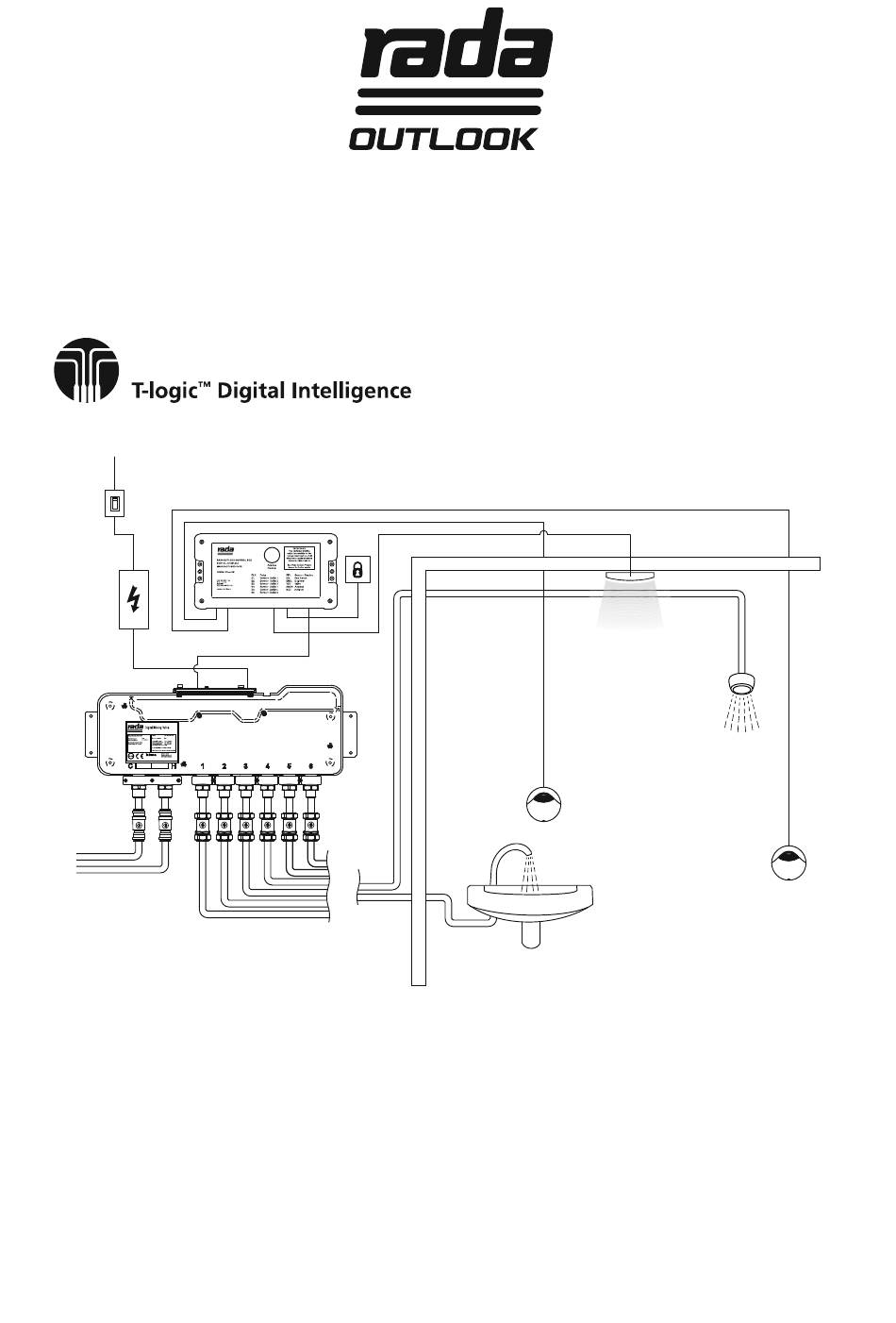

- Page 9 Sensor Box. Key Switch (optional). To disable the system during cleaning/maintenance. PIR Sensor (optional). Required for using the disinfection feature. Shower or Basin Outlets (up to 6). Hand Sensors (up to 6). (Infrared sensors shown.) Water Outlets (up to 6). (See Water Supplies.
- Page 11 1621.099...
- Page 12 1621.080...
- Page 13 3 AMP...
- Page 15 SENSORS 1621.112 Whilst installation of sensors directly below shower heads/outlet is permitted, it is installer's responsibility to ensure that any water left dripping from the outlets does Build up of limescale/residue within the shower head/outlet may cause water to drip and should therefore be regularly cleaned.
- Page 16 1621.112...
- Page 17 PIEZO 1621.085...
- Page 18 1621.136 1621.132 1621.137 Mixer Valve Outlet Sensor Box...
- Page 19 0V (white) I/P (white) 0V (green)
- Page 20 This product is compliant with all CE marking directives with sensor cables up to make sure the installation complies with all relevant directives and local regulations. Total 6m Max.
- Page 22 1621.117 Product Manual...
- Page 23 For full instructions, see Product Manuals on USB or at www.radacontrols.com 1621.156 1621.117...
-
Page 24: Customer Services Guarantee
Full guarantee terms and conditions can be found at www.radacontrols.com or contact your in region Rada representative or sales agent for further details. If your product is not working correctly please refer to this manual for fault diagnosis and to check that it is installed and commissioned in accordance with our instructions.
