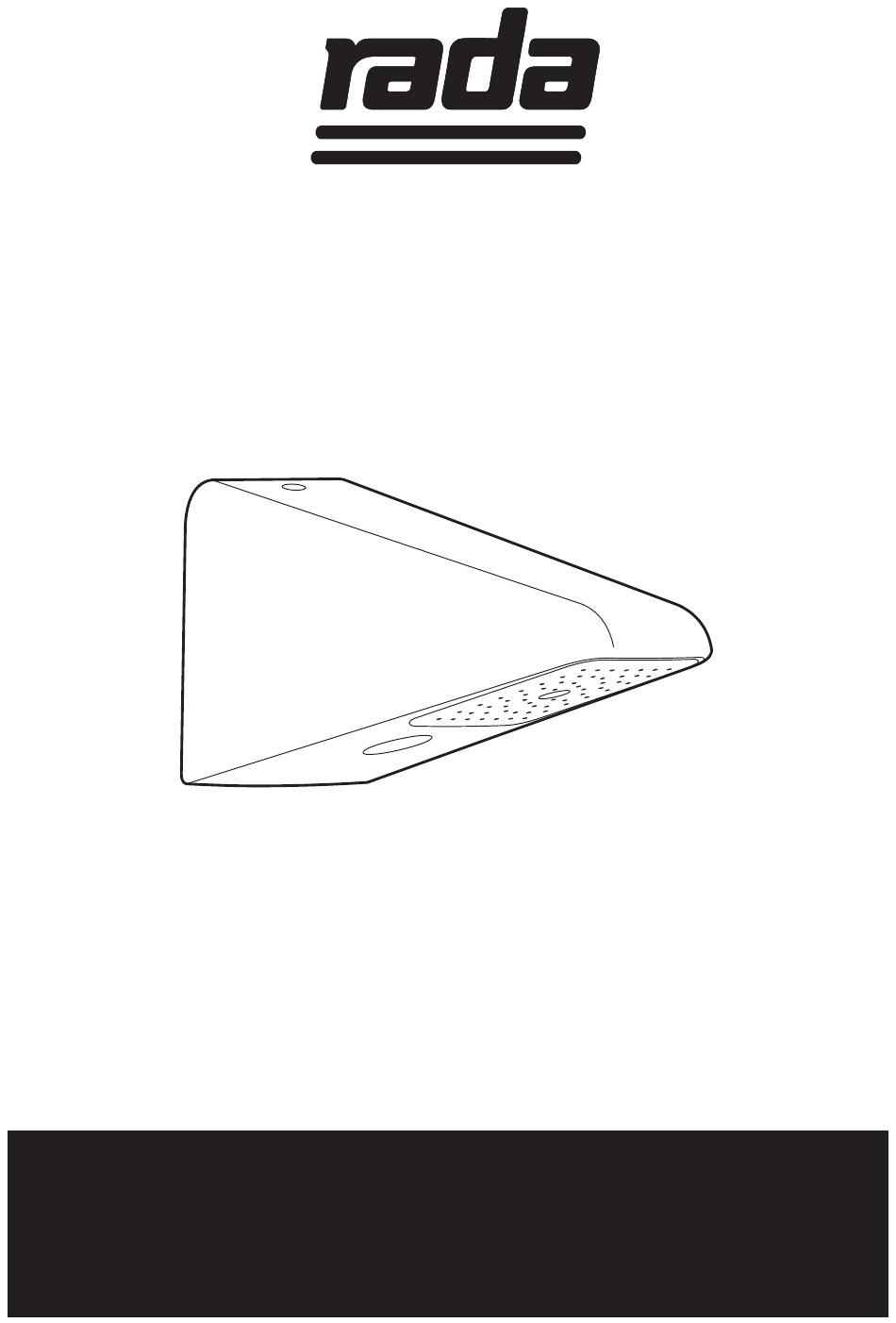

- Page 1 VR2-CC VR2-RS VR2-ES PRODUCT MANUAL IMPORTANT INSTALLER: THIS MANUAL IS THE PROPERTY OF THE CUSTOMER AND MUST BE RETAINED WITH THE PRODUCT FOR MAINTENANCE AND OPERATIONAL PURPOSES.
-
Page 2: Table Of Contents
Safety : Warnings ..................3 Pack Contents ..................4 Dimensions ....................5 Specifications ..................6 Installation ....................9 Rada VR2-CC ................... 10 Rada VR2-RS ..................12 Rada VR2-ES ..................14 Maintenance ................... 16 General ....................16 Procedure - Changing or Removing the Flow Regulator....16 Procedure - Changing Spray Plate Angle........... -
Page 3: Introduction
INTRODUCTION Rada Shower Fittings are specified to meet the highest standards of safety, comfort and economy as demanded by today’s users. All Rada products are designed, manufactured and supported in accordance with accredited BS EN ISO 9001:2000 Quality Systems. Design Registration... -
Page 4: Pack Contents
PACK CONTENTS Tick the appropriate boxes to familiarise yourself with the part names and to confirm that the parts are included. Rada VR2-CC Rada VR2-RS Rada VR2-ES 2 x Wall Plugs 1 x Mounting Bush (ES Version Blanked off) ... -
Page 5: Dimensions
DIMENSIONS Rada VR2-CC Rada VR2-RS Rada VR2-ES Dimensions in Millimetres... -
Page 6: Specifications
Installations must comply with all Local/National Water Regulations/Bye-laws (Scotland), Building and Plumbing Regulations. Rada products are precision engineered and should give continued superior and safe performance, provided: - they are installed, commissioned, operated and maintained in accordance with these recommendations. - Page 7 Flow Regulator: Engineering plastic. Strainer: Stainless steel. Security Kit: Plated mild steel (Optional extra). Rada Pipe: 15 mm x 700 mm stainless steel (Optional extra). All screws in contact with water are stainless steel. Pressure Loss/Flow Rate Curves Pressure Loss / Flow rate Curves...
- Page 8 Spray Patterns at 9 l/min VR2 spray plate 10° 20° Inner Outer Edge Edge Spray Width (Metres) Spray Width (Metres)
-
Page 9: Installation
(Hexagonal Wrench supplied). The Rada VR2-CC, VR2-RS and VR2-ES may be bolted through the mounting bush onto the Rada VR Security Kit (optional), which is mounted within the wall or behind a panel, for extra mounting security. -
Page 10: Rada Vr2-Cc
Rada VR2-CC The Rada VR body fits directly onto a 15 mm pipe projecting through the 15 - 40mm wall. Ensure this inlet pipe extends 15mm to 40mm from the finished wall surface. Remove any burrs from the end of the pipe. - Page 11 Secure the mounting bush to the wall Wall Plugs with the fixing screws. Slide the olive and nut over the inlet Outlet pipe and screw the nut to the mounting Pipe bush. Ensure the ‘O’ seal is fitted to the mounting bush.
-
Page 12: Rada Vr2-Rs
Rada VR2-RS Finished Wall The supply pipe from the VR body must Surface terminate at the wall surface with a 1/2” BSP female thread. The end of the fitting must be flush with, or below the finished surface of the wall. - Page 13 Screw the mounting bush onto the ø 15 mm brass nipple until the back of the mounting bush is flush with the wall. Mark the position of the two fixing holes. Remove both the mounting bush and the brass nipple. ø...
-
Page 14: Rada Vr2-Es
Rada VR2-ES 2.5mm Hexagonal Undo the grub screw on the VR body Wrench with the 2.5 mm hexagonal wrench provided, and remove the mounting bush. Grub Screw Mounting Bush VR Body Place the mounting bush on the wall and mark the fixing hole positions. - Page 15 Secure the mounting bush to 2.5mm Hexagonal Wrench the wall. Grub Screw Ensure the ‘O’ seal is fitted to the mounting bush. Fit the spray body to the mounting bush and secure with the grub screw. Ensure ‘O’ Seal Is Fitted Mounting Bush Check the 'O' seal is fitted in the shower fitting inlet hole.
-
Page 16: Maintenance
Wrench provided), and will require periodic descaling, dependent upon the hardness of the water supplies. When ordering spare parts, please state product type, i.e. Rada VR2-CC, Rada VR2-RS or Rada VR2-ES and identify part name and number. Refer to section:'Spare Parts'. Procedure - Changing or Removing the Flow Regulator Use the 3 mm A/F Hexagonal Wrench (supplied) with the VR body and remove the screw at the centre of the spray plate, remove the spray plate. -
Page 17: Procedure - Changing Spray Plate Angle
Procedure - Changing Spray Plate Angle Use the 3 mm A/F Hexagonal Wrench (supplied) with the VR body and remove the screw at the centre of the spray plate. Remove and rotate spray plate through 180 to give the minimum angle spray of 10 Assemble the spray plate in the reverse order of removal. -
Page 18: Spare Parts
SPARE PARTS Rada VR2-CC 441.66 Mounting Bush 618.22 Grub Screw 857.33 9 l/min Flow Regulator Assembly (with orange restrictor) 857.34 6 l/min Flow Regulator Assembly (with grey restrictor) 1652.015 Spray Plate Chrome 1652.016 VR Squared Seal Pack 441.66 618.22 857.33 857.34... -
Page 19: Rada Vr2-Rs
Rada VR2-RS 090.27 Mounting Bush 555.96 Nipple 618.22 Grub Screw 857.33 9 l/min Flow Regulator Assembly (with orange restrictor) 857.34 6 l/min Flow Regulator Assembly (with grey restrictor) 1652.015 Spray Plate Chrome 1652.016 VR Squared Seal Pack 090.27 618.22 555.96 857.33... -
Page 20: Rada Vr2-Es
Rada VR2-ES 090.27 Mounting Bush 618.22 Grub Screw 857.33 9 l/min Flow Regulator Assembly (with orange restrictor) 857.34 6 l/min Flow Regulator Assembly (with grey restrictor) 1652.015 Spray Plate Chrome 1652.016 VR Squared Seal Pack 090.27 618.22 857.33 857.34 1652.015... -
Page 21: Accessories
AD35 Extended Connection Nipple (Part No. 555.74) 250 mm x 1/2" BSP parallel nipple (to BS2779) VR Security Kit Rada Riser Pipe (Part No. 936.94) (Part No. 936.03) concealed mounting plate stainless steel, 15 mm x 700 mm supply offering even greater security, pipe for use with VR2-ES. -
Page 22: Notes
NOTES... - Page 23 NOTES...
-
Page 24: Customer Care
Spare Parts All functional parts of Rada products are kept for up to ten years from the date of fi nal manufacture. If during that period, our stock of a particular part is exhausted we will, as an alternative, provide an equivalent new product or part at a price equating to the cost of repair to the old, bearing in mind the age of the product.
