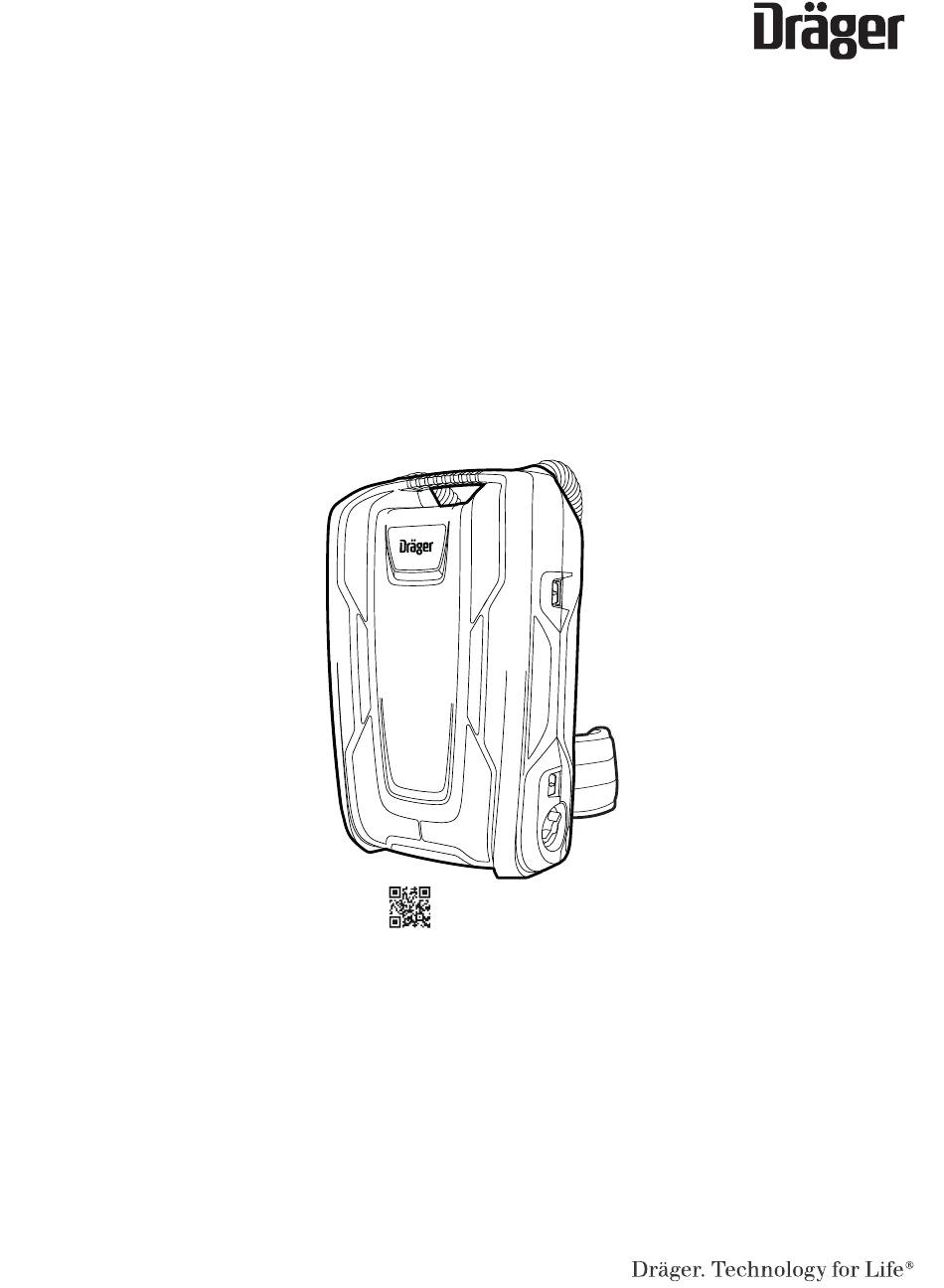

- Page 1 Instructions for use Dräger BG ProAir More languages available for download at draeger.com/ifu Dräger BG ProAir...
- Page 3 0:02 elapsed time...
- Page 4 Dräger BG ProAir RU Это руководство по эксплуатации можно скачать в DE Diese Gebrauchsanweisung kann in weiteren электронном виде и на других языках, Sprachen in der Datenbank für Technische Dokumen- воспользовавшись нашей базой технической tation (www.draeger.com/ifu) in elektronischer Form документации (www.draeger.com/ifu).
-
Page 5: Table Of Contents
Order of maintenance work........5.2.3 Disassembling the closed-circuit breathing apparatus ............. 5.2.4 Cleaning and disinfecting ........5.2.5 Assembling the closed-circuit breathing apparatus ............. 5.2.6 Testing the closed-circuit breathing apparatus ..5.2.7 Maintenance work on components ...... Instructions for use Dräger BG ProAir... -
Page 6: Safety-Related Information
Indicates a potentially hazard- ous situation. If not avoided, it absorber could result in damage to the product or environment. Window for buddy-light Connect ECU ("Electronic Control Unit") 27-1 Graphical pressure display 27-2 Cylinder pressure Instructions for use Dräger BG ProAir... -
Page 7: Functional Description
During the incident, additional oxygen is supplied in ment for 30 seconds. the breathing circuit via the minimum valve in accordance with breathing intensity. The bypass button lets the user add oxygen to the breathing circuit at any time. Instructions for use Dräger BG ProAir... - Page 8 30 seconds). If any movement is detected within the following approx. 15 seconds, the pre-alarm is cancelled. If no – When the function key is removed motion is detected, the main alarm sounds. Instructions for use Dräger BG ProAir...
-
Page 9: Status Indicators
If the closed-circuit breathing apparatus is used at temperatures. temperatures below -6 °C, this may lead to shorter life cycles (see "Technically possible period of use", page 27). Instructions for use Dräger BG ProAir... -
Page 10: Restrictions To The Usage Period
3.6.1 Type-identifying marking Menu: Charge status of battery is critical. There is no The type-identifying marking of the BG ProAir - Class 4P is charge left in the battery and the Connect ECU switches located on the approval label. -
Page 11: Use
1500 km. apparatus showed no faults (see "Testing the closed- circuit breathing apparatus", page 22). – The requirements, as described in chapter 4.1.2 and 4.1.3, have been met. Instructions for use Dräger BG ProAir... -
Page 12: Reuse
9. Evenly pull the shoulder straps tight and adjust them so that the apparatus is comfortable to wear. 10. If necessary, close the chest strap and pull tight. 11. Don the full face mask. Instructions for use Dräger BG ProAir... -
Page 13: During Use
Lift the closed-circuit breathing apparatus over your head and away from your body. Place the closed- circuit breathing apparatus upright on the ground. Do not drop the apparatus! 7. Have the closed-circuit breathing apparatus serviced. Instructions for use Dräger BG ProAir... -
Page 14: Maintenance
The flaps, connecting piece, CO absorber and breathing air cooler are each marked with a triangle or a circle. The end with the narrow flap (marked with a triangle) is secured to the connecting piece on the side Instructions for use Dräger BG ProAir... -
Page 15: Order Of Maintenance Work
Connecting piece The direction of flow is marked with an arrow on the connecting piece. The direction valves and connecting piece are designed to prevent confusion during assembly so that the flow is ensured. Instructions for use Dräger BG ProAir... -
Page 16: Disassembling The Closed-Circuit Breathing Apparatus
2. Remove the waist belt. To do so, grab hold of the split pin on the flap (1) and pull it out of the waist belt plate. Remove the waist belt from the carrying frame. Instructions for use Dräger BG ProAir... - Page 17 3. Release the drainage valve from the carrying frame. 4. Pull the breathing bag out of the closed-circuit breathing apparatus. The breathing bag automatically slides off the minimum valve lever. Instructions for use Dräger BG ProAir...
- Page 18 For information on suitable cleaning agents and disin- fectants and their specifications, see document Replace faulty ice packs or cooling elements. 9100081 at www.draeger.com/IFU. Instructions for use Dräger BG ProAir...
-
Page 19: Assembling The Closed-Circuit Breathing Apparatus
8. Store regeneration coolers at temperatures below 25 °C to allow the latent heat storage medium to regenerate. All components of the closed-circuit breathing apparatus must be completely dry before storage to prevent mould formation. Instructions for use Dräger BG ProAir... - Page 20 4. Place the breathing air cooler in the mounts on the carrying frame. A clicking sound can be heard when the breathing air cooler engages in the locking mechanism. 5. Connect the red medium-pressure hose to the breathing air cooler. Instructions for use Dräger BG ProAir...
- Page 21 It must be clean, free of grease and intact. Replace if necessary. 2. Remove the lock nut from the compressed oxygen cylinder. 3. Place the compressed oxygen cylinder in the cylinder mount. Instructions for use Dräger BG ProAir...
- Page 22 The tests should not be performed in direct sunlight or in a cold room as the air pressure in the device will then change quickly and can result in incorrect test results. Instructions for use Dräger BG ProAir...
- Page 23 2. Tightly pinch the exhalation hose with your hand. Use the 2. Checking the exhalation valve face spanner from the BG ProAir Test Set if necessary. (see "Checking the exhalation valve", page 23). 3. Pump once. The test unit must display at least +10 mbar 3.
-
Page 24: Maintenance Work On Components
The test starts automatically for apparatuses with constant – RZ 7000 (R62500) oxygen dosage. – The following parts from the BG ProAir Test Set The test is carried out. (3722266): ✓ The result of the test is shown after approx. 15 seconds. - Page 25 9. Check whether rattling noises are heard when shaking the planned use and any storage period! refill absorber. If rattling noises are heard, the refill absorber will need to be filled again. 1) Only applies at a cylinder pressure of >150 bar. Instructions for use Dräger BG ProAir...
- Page 26 8. Turn off the Connect ECU. Transport Condensate forms in the breathing circuit during use. After use, transport the closed-circuit breathing apparatus in an upright position so that the condensate can gather in the drainage valve and breathing bag. Instructions for use Dräger BG ProAir...
- Page 27 15 seconds after the pre- alarm Relative humidity 30 % ... 95 % 1) Time until inhalation temperature of 45 °C reached, tested by Dräger, not tested within the scope of the EU type examina- tion Instructions for use Dräger BG ProAir...
- Page 28 Order list Telemetry Designation Order number Transmission power 0.5 W BG ProAir ice cooler cartridge, complete 3701814 Operating frequency 869.5 MHz; 469.9 MHz (UK only) BG ProAir PCM cooler, complete R360280 Restrictions in AZE, BLR, GEO, RUS, SMR BG ProAir training adapter set...
- Page 29 Briefly press red button Open cylinder Follow instructions Pressure on Connect ECU Audible flow sound between +0.5 and 3.0 mbar Low-pressure alarm 1 Close cylinder Gently press red button Warning at approx. 55 bar Instructions for use Dräger BG ProAir...
- Page 30 Addition of oxygen for max. 10 s on Connect ECU Audible flow sound Minimum valve Low-pressure alarm 1 Engage lever in spring holder Close cylinder Gently press red button Pressure between +0.5 and 3.0 mbar Warning at approx. 55 bar Instructions for use Dräger BG ProAir...
- Page 31 Annex Instructions for use Dräger BG ProAir...
- Page 34 Manufacturer Dräger Safety AG & Co. KGaA Revalstraße 1 D-23560 Lübeck Germany +49 451 8 82-0 9300708 – 1114.800 en © Dräger Safety AG & Co. KGaA Edition: 01 – 2021-10 Subject to alterations www.draeger.com Á9300708HÈ...
