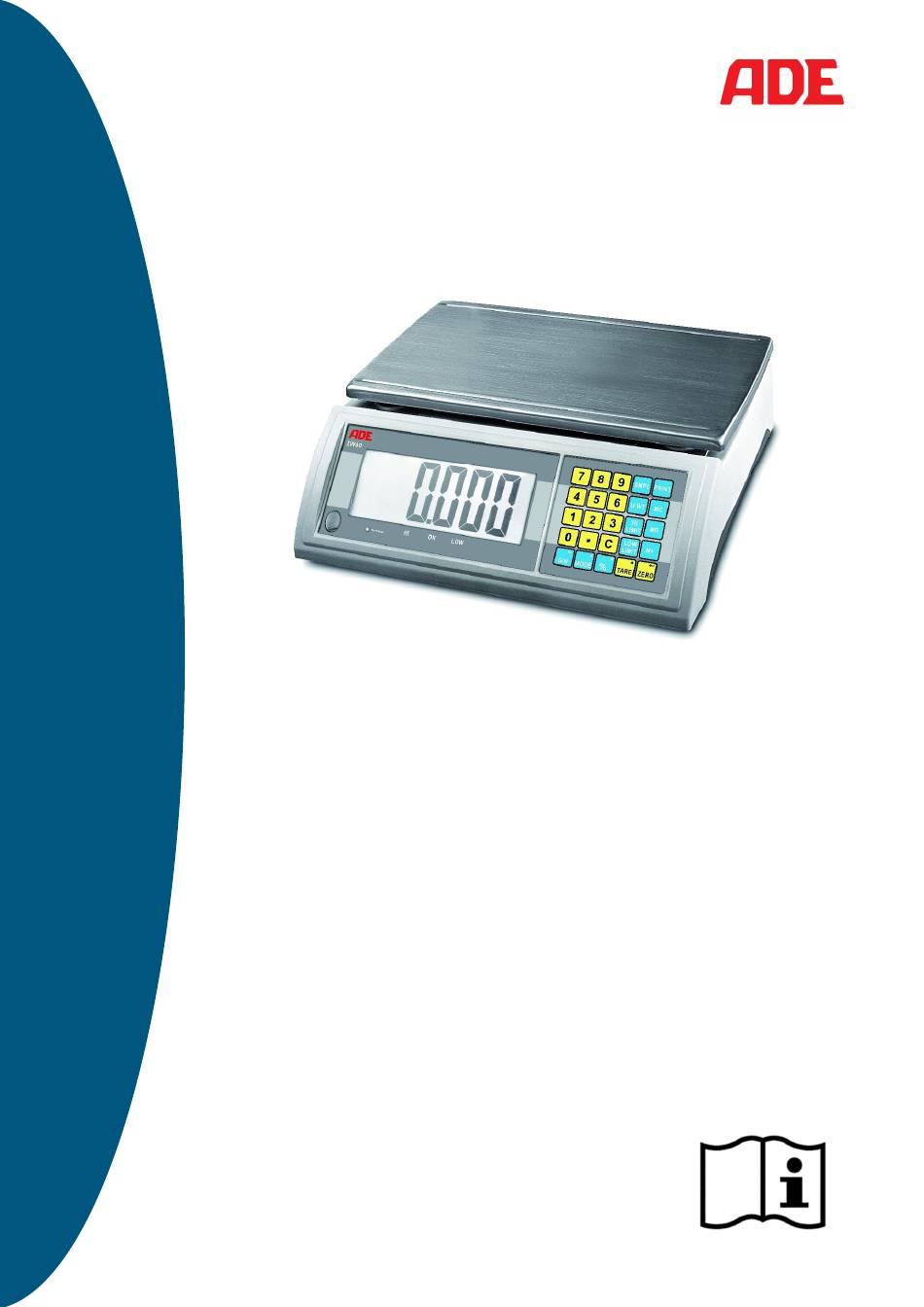

- Page 1 OPERATING MANUAL Electronic table scales Control scale - Model ZW60-45 ZW60-210531-Rev006-UM-en...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........................2 Applications ....................... 3 Delivery contents ....................... 3 Safety instructions ..................... 3 Set up of the scales ....................4 Operating and display elements ................. 5 Operating Controls ....................5 Button terms and functions ..................5 Display symbols ....................... -
Page 3: Applications
- The ZW60-45 scale has a rated capacity of 45 kg with a digit interval of 1 g. - All scales are equipped with stainless steel weighing platforms and ABS plastic housings. -
Page 4: Set Up Of The Scales
- Use the scale at constant ambient temperatures and avoid using in draughts, otherwise the measurement results could be falsified. - Place the scale as far as possible from other devices or sources that generate electroma- gnetic field or other interferences (e.g. strong motors and portable and mobile HF commu- nication devices) as these can falsify the measurement results. -
Page 5: Operating And Display Elements
5. Operating and display elements Operating Controls Button terms and functions Symbol Description Function Sets the zero point for all next weighing operations. Zero is displayed. ZERO Zeroing Secondary function: Confirms (“Enter”) adjustable parameters or other functions. Tares the scales. Saves the current weight as a tare value, subtracts the tare value from the weight and displays the results. -
Page 6: Display Symbols
Memory recall button. Displays the summed total weight from the Memory recall memory. Memory clear button. Clears the summed total weight from the Clear memory memory. If the scale is in weighing mode, this button switches it to Piece counting mode. SMPL counting If the scale is in counting mode, this button switches it back to... -
Page 7: Battery Status Indicator
Battery status indicator The scales are intended for rechargeable battery and/or mains operation. The rechargeable battery life is up to 100 hours depending on the set parameters. When the rechargeable battery needs to be recharged, the battery symbol appears on the display. -
Page 8: Determining The Weight
When the container is removed, a negative value is shown on the display. If the scale has been tared before removing the container, this value will be the gross weight of the container plus all products that have been removed. “ZERO” appears on the display. Determining the weight To determine the weight, first possibly tare the container as described above. -
Page 9: Presetting The Maximum And Minimum Values For Audible Alarm
Presetting the maximum and minimum values for audible alarm The ZW60 checkweighing scale has a programming function that emits an audible signal when a user-defined number of pieces or weight is either reached (minimum) or exceeded (maximum). More information about the audible signal setting can be found in chapter “Parameters”. - In weighing mode, press the HI LIMIT or LOW LIMIT button to recall the currently stored maximum or mini-mum weight. -
Page 10: Manual Totaliser
6.7.1 Manual totaliser The scale can be set so that the weight valueson the display are added to the values in the totaliser by pressing the M+ button. The display shows “AC 1” first and then the currently stored total weight for approx. 2 seconds before returning to the normal weighing mode. -
Page 11: Parameters
7. Parameters To set the parameters, go to a saved menu. The parameters are divided into two sections: one section for the user and the other one for the authorised technician. To set the parameter menus, press the TARE button during the test run of the display after switching it on. - Page 12 PARA- SUB-PARA- DISPLAY SETTING METER METER Question mode, bi-directional. Command R: Read data, Command T: Tare, Command Z: Zero. P7 Prt Printer settings. P8 LP Printer language selection setting. b 600 b 1200 Setting the required baud rate for communication speed via the RS232 interface.
-
Page 13: Care And Maintenance
8. Care and maintenance Cleaning Disconnect the mains plug before cleaning the scale. Use only a damp cloth or an ordinary disinfectant for cleaning. Do not use aggressive liquid cleaning agents, abrasive or acidic detergents or white spirit. Make sure that no liquid cleaning agent or water penetrates the scale and always follow the manufacturer's instructions for use. -
Page 14: Disposal
Warranty ADE will repair or replace this product if evidence is provided that it has failed within 1 year from the date of sale (proof of purchase is required) due to lack of workmanship or defective material. -
Page 15: Technichal Data
9. Technichal Data Model: ZW60-45 Capacity 45 kg Graduation d Resolution 1:45,000 Tare range up to 45 kg Reproducibility Linearity ± Units of measurement Interface RS232 data output (optional only, not upgradeable) Stabilisation time Typically 2 seconds Operating temperature 0°C – 40°C... -
Page 16: Declaration Of Conformity
RoHS Directive 2011/65/EC in the currently valid versions. This declaration will lose its validity if any modification is made to the scale without our consent. Hamburg, May 2021 ADE Germany GmbH Neuer Höltigbaum 15 D-22143 Hamburg Manufacturer: ADE Germany GmbH Neuer Höltigbaum 15... - Page 17 ZW60-210531-Rev006-UM-en...
- Page 18 ZW60-210531-Rev006-UM-en...
- Page 19 ZW60-210531-Rev006-UM-en...
- Page 20 Händler: ZW60-210531-Rev006-UM-en...
