OPERATING MANUAL
Electronic counting scale
Counting scale of HWZ series
HWZ-190214-Rev006-UM-en
ADE Germany GmbH & Co. KG
Hammer Steindamm 27-29
22089 Hamburg, GERMANY
℡ +49 (0) 40 432776-0
info@ade-hamburg.de
PLEASE KEEP FOR FUTURE REFERENCE
+49 (0) 40 432776-10
IMPORTANT
READ CAREFULLY BEFORE USE
Advertisement
Table of Contents
Related Manuals for ADE HWZ Series
Summary of Contents for ADE HWZ Series

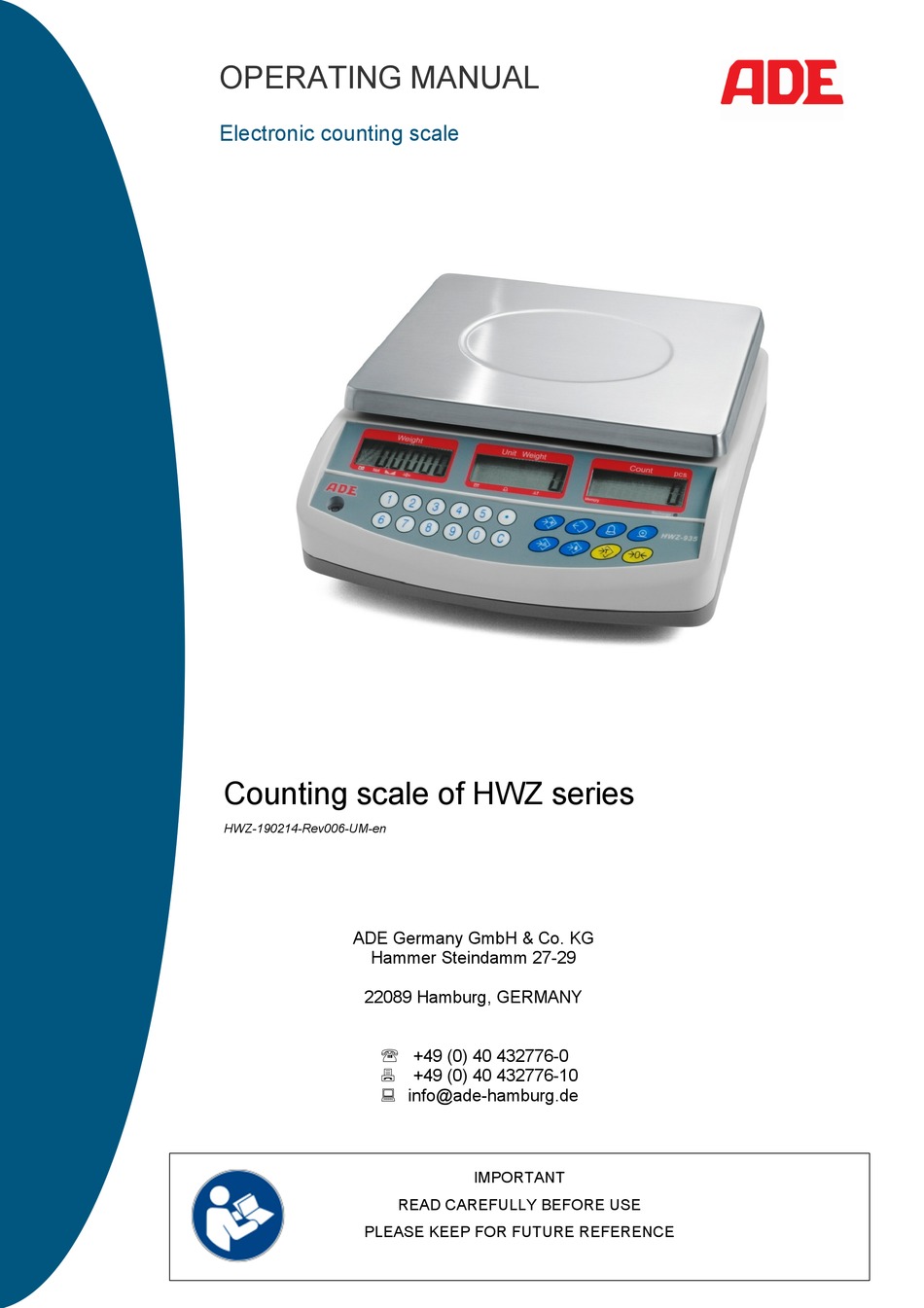

- Page 1 OPERATING MANUAL Electronic counting scale Counting scale of HWZ series HWZ-190214-Rev006-UM-en ADE Germany GmbH & Co. KG Hammer Steindamm 27-29 22089 Hamburg, GERMANY ℡ +49 (0) 40 432776-0 +49 (0) 40 432776-10 info@ade-hamburg.de IMPORTANT READ CAREFULLY BEFORE USE PLEASE KEEP FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Table of Contents Applications ..........................3 Delivery contents ........................3 Warnings ........................... 3 Set up of the scales ........................4 Overview ............................ 4 Key functions ..........................5 Display description ........................5 Weight window (WEIGHT)......................6 Unit weight window (UNIT WEIGHT) ..................6 Count window (COUNT) ...................... -
Page 3: Applications

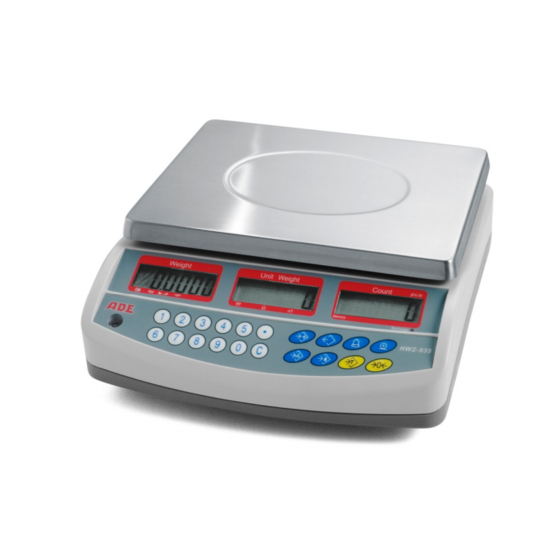

Applications The digital HWZ series offers precise, fast and diverse counting and checkweighing and is intended for use in areas that are not regulated by law. Scales of HWZ series are represented by 3 models with capacities up to 30 kg. -
Page 4: Set Up Of The Scales
Set up of the scales 1. Carefully remove the delivery contents from the packaging. 2. Place the scale on a stable, horizontal surface. Do not place the scale on a shaky or vibrating table as this will cause distortion of measurement results. 3. -
Page 5: Key Functions
Key functions Button Description Function symbols Adds the current number of units to the total- iser. Up to 99 values or up to the full capacity Addition key of the tare range in the “Weight” window can be added. Also prints the displayed values when self-printing is switched off. -
Page 6: Weight Window (Weight)
Weight window (WEIGHT) This window has a 5-digit display to show the weight on the scale. The arrows above the symbols indicate: Zero position Low battery voltage, Net weight Stability Unit weight window (UNIT WEIGHT) This window shows the unit weight of a sample. This value is either entered by the user or calculated by the scale. -
Page 7: Taring
Taring There are two methods of entering a tare value. The first is based on the weight that is on the weighing platform and the second is based on a value entered by the user. 8.2.1 First method: Set the scale to zero by pressing the key. -
Page 8: Weighing A Sample To Determine The Unit Weight
8.3.2 Weighing a sample to determine the unit weight To determine the average weight of the individual units to be counted, it is necessary to place a known number of units on the scale and then enter the number of units to be weighed. The scale then divides the total weight by the number of units and the average unit weight is ... -
Page 9: Automatic Update Of The Unit Weight
8.4.1 Automatic update of the unit weight The scale automatically updates the unit weight if the number of units on the scale is less than the reference number of units. An acoustic signal sounds when the value is updated. It is safer to check that the number of units is correct when the unit weight has been updated automatically. -
Page 10: Automatic Totaliser
You can add more products. To do this, press each time. This process can save up to 99 entries or the full capacity of the “Weight” window. To view the saved total value, press the key. The total sum is displayed for 2 seconds. ... - Page 11 The functions F1 CAL and F8 GrV are only reserved for specialist personnel authorised by the manufacturer. Accidental or intentional changes to these parameters by unauthorised persons can sig- nificantly affect the scale functionality “Weight” Description display F2 DI Sets the scale step.
-
Page 12: Power Supply And Consumption, Backlight
Power supply and consumption, backlight Power supply 1. 6 V/DC / 4 Ah internal rechargeable battery 2. Cold device power cord via 230 V power connection Power consumption 1. approx. 20 mA DC (without backlight) 2. approx. 40 mA DC (with backlight) Battery The scales are intended for rechargeable battery and/or mains operation. -
Page 13: Error Messages
Error messages An error message may appear on the scale display during the switch-on self-test or during operation. The meaning of the error messages is described below. If an error message is displayed, switch off the scale, then switch it on again, repeat the procedure that caused the error message, and finally perform calibration or other functions. -
Page 14: Care, Maintenance And Guarantee
"Poles" are disposed of as otherwise they may short-circuit! Warranty ADE will repair or replace this product if evidence is provided that it has failed within 1 year from the date of sale (proof of purchase is required) due to lack of workmanship or defective material. All moving parts, such as batteries, cables, etc. -
Page 15: Technical Data
Technical data Model: HWZ-6 HWZ-15 HWZ-30 Maximum load: 6 kg 15 kg 30 kg Digit display: 0.2 g 0.5 g Resolution 1:30.000 1:30.000 1:30.000 Tare range -6 kg -10 kg -30 kg Reproducibility 0.2 g 0.5 g Linearity ± 0.8 g Interface RS232 data output (optional - cannot be retrofitted) Stabilisation time... -
Page 16: Declaration Of Conformity
This declaration will lose its validity if any modification is made to the scale without our consent. Hammer Steindamm 27-29 D – 22089 Hamburg Hamburg, February 2019 ℡ +49 (0) 40 432776-0 +49 (0) 40 432776-10 ADE Germany GmbH & Co. KG info@ade-hamburg.de Hammer Steindamm 27-29 D-22089 Hamburg HWZ-190214-Rev006-UM-en... - Page 17 HWZ-190214-Rev006-UM-en...
- Page 18 HWZ-190214-Rev006-UM-en...
- Page 19 HWZ-190214-Rev006-UM-en...
- Page 20 Distributor: HWZ-190214-Rev006-UM-en...
