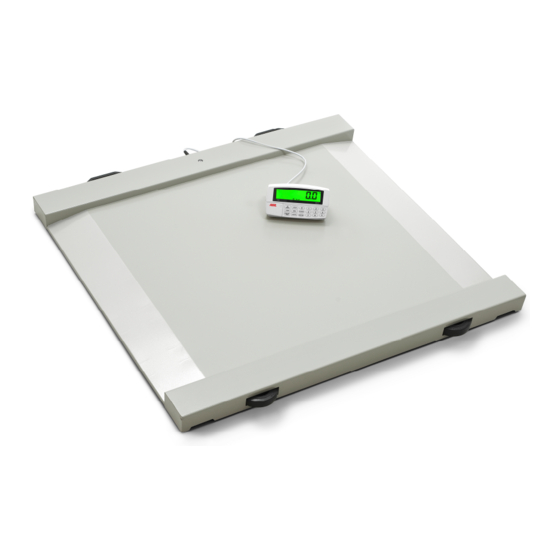

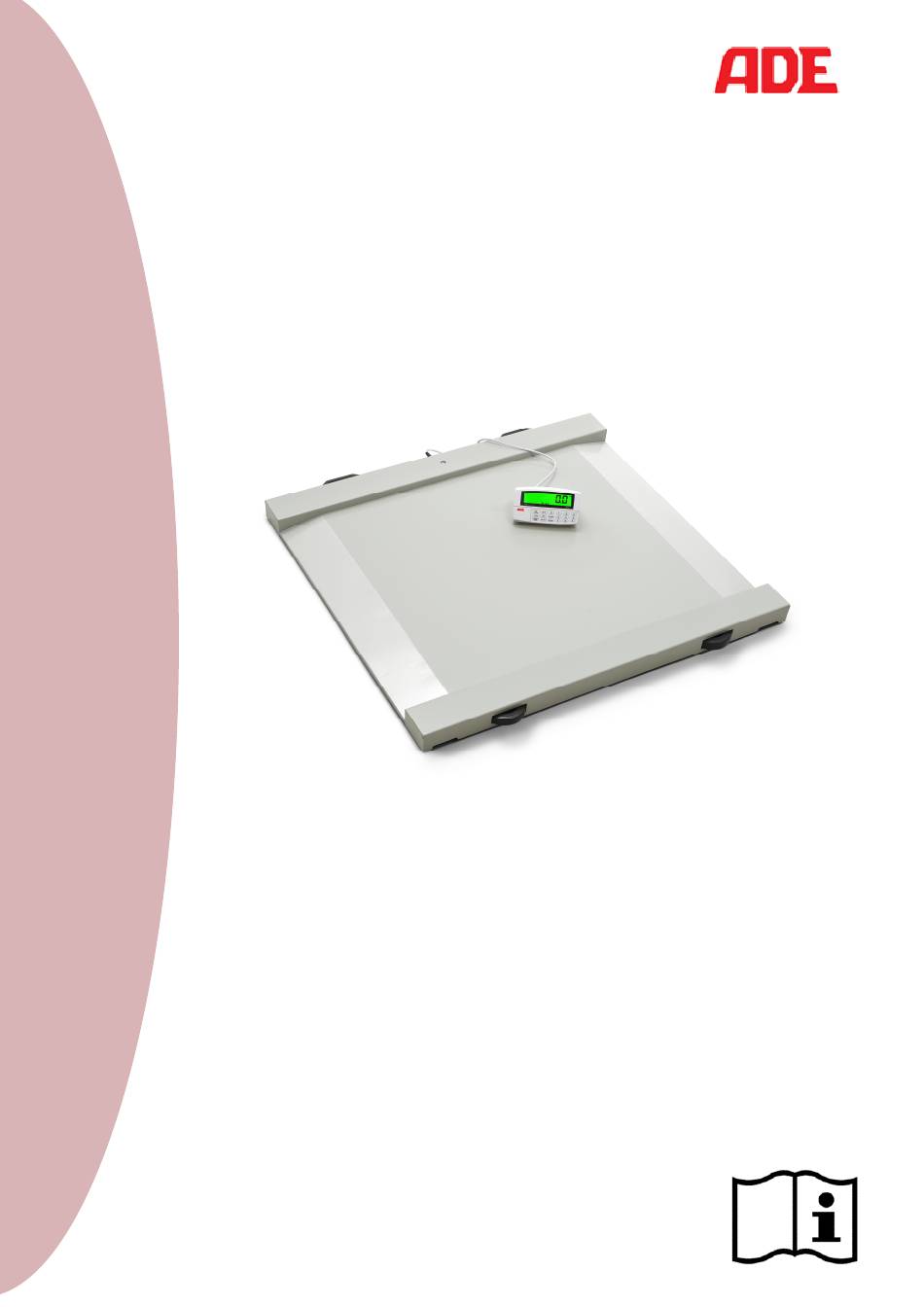

- Page 1 Operating Manual Class III approved Scales Electronic Wheelchair Scales M501020 M501020-210322-Rev006-UM-e...
-
Page 2: Table Of Contents
Installing a rechargeable battery ..................4 Tips for handling the batteries.................... 4 Quality features ........................5 Using the scales for legal metrological applications ............5 ADE-MAK display unit ..........................5 Description ..........................5 Indicator and operating controls ..................6 Features ..........................6 Safety instructions ....................... -
Page 3: Installation And Use Of Scale
Observe the safety instructions! Assembling the scales The ADE-MAK display unit can be mounted on walls or bases, or can be used as a stationary unit on a table. If your scales are not connected to the ADE-MAK, connect your scales to the ADE-MAK scales con- nection point (Fig. -
Page 4: Mains And Battery Connection For The Scales
New batteries are supplied partially charged. Some batteries only achieve their full capacity af- ter several complete charge and discharge cycles. When disposing of disused batteries, observe the valid legal and municipal regulations. Never dispose of batteries in fire as they can leak or explode! M501020-210322-Rev006-UM-e... -
Page 5: Quality Features
ADE-MAK display unit Description The ADE-MAK is a digital precision display unit for medical use in hospitals by doctors, specialists and paediatricians. The compact design and optional battery operation make the ADE-MAK ideal for port- able use. The unit in particular features easy operation, high efficiency and long-lasting operation (over 200 hours in power save mode). -
Page 6: Indicator And Operating Controls
An RS-232 interface, full-duplex, with configurable address (for PC connection). – An RS-232 interface, semi-duplex (for printer connection or remote display). – One print format (500 characters). – Power save mode (adjustable unit shutdown, adjustable shutdown of the background light). M501020-210322-Rev006-UM-e... -
Page 7: Safety Instructions
Before using high-frequency surgical equipment, defibrillators, etc. read their respective operating manuals. – Only ADE power adapters may be used to avoid any risk of fire and electric shock. – Clean with a dry cloth; do not use any sharp cleaning materials. -
Page 8: Status Displays
The PC connection only supports the RS-232 interface. The printer connection offers both an active 20mA output and also the RS-232 interface. Both interfaces are configured via the SERIAL menu. EDP port (RS-232C, can be used for PC, printer or remote display) To Personal Computer To Printer or Remote Display M501020-210322-Rev006-UM-e... -
Page 9: Housing And Connections
The mains connection, serial connection and weighing cell connection points are located on the back of the ADE-MAK housing. The set-up switch to start configuration mode is recessed underneath the housing. It is protected by a cover plate and secured by a cylinder head screw (not shown in Fig. 2-1). -
Page 10: Modes
(using an LCD status indicator; if NET is on the display then the weight shown is net, oth- erwise it is gross weight). Following initial configuration and sealing (by attaching a calibration sticker to the back of the unit), the ADE-MAK can only be operated in this mode. Setting mode Date, time and consecutive numbers for print commands are set in setting mode. -
Page 11: Settings
The values for different parameters can be set in configuration mode and the display unit calibrated. This function is reserved for service personnel. Test mode There are different diagnostic functions for the ADE-MAK in test mode; this is reserved for service personnel. Manipulations to test and configuration modes can revoke the calibration status and... -
Page 12: Setting The Weight Unit
The ADE-MAK changes automatically to weight mode. If the tare value has been entered correctly, the value will be saved in the unit. Press the ENTER key (or TARE). The ADE-MAK is now ready for weighing and changes to net mode [NET status indicator (5) is on]. -
Page 13: Hold Function
You need the height of the test subject to determine the body mass index. This is most easily calculat- ed with an ADE measuring rod model MZ10023 or 10032. Start the scales and weigh the subject. Then press the BMI key (11) to start BMI mode. The last value entered appears on the display. -
Page 14: Care, Servicing And Recalibration
The connecting cable between the scales and power unit must be laid in such a way that they do not present a trip hazard. M501020-210322-Rev006-UM-e... -
Page 15: Waste Disposal
Disconnect all connected cables before dispatch. This is how you can avoid unnecessary damage. Warranty ADE will repair or replace this product if proof is shows that it has failed within 2 years of the purchase date (receipt is required) due to faulty work quality or defective materials. All removable parts, e.g. -
Page 16: Technical Specifications
2000 m (6500 ft) maximum Weighing station: Max. Capacity: 300 kg / 660 lbs Graduation: 100 g / 0.2 lb Access to ramp: 41 mm Dimensions: 1070 x 1050 x 70 mm Total weight: 45 kg Working Temperature: 10 to +40 degrees Celsius M501020-210322-Rev006-UM-e... -
Page 17: Conformity Declaration
RoHS Directive 2011/65/EC in the currently valid versions. This declaration loses its validity if modifications are made to the scale without our approval. Hamburg, March 2021 ADE Germany GmbH Neuer Hoeltigbaum 15 22143 Hamburg / Germany Manufacturer: ADE Germany GmbH... - Page 18 M501020-210322-Rev006-UM-e...
- Page 19 M501020-210322-Rev006-UM-e...
- Page 20 M501020-210322-Rev006-UM-e...
