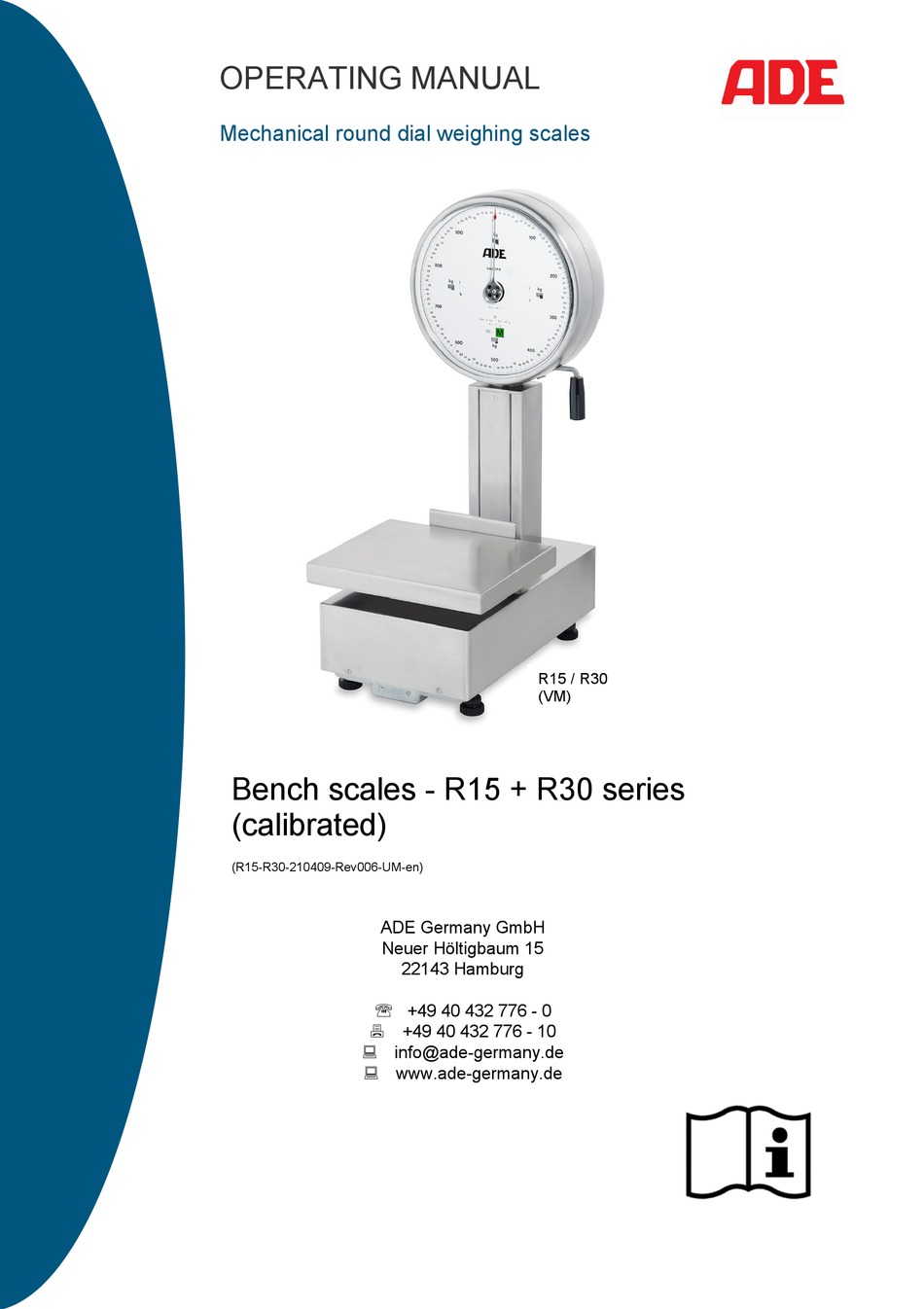

- Page 1 Mechanical round dial weighing scales R15 / R30 (VM) Bench scales - R15 + R30 series (calibrated) (R15-R30-210409-Rev006-UM-en) ADE Germany GmbH Neuer Höltigbaum 15 22143 Hamburg ℡ +49 40 432 776 - 0 +49 40 432 776 - 10 info@ade-germany.de...
- Page 2 Table of Contents Table of Contents ............................ 1 Using the scale ............................2 Releasing the dial mechanism lock ................... 2 Releasing the damper lock ....................2 Adjusting the damper ......................3 Levelling the scale ....................... 3 Potential taring ........................3 Locking up ..........................
- Page 3 Using the scale Carefully unpack the scale and remove all packaging materials. Place the scale on a level, stable surface. Releasing the dial mechanism lock Bring the black locking handle on the scales dial stand to a vertical position to unlock. Releasing the damper lock Loosen the screw on the support lid and then remove the lid.
- Page 4 Adjusting the damper The damper should be adjusted while it is on the grooved wheel on top of the piston rod. If you notice that the pointer moves faster, turn the wheel clockwise. If you notice that the pointer moves slower, turn the wheel counter-clockwise. Levelling the scale Align the scale using the support feet.
- Page 5 Warranty ADE will repair or replace this product if it is proven that it failed within 1 year from the date of sale (proof of purchase is required) due to faulty workmanship or defective materials. The above does not apply to all moving parts such as batteries, cables, power adapters, rechargeable batteries, etc.
- Page 6 Declaration of conformity Declaration of conformity by the manufacturer This product has been manufactured in accordance with the harmonised European standards. They conform to the regulations of the EC-directives listed below: NAWI directive 2014/31/EU in the valid version. This declaration will lose its validity if any modification is made to the scale without our consent. Cavaria, April 2021 ODECA s.r.l.
- Page 7 R15-R30-210409-Rev006-UM-en...
- Page 8 R15-R30-210409-Rev006-UM-en...
