Summary of Contents for ADE M501660

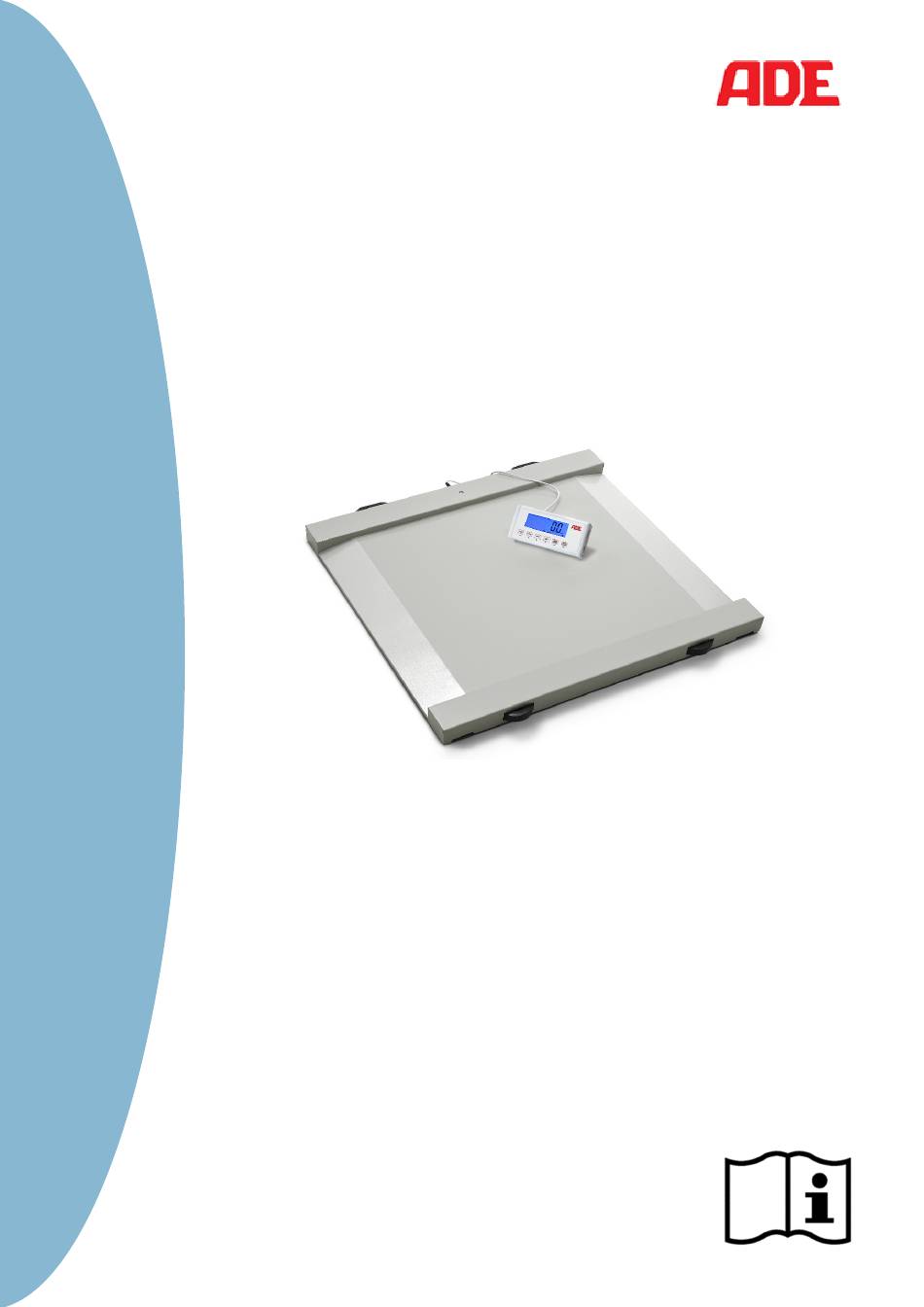

- Page 1 Operating Manual International Range Electronic Wheelchairs M501660 M501660-210512-Rev003-UM-e...
-
Page 2: Table Of Contents
Error Messages ........................7 Cleaning and Maintenance ........................8 Cleaning ..........................8 Storage and Transport ......................8 Warranty – Liability ......................8 Technical data ............................9 CE-marking and Declaration of Conformity ................... 10 Declaration of CE Conformity ................... 10 M501660-210512-Rev003-UM-e... -
Page 3: Introduction
Operating Manual Safety The ADE-display unit corresponds to the latest state of the art technology and complies with standard regulations and directives. Kindly follow the safety instructions in this operating manual, the country- specific installation standards as well as the applicable safety conditions and accident prevention regulations in all aspects. -
Page 4: Assembly And Set Up
24 hours is necessary to achieve a full battery load. The wall socket must be located near to the unit and be easily accessible. Please use only the mains adapter supplied by ADE. The mains adapter is charging the battery pack at the same time. Replacing the rechargeable battery The battery compartment is located at the back of the display 1) Open the battery compartment. -
Page 5: Display
In case the LCD is not displayed is the scale not in the standstill mode. “Hold” Displayed when the hold function is activated “Ib” Displayed when the weighing unit is displayed in pounds “kg” Displayed when the weight is displayed in kilograms M501660-210512-Rev003-UM-e... -
Page 6: Key Description
How to change the unit The scale offers the possibility to select between the weighing mode kg and lb. To change into another mode press the UNIT key. Please check weighing mode after switching on to get proper result. M501660-210512-Rev003-UM-e... -
Page 7: Tare Function
The BMI is now being displayed at the indicator. To correct the given height press the BMI button once again and the display returns to the height mode. To get back into normal weighing mode and leave the BMI modus press the tare button. M501660-210512-Rev003-UM-e... -
Page 8: Evaluation Of The Body Mass Index
Connecting additional devices Connection of printer, PC or remote-display will be done with the RS-232 interface. For connection of additional devices kindly ask your local representative or authorized ADE dealer for further instructions. Print out a record The scales must be at standstill. The standstill status symbol must appear at the screen. -
Page 9: Cleaning And Maintenance
Disconnect all cables before transport and avoid unnecessary damages. Warranty – Liability ADE will repair or replace this product within a period of 2 years from date of delivery applying to defects occurred due to poor material or workmanship (presentation of invoice is necessary). All moveable parts –... -
Page 10: Technical Data
10 to 90% RH without condensation Voltage: 5Vdc Max. Current: 60mA (can power 4-350 ohm bridge, take care the limitation when USB is power supply) Signal connection: 4 or 6 lead with sense leads Max Sensitivity: -3mV/V to +3mV/V Serial port: Full-duplex RS232 M501660-210512-Rev003-UM-e... -
Page 11: Ce-Marking And Declaration Of Conformity
RoHS Directive 2011/65/EU in the currently valid versions. This declaration loses its validity if modifications are made to the scale without our approval. Hamburg, May 2021 ADE Germany GmbH Neuer Hoeltigbaum 15 22143 Hamburg / Germany Manufacturer: ADE Germany GmbH... - Page 12 M501660-210512-Rev003-UM-e...
