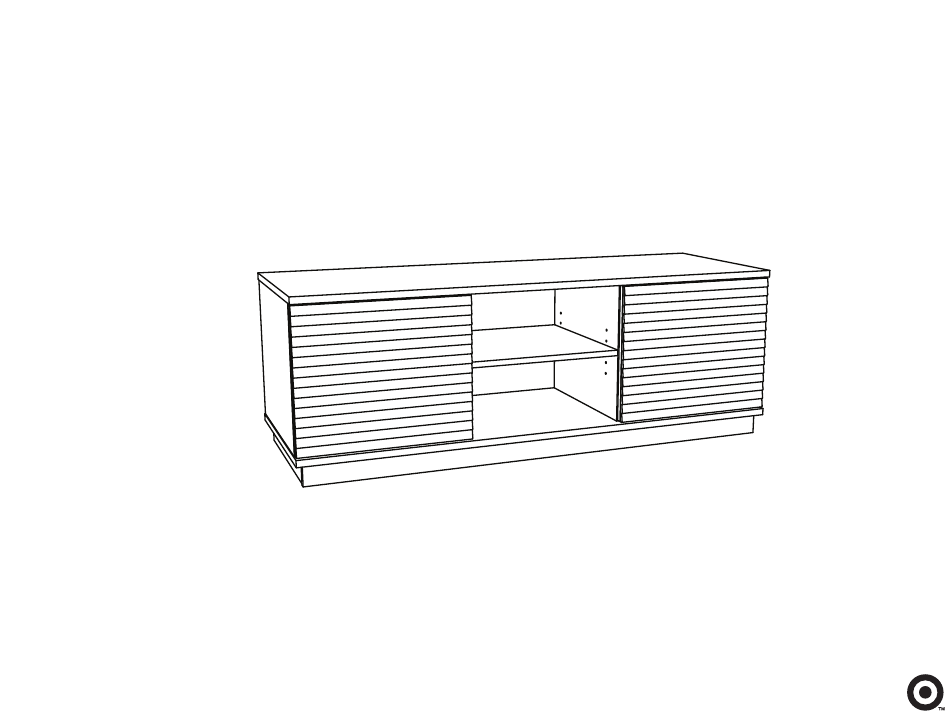

- Page 1 62 entertainment credenza style # 423337 (pale oak) dpci # 249 - 10 - 1970 >> assembly instructions...
- Page 2 • Check the size and weight of your TV. Compare it to the diagram below – before you begin assembly! • This Sauder unit is designed for use with televisions weighing less than 80 pounds. Never use with a TV that weighs more.
- Page 3 Good luck—though we’re confi dent you won’t need it. before you begin 1. Check for damaged or missing parts. Visit www.sauder.com/services to order missing supplies. 2. Use the carton as a working surface to prevent product damage during assembly. 3. Gather all tools prior to assembly.
- Page 4 Record the date you purchased this unit and save the booklet for future For immediate service, our website is available 24 hours a day, reference. If you ever need to contact Sauder about this unit, refer to 7 days a week to order replacement parts, access assembly tips, the lot # and the style # when calling our toll-free number.
- Page 5 part list While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part list to help identify similar parts. ITEM DESCRIPTION QUANTITY...
- Page 6 hardware (11F) x 8 (4G) x 6 (31G) x 4 (60H) x 4 (6I) x 2 (12I) x 2 twist-lock ® fastener metal bracket corner bracket hinge strike plate magnetic catch (6L) x 1 (1R) x 16 (2R) x 12 (1S) x 36 (11S) x 2 warning label...
- Page 7 Assemble your unit on a carpeted fl oor or on the empty carton to avoid scratching your unit or the fl oor. To begin assembly, push a SAUDER TWIST-LOCK FASTENER (11F) into the large holes in the ENDS (A and B) and UPRIGHTS (E).
- Page 8 step 2. (12I) x 2 (51S) x 4 magnetic catch black 9/16" pan head screw Fasten the MAGNETIC CATCHES (12I) to the TOP (C). Use four BLACK 9/16" PAN HEAD SCREWS (51S). NOTE: Position the MAGNETIC CATCHES exactly as shown. 423337...
- Page 9 3. How to use the SAUDER TWIST-LOCK FASTENER ® 1. Insert the dowel end of the FASTENER into the hole of the adjoining part. These holes NOTE: The dowel end of the FASTENER must must be here. remain fully inserted in the hole of the adjoining part The MAGNETIC while locking the FASTENER.
- Page 10 step 4. (1R) x 2 These edges metal pin should be even. Finished edge A tracking label will be on this surface. Please do not remove. Insert two METAL PINS (1R) into the RIGHT END (A). Place the BACK (L) onto the METAL PINS in the RIGHT END. 423337...
- Page 11 step 5. r f a w i t I S T h o u - L O ® r f a w i t I S T - L O ® Fasten the UPRIGHTS (E) to the TOP (C). Tighten four TWIST-LOCK FASTENERS.
- Page 12 step 6. (1R) x 2 r f a metal pin w i t I S T h o u - L O ® Insert two METAL PINS (1R) into the LEFT END (B). Fasten the LEFT END (B) to the TOP (C). Tighten two TWIST-LOCK ®...
- Page 13 step 7. w i t r f a h o l (113S) x 8 black 1-15/16" fl at head screw These edges should be even. Fasten the BOTTOM (D) to the ENDS (A and B) and UPRIGHTS (E). Use eight BLACK 1-15/16" FLAT HEAD SCREWS (113S). NOTE: Start each SCREW a few turns before tightening any of them.
- Page 14 step 8. Finished edge (4G) x 6 (31G) x 4 (1S) x 14 metal bracket corner bracket black 9/16" large head screw (6 used) Fasten the METAL BRACKETS (4G) to the SKIRTS (H and K). Use six BLACK 9/16" LARGE HEAD SCREWS (1S). NOTE: Be sure the METAL BRACKETS are even with the edges of the SKIRTS.
- Page 15 step 9. (1S) x 10 black 9/16" large head screw The MAGNETIC CATCHES must be here. Carefully turn your unit onto the TOP (C). Fasten the SKIRTS (H and K) to the BOTTOM (D). Use ten BLACK 9/16" LARGE HEAD SCREWS (1S) through the BRACKETS on the SKIRTS (H and K) and into the BOTTOM (D).
- Page 16 step 10. (1S) x 12 black 9/16" large head screw Fasten the SKIRTS (J and P) to the BOTTOM (D) and FRONT SKIRT (H). Use eight BLACK 9/16" LARGE HEAD SCREWS (1S) through the CORNER BRACKETS (31G) on the SKIRTS (J and P) and into the BOTTOM (D) and FRONT SKIRT (H). Fasten the SKIRTS (J and P) to the CORNER BRACKETS (31G) on the BACK SKIRT (K).
- Page 17 step 11. Indented holes Indented holes (6I) x 2 (11S) x 2 (12S) x 20 strike plate black 1/2" fl at head screw brown 1" fl at head screw NOTE: Be sure to position the DOORS (M and N) and LOUVERS (O) exactly as shown. Refer to the enlarged view of the LOUVER (O). Fasten the LOUVERS (O) to the DOORS (M and N).
- Page 18 step 12. (60H) x 4 hinge Fasten the HINGES (60H) to the DOORS (M and N). Use the screws in the HINGES. 423337...
- Page 19 step 13. Use these SCREWS. The STRIKE PLATE must be closer to the top edge of the DOOR. Hinge Carefully stand your unit upright. Fasten the LEFT DOOR (N) to the LEFT END (B) as shown. Use the screws in the HINGES. You should start each SCREW a few turns before completely tightening any of them.
- Page 20 step 14. (vertical adjustment) Adjusting screw (horizontal) Mounting screw (depth) (vertical adjustment) Refer to the enlarged diagram to identify the parts on the HINGES. The DOORS may need some adjustments. Follow the text below to make needed adjustments. DOOR ADJUSTMENTS: To adjust the DOORS from side to side (horizontal), turn the adjusting screw in or out.
- Page 21 step 15. WARNING Never use this furniture with a TV that is too large or too heavy. Severe injury or death can occur. The TV and furniture will be unstable and may tip. -The TV must less than 80 lbs. -The base of the TV must be able to sit 80 lbs.
- Page 22 “used” or “as is”, at a distress or going-out-of business sale, or from a liquidator. 3. As the exclusive remedy under this Warranty, Sauder will (at its sole option) repair, replace or refund the value of any defective furniture component. Sauder may require independent confi...
- Page 23 WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following safety information. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result may tip over onto the child.
