Sauder 413322 Instruction Booklet

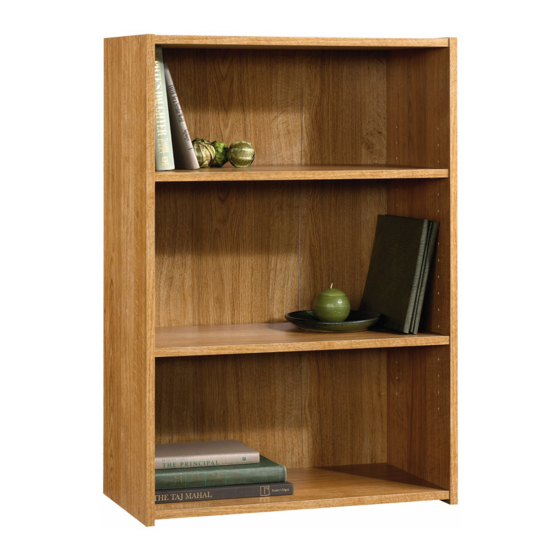

3-shelf bookcase
Hide thumbs
Table of Contents

Advertisement

Quick Links

sauder.com
3-Shelf Bookcase
413322
Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
Here's one for
the books.
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-8
Français pg 9-10
Español pg 11-12
Lot # 360255
02/18/14
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 413322 and is the answer not in the manual?

Questions and answers

Related Manuals for Sauder 413322

Summary of Contents for Sauder 413322

  • Page 1 3-Shelf Bookcase 413322 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. Need help? Visit Sauder.com to view video assembly tips or chat with a live rep. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Prefer the phone? Call 1-800-523-3987. English pg 1-8 Français pg 9-10...
  • Page 2 Assembly Tools Required Part Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identifi cation Assembly Steps Hammer Not actual size Français 9-10 Español 11-12 Skip the power trip. Safety 13-14 This time. Warranty Page 2 413322 www.sauder.com/services...

  • Page 3: Part Identifi Cation

    While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identifi cation to help identify similar parts. A3 END (2) TOP/BOTTOM (2) BACK (1) ADJUSTABLE SHELF (2) www.sauder.com/services 413322 Page 3...
  • Page 4 å Screws are shown actual size. You may receive extra hardware with your unit. RUBBER SLEEVE - 8 METAL PIN - 8 APPLIQUE CARD - 1 BLACK 1-15/16" FLAT HEAD SCREW - 8 NAIL - 25 Page 4 413322 www.sauder.com/services...
  • Page 5 fi n i s h r f a Unfi nished edge Unfi nished edge fi n i s h w i t l e s r f a r f a f e w Unfi nished edge www.sauder.com/services 413322 Page 5...
  • Page 6 Fasten the BACK (C) to your unit using the NAILS (I). The å NAILS should be 5-1/2" apart, 1-1/2" from the corners, and 1/4" in from the edges. NAIL (25 used in this step) 1-1/2" 5-1/2" 1/4" Page 6 413322 www.sauder.com/services...
  • Page 7 Push the RUBBER SLEEVES (F) over the METAL PINS (E). å legs. And, you know, Insert the METAL PINS into the hole locations of your choice your arms. in the ENDS (A3). Set the ADJUSTABLE SHELVES (D) onto the METAL PINS. (8 used) www.sauder.com/services 413322 Page 7...
  • Page 8 å This completes assembly. Clean with your favorite furniture polish or a damp cloth. Wipe dry. å And to celebrate, why not share your success story? 25 lbs. 25 lbs. 25 lbs. 40 lbs. (8 used) Page 8 413322 www.sauder.com/services...

  • Page 9: Français

    QUANTITÉ d’ a chat de cet élément et conserver le livret pour future référence. EXTRÉMITÉ........2 GOUPILLE EN MÉTAL ....8 Pour contacter Sauder DESSUS/DESSOUS ......2 MANCHON EN CAOUTCHOUC ..8 en ce qui concerne cet ARRIÈRE .........1 FICHE D’AUTO-COLLANTS ....1 élément, faire référence au numéro de lot et...
  • Page 10 "d'équerre". Fixer l'ARRIÈRE (C) à l'élément à l'aide des CLOUS (I). Les CLOUS doivent être placés avec une séparation de 14 cm, et 38 mm des coins, et 6 mm en retrait des chants. Page 10 413322 www.sauder.com/services...

  • Page 11: Español

    EXTREMO ........2 ESPIGA DE METAL ......8 et conserver le livret pour future référence. PANEL SUPERIOR/FONDO ....2 MANGUITO DE GOMA ....8 Pour contacter Sauder DORSO ..........1 TARJETA CON APLICACIONES ..1 en ce qui concerne cet ESTANTE AJUSTABLE ....2 TORNILLO NEGRO DE CABEZA élément, faire référence...
  • Page 12 Fije el DORSO (C) a la unidad utilizando los CLAVOS (I). Debe colocar los CLAVOS a una distancia de 14 cm el uno del otro, y a 38 mm de las esquinas y a 6 mm dentro de los bordes. Page 12 413322 www.sauder.com/services...

  • Page 13: Safety

    Les téléviseurs peuvent être un téléviseur. cet eff et. particulièrement lourds. De plus, le poids et l’emplacement du tube image ont tendance à rendre les téléviseurs instables et enclins à tomber vers l’ a vant. www.sauder.com/services 413322 Page 13...
  • Page 14 Además, el peso y la ubicación del tubo de imagen tienden a causar la inestabilidad de televisores y propensa a volcarse hacia adelante. Page 14 413322 www.sauder.com/services...

  • Page 15: Warranty

    GARANTIE LIMITÉE DE 1 AN 1. Sauder Woodworking Co. (Sauder®) off re une couverture de garantie limitée à l’ a cheteur 4. La présente garantie ne s’ a pplique qu’ a ux défauts garantis qui se produisent pour initial du présent produit pendant une période un an à...
  • Page 16 Dear Valued Customer: So, how did it go? Thanks so much for choosing Sauder® furniture. I hope the Set a world record for speed? purchase and assembly process was a positive experience Feeling good about yourself? and you feel good about the furniture you just built. If you Nice.
