Sauder 2-Door Wardrobe/Armoire Clothes Storage Cabinet With Hanger Rod & Shelves White Manual

Hide thumbs

Table Of Contents

Quick Links

sauder.com

BEFORE MAKING ANY RETURNS TO THE STORE.

BEFORE MAKING ANY RETURNS TO THE RETAILER.

sauder.com/service

Visit

Prefer the phone? Give us a ring at

Customer Service is available Monday-Friday - 9 a.m. to 5:30 p.m. EST (except holidays)

Wardrobe/Storage Cabinet

Model 429579

Sauder.com

Share your journey!

to order replacement parts, view video assembly tips, or chat with a live rep.

1-800-445-1527

Store behind

closed doors.

NOTE: THIS INSTRUCTION

BOOKLET CONTAINS IMPORTANT

Safety INFORMATION.

PLEASE READ AND KEEP FOR

FUTURE REFERENCE.

English pg 1-28

Français pg 29-32

Español pg 33-36

Lot # 559598

Purchased: __________________

01/04/21

Table of Contents

Need help?

Do you have a question about the 2-Door Wardrobe/Armoire Clothes Storage Cabinet With Hanger Rod & Shelves White and is the answer not in the manual?

Questions and answers

Stacy

January 18, 2025

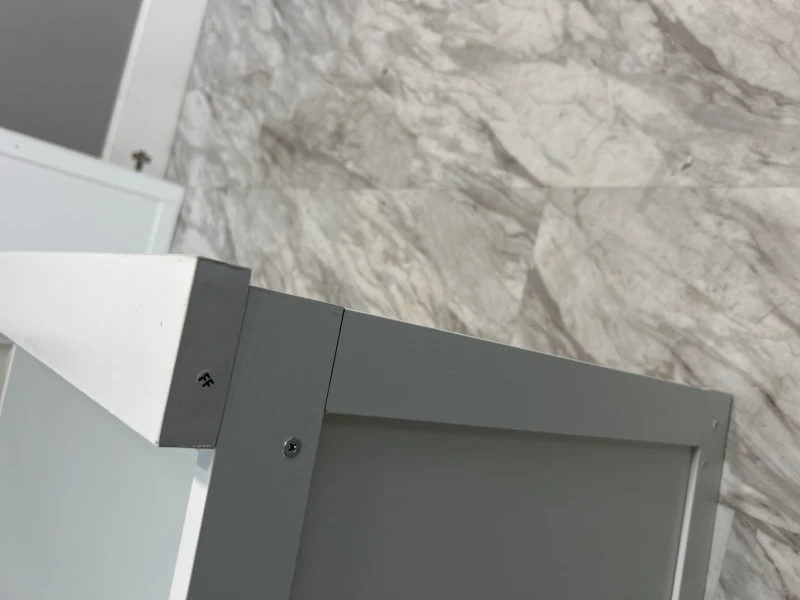

Kick plate isn’t flush

1 comments:

Mr. Anderson

February 4, 2025

To fix a kick plate that isn’t flush on the Sauder 2-Door Wardrobe/Armoire Clothes Storage Cabinet:

1. Check Alignment: Ensure the kick plate is aligned correctly with the other parts of the cabinet.

2. Secure Fasteners: Confirm that all screws or cams attaching the kick plate are tightened properly.

3. Reposition If Necessary: Loosen the fasteners slightly, adjust the kick plate into the correct position, and retighten.

4. Inspect for Obstructions: Verify there are no obstructions or uneven surfaces preventing the kick plate from sitting flush.

5. Review Assembly Instructions: Refer to the manual's steps regarding kick plate installation to confirm it was assembled correctly.

This answer is automatically generated

Summary of Contents for Sauder 2-Door Wardrobe/Armoire Clothes Storage Cabinet With Hanger Rod & Shelves White

Page 1 CONTACT US FIRST CONTACT US FIRST sauder.com sauder.com sauder.com BEFORE MAKING ANY RETURNS TO THE STORE. BEFORE MAKING ANY RETURNS TO THE RETAILER. sauder.com/service Visit to order replacement parts, view video assembly tips, or chat with a live rep. 1-800-445-1527 Prefer the phone? Give us a ring at Customer Service is available Monday-Friday - 9 a.m.
Page 2 Table of Contents Assembly Tools Required Part Identiﬁ cation No. 2 Phillips Screwdriver Hardware Identiﬁ cation Tip Shown Actual Size Hardware Usage Guide Assembly Steps 6-28 Hammer Not actual size Français 29-32 Español 33-36 Safety 37-38 Warranty Page 2 www.sauder.com/service 429579...
Page 3 LEFT DRAWER SIDE (2) UPRIGHT (1) BASE (1) RIGHT DRAWER SIDE (2) TOP (1) LEFT SHELF (1) DRAWER BACK (2) DRAWER BOTTOM (2) BOTTOM (1) LEFT DOOR (1) BACK (1) RIGHT SHELF (2) RIGHT DOOR (1) 429579 www.sauder.com/service Page 3...
Page 4 BLACK 1-1/2" FLAT HEAD SCREW - 30 3/4" FLAT HEAD SCREW - 12 5/8" MACHINE SCREW - 8 1/2" PAN HEAD SCREW - 4 1/2" FLAT HEAD SCREW - 16 5/8" FLAT HEAD SCREW - 12 Page 4 www.sauder.com/service 429579...
Page 5 The arrow in the HIDDEN CAM must point Arrow toward the hole in the edge of the board. Hidden Cam Hole Insert the CAM SCREW or CAM DOWEL into the HIDDEN CAM. Tighten the HIDDEN CAM. 429579 www.sauder.com/service Page 5...
Page 6 Look for this icon. It means a video assembly tip is Step 1 available at www.sauder.com/service/tips Find the numbered video or scan the QR code. Assemble your unit on a carpeted ﬂ oor or on the empty å carton to avoid scratching your unit or the ﬂ oor.
Page 7 BLACK 1-1/2" FLAT HEAD SCREWS (18). NOTE: You should start each SCREW a few turns before å completely tightening any of them. Use the SHORT SCREW from the RESTRAINT KIT. BLACK 1-1/2" FLAT HEAD SCREW (8 used in this step) 429579 www.sauder.com/service Page 7...
Page 8 NOTE: You should start each SCREW a few turns before å completely tightening any of them. NOTE: Be sure the WOOD DOWELS in the UPRIGHT å insert into the TOP. Safety BLACK 1-1/2" FLAT HEAD SCREW Strap (2 used in this step) Roller end Page 8 www.sauder.com/service 429579...
Page 9 NOTE: Be sure the WOOD DOWELS in the UPRIGHT å insert into the RIGHT SHELVES. Unﬁ nished edge BLACK 1-1/2" FLAT HEAD SCREW (4 used in this step) This hole must be here. This hole must be here. 429579 www.sauder.com/service Page 9...
Page 10 Fasten a METAL BRACKET (8) to the upper RIGHT SHELF (F) å and UPRIGHT (C). Use two 1/2" PAN HEAD SCREWS (22). This hole must be here. 1/2" PAN HEAD SCREW (2 used in this step) BLACK 1-1/2" FLAT HEAD SCREW (2 used in this step) Page 10 www.sauder.com/service 429579...
Page 11 Step 6 Insert two LARGE WOOD DOWELS (12) into the BOTTOM (E). å Push the BASE (J) onto the LARGE WOOD DOWELS (12) in å the BOTTOM (E). 429579 www.sauder.com/service Page 11...
Page 12 Step 7 Fasten the RIGHT CABINET RAILS (1) to the RIGHT END (B). å Use six 5/8" FLAT HEAD SCREWS (24). Use these holes 5/8" FLAT HEAD SCREW (6 used in this step) Roller end Page 12 www.sauder.com/service 429579...
Page 13 TOP, BOTTOM, RIGHT SHELVES, TOP MOLDINGS, and BASE. NOTE: You should start each SCREW a few turns before å completely tightening any of them. (14 used) BLACK 1-1/2" FLAT HEAD SCREW (8 used in this step) 429579 www.sauder.com/service Page 13...
Page 14 HIDDEN CAMS. NOTE: Be sure the WOOD DOWELS in the UPRIGHT å insert into the LEFT SHELF. S u r f a c H I D D E N i t h This hole must be here. Page 14 www.sauder.com/service 429579...
Page 15 Step 10 Fasten the remaining METAL BRACKET (8) to the upper LEFT å SHELF (K) and UPRIGHT (C). Use two 1/2" PAN HEAD SCREWS (22). 1/2" PAN HEAD SCREW (2 used in this step) 429579 www.sauder.com/service Page 15...
Page 16 Fasten the remaining ROD HANGER (11) to the LEFT END (A). å Use two 1/2" FLAT HEAD SCREWS (23) though the outer holes in the ROD HANGER. 1/2" FLAT HEAD SCREW (2 used in this step) Page 16 www.sauder.com/service 429579...
Page 17 TOP, BOTTOM, TOP MOLDINGS, BASE and LEFT SHELF. NOTE: You should start each SCREW a few turns before å completely tightening any of them. (12 used) BLACK 1-1/2" FLAT HEAD SCREW (6 used in this step) 429579 www.sauder.com/service Page 17...
Page 18 NOTE: Be sure to tap NAILS into the holes that line up å over the SHELVES (F and K). NAIL (45 used in this step) These holes must line up over the SHELVES (F and K). Page 18 www.sauder.com/service 429579...
Page 19 Step 14 Fasten the HINGES (9) to the DOORS (L and M). Use å twelve 1/2" FLAT HEAD SCREWS (23). 1/2" FLAT HEAD SCREW (12 used in this step) 429579 www.sauder.com/service Page 19...
Page 20 Fasten the RIGHT DOOR (M) to the RIGHT END (B). Use the SCREWS in the HINGES. å Fasten two PULLS (16) to the DOORS (L and M). Use four 5/8" MACHINE SCREWS (21). å Slot Mounting screw Adjusting screw Hinge (4 used) 5/8" MACHINE HEAD SCREW (4 used in this step) Page 20 www.sauder.com/service 429579...
Page 21 Tighten the screws after making adjustments. (vertical adjustment) To adjust the DOORS in or out (depth), loosen the mounting å screw one turn and move the DOORS in or out, as needed. Tighten the mounting screw after making adjustments. 429579 www.sauder.com/service Page 21...
Page 22 Fasten a PULL (16) to a DRAWER FRONT (N). Use two 5/8" å MACHINE SCREWS (21). Turn four CAM SCREWS (7) into the DRAWER FRONT (N). å Arrow 5/8" MACHINE HEAD SCREW (4 used in this step) Page 22 www.sauder.com/service 429579...
Page 23 Slide a DRAWER BOTTOM (R) into the grooves in the DRAWER å SIDES (O and P) and DRAWER BACK (Q). SILVER 1-1/2" FLAT HEAD SCREW (8 used in this step) (4 used) Groove ﬁ n i s h r f a 429579 www.sauder.com/service Page 23...
Page 24 å groove of the DRAWER FRONT (N). NOTE: Be sure the WOOD DOWELS in the DRAWER å SIDES insert into the DRAWER FRONT Be sure the DRAWER BOTTOM inserts into the DRAWER FRONT groove. (4 used) Page 24 www.sauder.com/service 429579...
Page 25 SIDE (P) and a LEFT DRAWER SLIDE (4) to a LEFT DRAWER SIDE (O). Use six 3/4" FLAT HEAD SCREWS (20). Repeat steps 17, 18, 19, and 20 to assemble the other drawer. å 3/4" FLAT HEAD SCREW (12 used in this step) Roller end Roller end 429579 www.sauder.com/service Page 25...
Page 26 Lift the front of the drawer up and slide it into the unit as shown in the large view. 35 lbs. each FIXED RIGHT SHELF 25 lbs. ADJUSTALBLE SHELF Place the glide on the SLIDE behind the glide on the RAIL. (8 used) Page 26 www.sauder.com/service 429579...
Page 27 - Fasten the unit to the wall. Use the LONG SCREW through the other end of the SAFETY STRAP and into the 1/8" hole. å Electric drill with 1/8" bit Mark and drill a 1/8" hole into the wall stud. 429579 www.sauder.com/service Page 27...
Page 28 NOTE: Please read the back pages of the instruction booklet for important safety information. å This completes assembly. Clean with a damp cloth. Wipe dry. å And to celebrate, why not share your success story at sauder.com or Mark and drill a 3/8" hole Electric drill with 3/8" bit into the wall.
Page 29 DESCRIPTION QUANTITÉ REFERENCE DESCRIPTION QUANTITÉ conserver le livret pour future référence. Pour contacter Sauder en EXTRÉMITÉ GAUCHE ..........1 GLISSIÈRE DROITE D'ÉLÉMENT ....2 ce qui concerne cet GLISSIÈRE GAUCHE D'ÉLÉMENT ....2 EXTRÉMITÉ DROITE ..........1 élément, faire référence COULISSE DROITE DE TIROIR ......2 MONTANT................1...
Page 30 REMARQUE : Il est préférable de donner quelques tours de tournevis à chaque VIS avant de les serrer toutes à bloc. REMARQUE : S’ a ssurer d’insérer les CHEVILLES EN BOIS dans le MONTANT dans le DESSUS. Page 30 www.sauder.com/service 429579...
Page 31 VIS À MÉTAUX 16 mm (21). REMARQUE : S'assurer de bien enfoncer les CLOUS dans les Serrer quatre VIS D'EXCENTRIQUE (7) dans le DEVANT trous qui sont alignés sur les TABLETTES (F et K). DE TIROIR (N). 429579 www.sauder.com/service Page 31...
Page 32 ﬁ xer votre appareil au mur. REMARQUE : Prière de lire les informations importantes sur la sécurité ﬁ gurant sur les pages arrière du manuel d’instructions. Ceci complète l'assemblage. Nettoyer avec un tissu humide. Essuyer. Page 32 www.sauder.com/service 429579...
Page 33 RIEL DERECHO DE GABINETE ......2 su referencia futura. Si RIEL IZQUIERDO DE GABINETE .....2 necesita ponerse en EXTREMO DERECHO ..........1 contacto con Sauder en CORREDERA DERECHA DE CAJÓN ...2 PARAL ...................1 cuanto a esta unidad, CORREDERA IZQUIERDA DE CAJÓN ..2 PANEL SUPERIOR ............1...
Page 34 ﬁ rmemente. NOTA: Asegúrese de que los PASADORES DE MADERA en el NOTA: Debe apretar cada TORNILLO unas vueltas antes de PARAL se inserten en el PANEL SUPERIOR. apretar cualquier tornillo ﬁ rmemente. Page 34 www.sauder.com/service 429579...
Page 35 Fije el DORSO (S) a la unidad utilizando los CLAVOS (14). Atornille cuatro BIELAS DE EXCÉNTRICO (7) en la CARA NOTA: Asegúrese de clavar ligeramente los CLAVOS en los DE CAJÓN (N). agujeros que se alinean sobre los ESTANTES (F y K). 429579 www.sauder.com/service Page 35...
Page 36 NOTA: Por favor, lea las páginas de atrás del folleto de instrucciones en cuanto a importante información de seguridad. Esto completa el ensamblaje. Limpiar con un trapo húmedo. Seque con un paño. Page 36 www.sauder.com/service 429579...
Page 37 TOUJOURS décharger les tablettes et les tiroirs, en commençant par les surface supérieures, avant de déplacer le meuble. NE JAMAIS pousser ou tirer un meuble sur de la moquette. Demander à une autre personne de le soulever correctement pour le déplacer et/ou le repositionner. 429579 www.sauder.com/service Page 37...
Page 38 SIEMPRE descargue los estantes y cajones, empezando con las superﬁ cies superiores, antes de moverlo. NUNCA empuje ni tire de los muebles sobre una alfombra. Obtenga que un amigo le ayude a levantarlo correctamente para moverlo y/o reposicionarlo. Page 38 www.sauder.com/service 429579...
Page 39 à compter de la date d'achat la première fois et qui sont signalés à Sauder dans les limites de couverture de la contre tout défaut de matériaux ou de fabrication des composantes de mobilier Sauder.
Page 40 BEFORE MAKING ANY RETURNS TO THE RETAILER. Dear Valued Customer: So, how did it go? Thanks so much for choosing Sauder® furniture. I hope the Set a world record for speed? purchase and assembly process was a positive experience Feeling good about yourself? and you feel good about the furniture you just built.
