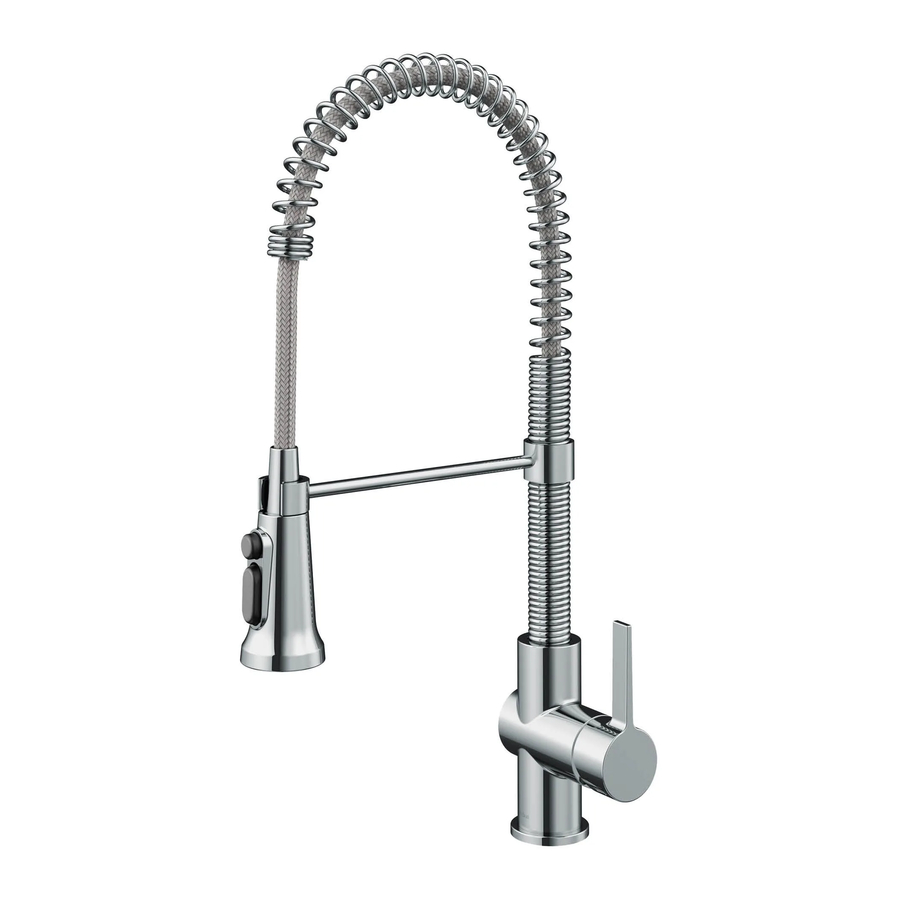

- Page 1 INSTALLATION GUIDE Britt All-in-One Commercial Filter Faucet KFF-1691 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2022 Kraus USA Plumbing LLC I REV. June 16, 2022...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Prior to Installation: · Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. · Read all instructions and safety warnings and ensure you have all tools, parts, and equipment necessary for a safe installation. - Page 4 2.5 mm Hex Wrench Aerator Key 3-Way Connector 1/4 to 3/8 Connector x 2 EZ-Weight Plastic Stabilizing Base For technical assistance or replacement parts, please contact Kraus Customer Service and one of our representatives will be happy to help: Toll-Free: 800-775-0703 or customerservice@kraususa.com...
-
Page 5: Faucet Dimensions
Faucet Dimensions 4 3/4" 10 1/2" (267mm) (120mm) 8 1/2" (216.9mm) 2 1/8" (55mm) Installer Tip: Shut off main water supply before installing new faucet. - Page 6 Step 1. Install the faucet assembly Before installation, ensure that the flange (D) is placed on the bottom of the new faucet assembly (B). Insert the faucet body and all hoses through the hole in the sink. 1. Install the pull down hose with connector first.
- Page 7 Step 3. Connecting the filter connection and water line Connect the 1/4 in. water line from the filtration system by pushing the line into the connector (G). Pull down on the 1/4 in. line slightly to ensure the quick connect fitting has engaged.
- Page 8 Step 4. Attach the counterweight Install the weight on the marked area of the spray hose. Marked Area...
- Page 9 Step 5. 1/4 Filter Connection (optional-sold separately)
- Page 10 Step 6. 3/8 Filter Connection (optional-sold separately)
- Page 11 Step 7. Connect the waterlines Thread the nut (1) on the supply line onto the outlet of the water supply valve (2) and tighten with wrench. Do not overtighten. NOTE: Please make sure filter washers are installed before connecting to the main valve. Step 8.
-
Page 12: Replacement Parts
Replacement Parts Replacement Finish/Color Part # Parts List 1. Sprayer Head CH,SFS,MB,BG* KP46035 2. Sprayer Hose CH,SFS,MB,BG* KP46036 Assembly 3. Spring CH,SFS,MB,BG* KP46027 4. Sprayer Seat KP46037 5. Sprayer Support CH,SFS,MB,BG* KP46028 Assembly 6. Handle Assembly CH,SFS,MB,BG* KP46029 7. Cartridge Cover CH,SFS,MB,BG* KP46041 8. -
Page 13: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Locking nut has come loose or Leakage under faucet handle Remove button located at top of handle. cartridge needs to be reseated. - Page 14 (5) years from the date of purchase. Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus.
- Page 15 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at: Kraus USA Plumbing, LLC 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 16 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
