- Page 1 INSTALLATION MANUAL Fireclay Farmhouse Kitchen Sink KFR1-33GWH / KFR1-MWH / KFR1-MGR www.kraususa.com I Toll Free: 1.800.775.0703 I © 2023 Kraus USA Plumbing LLC I REV. July 5, 2023...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Toll-Free: 800-775-0703 or customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional. -
Page 4: Tools You Will Need

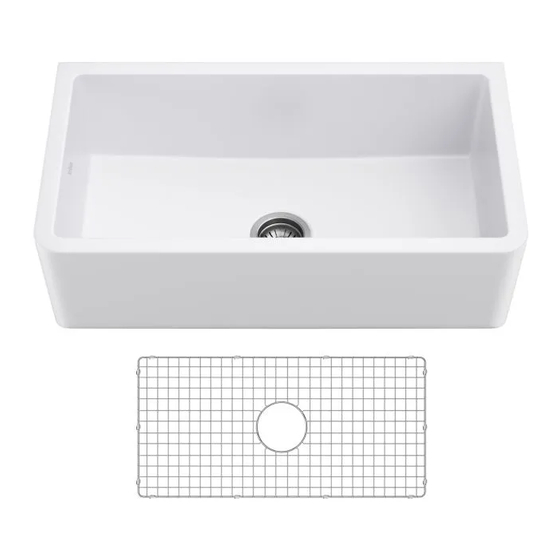

Jig Saw ACETONE Acetone Tape Measure Pencil Level Screwdriver Closed Toe Shoes NOTE: Specialized tools may be necessary to install Kraus Fireclay sinks with countertop materials other than wood, marble or granite. Parts List · Sink · Bottom Grid Dimensions 33"... - Page 5 1. Measure & Build Supports · Measure the actual height of apron · Build supports on inside of cabinet based on sink measurements NOTE: Due to the typical ±3mm Installer Tip: Support options side wall variance in manufacturing, 1 1/4" Angle Irons ·...
- Page 6 2. Cut Cabinet Front Measure height of apron front. Add " to the dimension when you · mark base cabinet front cutout. Use jigsaw to cut. ! CAUTION - To avoid the risk of personal injury, wear safety glasses and cut resistant gloves with non-slip grip when cutting. NOTE: Please use the appropriate saw that best fits your countertop material.
- Page 7 3. Install Sink Place sink in opening. The weight of sink should be sustained · by the built supports. · Make sure sink is leveled from front to back and side to side Uses silicone to fill in gaps where necessary ·...
- Page 8 Due to the custom nature of this type of installation, no cutout · template is included. · Kraus recommends providing the cabinet maker with the actual sink to be installed prior to the cabinet fabrication. · It is recommended that the sink be installed with an approximately 1/8"...
- Page 9 5. Install Countertop Use a bead of silicone (or preferred adhesive) around the rim of the · sink. Check the alignment of the sink to the cutout in the countertop. Place countertop cutout hole over sink and press firmly. Installer Tip: Use acetone or denatured alcohol to remove any excess sealant.
- Page 10 6. Installing Plumbing and Fixtures · Connect drain, trap to drain and water supply connections to the faucet according to manufacturer's instruction. · Run water into sink and check for leaks.
- Page 11 Any product reported to the authorized dealer or to Kraus that proves defective within the warranty period stated above will be repaired or replaced with a product of equal value at the option of Kraus. If repair or replacement is not practical, Kraus may elect to refund the purchase price in exchange for the return of the product. These are your exclusive remedies.
- Page 12 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
- Page 13 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
