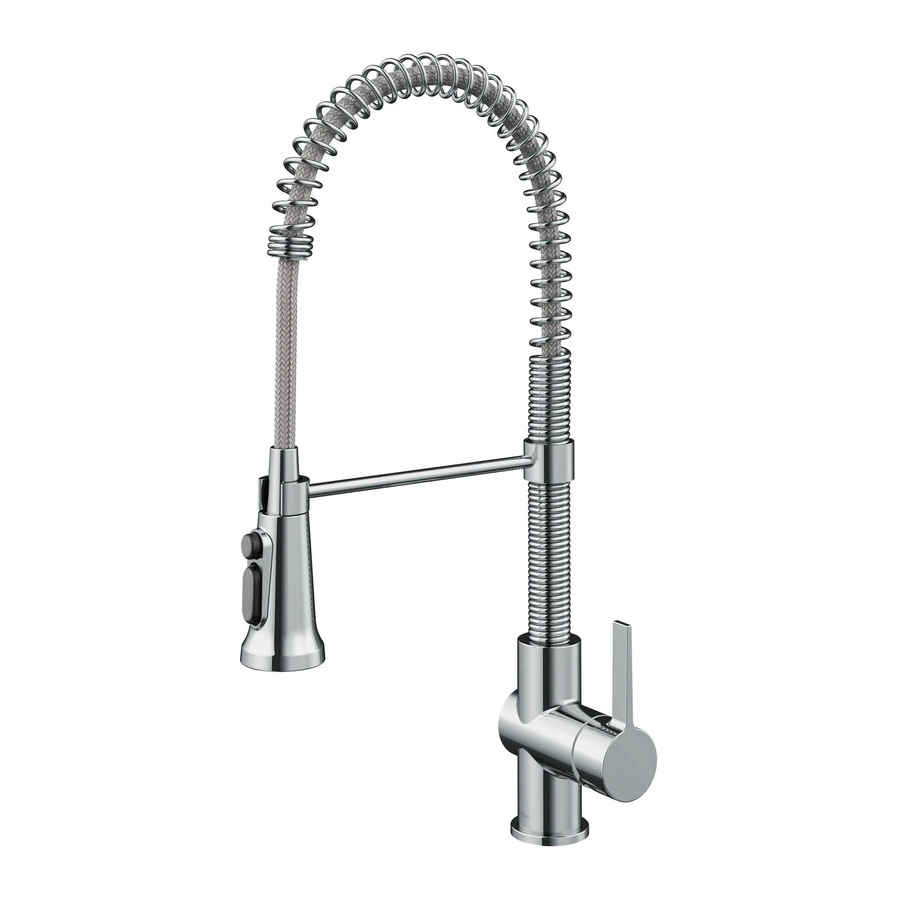

Kraus Britt KFF-1691 Installation Manual

All-in-one commercial filter faucet
Hide thumbs Also See for Britt KFF-1691:
Table of Contents

Advertisement

Quick Links

R
INSTALLATION GUIDE
Britt
All-in-One Commercial
TM
Filter Faucet
KFF-1691
www.kraususa.com
I
Toll Free: 1.800.775.0703
I
© 2018 Kraus USA Inc.
I
REV. December 10, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Britt KFF-1691 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kraus Britt KFF-1691

Summary of Contents for Kraus Britt KFF-1691

  • Page 1 INSTALLATION GUIDE Britt All-in-One Commercial Filter Faucet KFF-1691 www.kraususa.com Toll Free: 1.800.775.0703 © 2018 Kraus USA Inc. REV. December 10, 2020...
  • Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...

  • Page 3: Prior To Installation

    Prior to Installation: · Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. · Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure.
  • Page 4 Diagram and Parts List A. Spray Head E. 2.5 mm Hex Wrench F. Aerator Key B. Faucet Body G. 3-Way Connector C. Mounting Hardware H. 1/4 to 3/8 Connector x 2 C1. Rubber & Metal Washer I. EZ-Weight C2. Mounting Nut J.

  • Page 5: Faucet Dimensions

    Faucet Dimensions 4 3/4" 10 1/2" (267mm) (120mm) 8 1/2" (216.9mm) 2 1/8" (55mm) Installer Tip: Shut off main water supply before installing new faucet.
  • Page 6 Step 1. Install the faucet assembly Before installation, ensure that the flange (D) is placed on the bottom of the new faucet assembly (B). Insert the faucet body and all hoses through the hole in the sink. 1. Install the pull down hose with connector first.
  • Page 7 Step 3. Connecting the filter connection and water line Connect the 1/4 in. water line from the filtration system by pushing the line into the connector (G). Pull down on the 1/4 in. line slightly to ensure the quick connect fitting has engaged.
  • Page 8 Step 4. Attach the counterweight Install the weight on the marked area of the spray hose. Marked Area...
  • Page 9 Step 5. 1/4 Filter Connection (optional-sold separately)
  • Page 10 Step 6. 3/8 Filter Connection (optional-sold separately)
  • Page 11 Step 7. Connect the waterlines Thread the nut (1) on the supply line onto the outlet of the water supply valve (2) and tighten with wrench. Do not overtighten. Step 8. Flush and check for leaks Pull hose assembly out of spout and remove spray head by unscrewing from hose in a counterclockwise direction.

  • Page 12: Replacement Parts

    Replacement Parts Replacement Finish/Color Part # Parts List 1. Sprayer Head CH,SFS,MB,BG* KP46035 2. Sprayer Hose CH,SFS,MB,BG* KP46036 Assembly 3. Spring CH,SFS,MB,BG* KP46027 4. Sprayer Seat KP46037 5. Sprayer Support CH,SFS,MB,BG* KP46028 Assembly 6. Handle Assembly CH,SFS,MB,BG* KP46029 7. Cartridge Cover CH,SFS,MB,BG* KP46041 8.

  • Page 13: Troubleshooting

    Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Locking nut has come loose or Leakage under faucet handle Remove button located at top of handle. cartridge needs to be reseated.
  • Page 14 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.

  • Page 15: Commercial Warranty

    This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty...
  • Page 16 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
