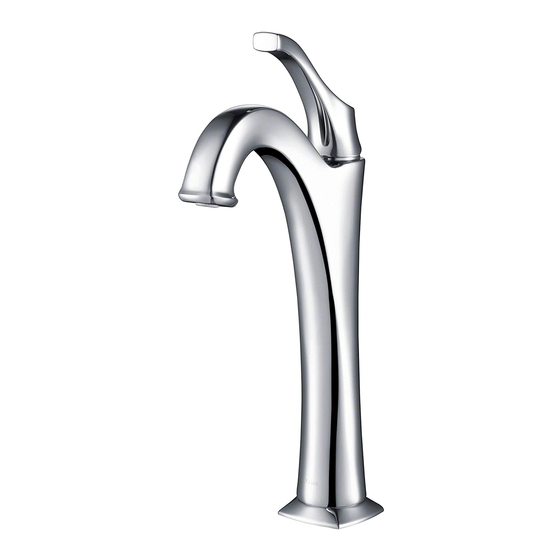

Kraus Arlo KVF-1200 Installation Manual
Single lever vessel faucet
Hide thumbs
Also See for Arlo KVF-1200:
- Installation manual (12 pages) ,
- Installation manual (13 pages) ,
- Installation manual (13 pages)
Related Manuals for Kraus Arlo KVF-1200
Summary of Contents for Kraus Arlo KVF-1200

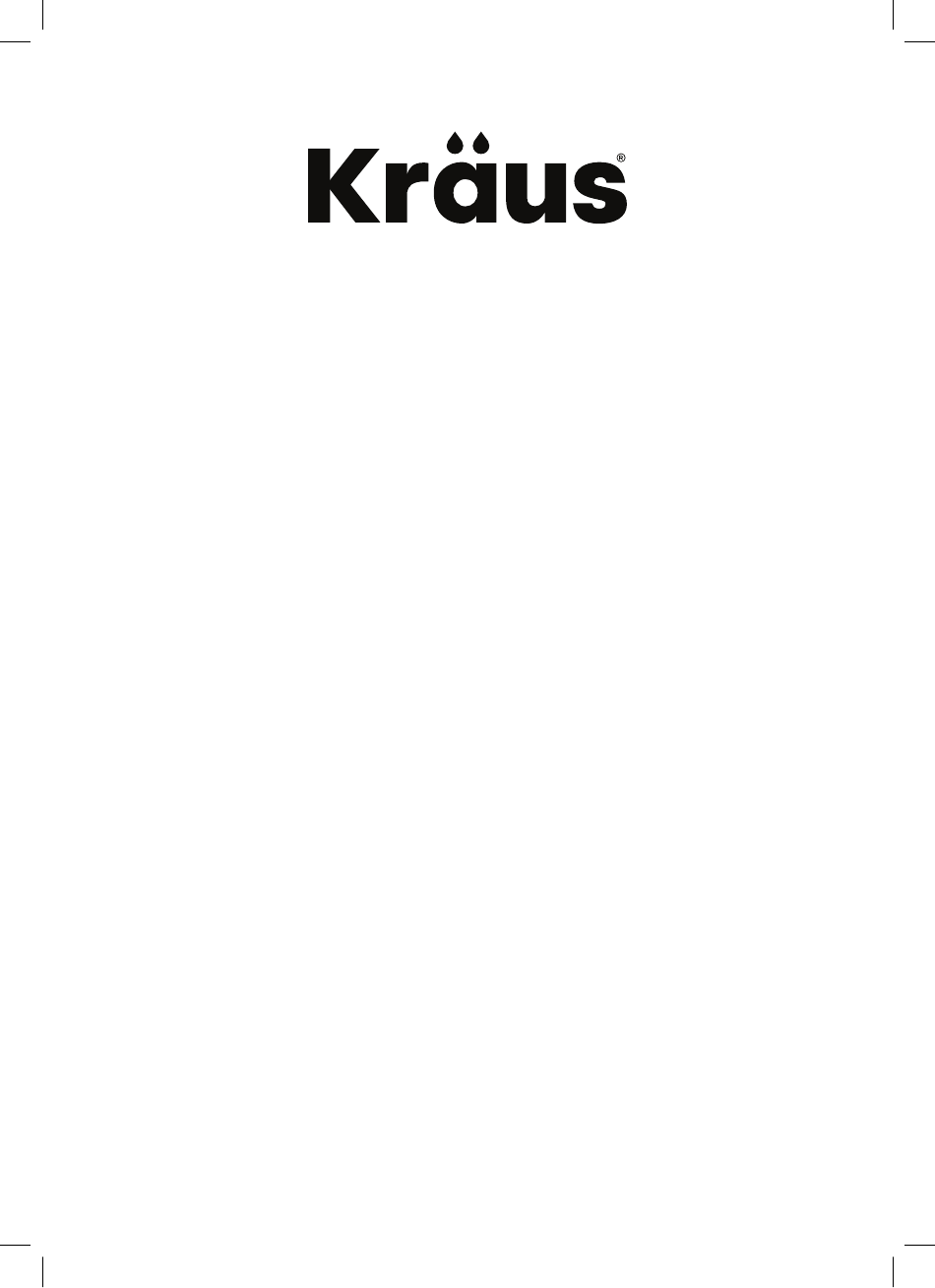

- Page 1 INSTALLATION GUIDE Arlo Single Lever Vessel Faucet ™ KVF-1200 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2021 Kraus USA Plumbing LLC I REV. NOV 17, 2021...
- Page 2 Congratulations on the purchase of your new Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com Have the model number available, and retain a copy of your receipt...
-
Page 3: Prior To Installation
Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775- 0703 for a replacement • Read all instructions and safety warnings and ensure you have all tools, parts, and equipment necessary for a safe installation. - Page 4 Diagram and Parts List A. Faucet Body D. Nut & Screws G. Aerator J. Drain B. Plastic Washer E. Waterlines H. Aerator Key C. Metal Washer F. Flange & Washer I. Hex Wrench...
- Page 5 Faucet Dimension 6 3/4" [171mm] 5" [128mm] 12 1/8" [307mm] 8 1/8" [208mm] 2 1/4" [56mm] 2 1/2" [64mm] 3/8" compression Installer Tip:...
- Page 6 Step 1: Remove washers and nut old faucet. Clean the mounting surface. Remove the plastic washer (B), metal washer (C) and nut & screws (D) from the faucet (A). Step 2: Install faucet Before installation, ensure that the flange (F) is placed on the bottom of the faucet assembly (A).
- Page 7 Step 3: Connect waterlines to main valve Attach waterlines(E) to angle stops and tighten until snug. Turn on angles stops and check for leaks (DO NOT TURN FAUCET ON) NOTE are installed before connecting to the main valve. Step 4: Install Press pop-up assembly Unscrew the nut (6) from the pop-up body (2), move over the tail pipe (7) and washer (5), then unscrew the...
- Page 8 Step 4: Install Press pop-up assembly Place the washer (1) underneath the the pop-up body (2) down through the drain hole on the vessel or basin. From underside, slide the washer (3) against the bottom of the vessel or basin, thread on the coupling nut (4) and tighten.
-
Page 9: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # 1. Cover Button GR, BL KP27002 2. Set Screw KP27001 CH, SFS, ORB, MB 3. Handle KP27046 CH, SFS, ORB, MB 4. Cap KP27048 7 5/8” 5. Bonnet Nut KP27049 6. -
Page 10: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Leakage under the Bonnet nut (5) has Remove the index (1). - Page 11 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 12 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at: Kraus USA Plumbing, LLC 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 13 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
