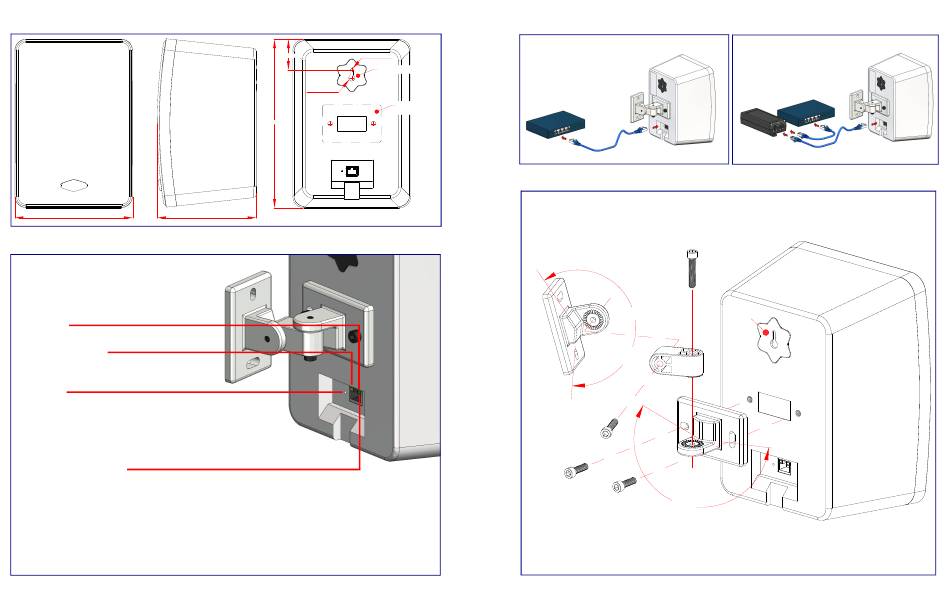

CyberData 011512 Installation Quick Reference page 2

Dimensions
6.419 [163.0]
Features
Ethernet Port
Network 100 Mb (Yellow)
The yellow 100 Mb LED is illuminated when the network
100 Mb link to the speaker is established.
RTFM Switch
To broadcast a device's current IP address, use a paper
clip or a similar instrument to press and release the
RTFM switch within a five second window.
To restore a device's factory default settings, press and
hold the RTFM switch for more than five seconds.
Network Link/Activity (Green)
The green Network Link/Activity LED comes on
immediately to show that there is a good network
connection, and then blinks to show network activity.
© 2022, CyberData Corporation, ALL RIGHTS RESERVED
1.657 [42.1] Ø0.175 [Ø4.4]
Ø0.340 [Ø8.6]
9.178 [233.1]
5.396 [137.0] Dimensions are in Inches [Millimeter]
Keyhole Fits Size #6 / 4mm Screw
931906A
Connecting Power
Keyhole Mounting
802.3af Compliant PoE Switch
Swivel Mount
Mounting Bracket
Mounting
Range of Motion
Base
Mount
Quick Reference Quick Reference
Swivel Mount
Long
Bolt
Approx.
Keyhole
200°
Universal
Joint
Long
Bolt
Base
Mount
Short
Approx.
Bolt
200°
931906A
Non PoE Switch
PoE Injector
(Part #011124)
