Summary of Contents for Lang ECOH-C3VCN

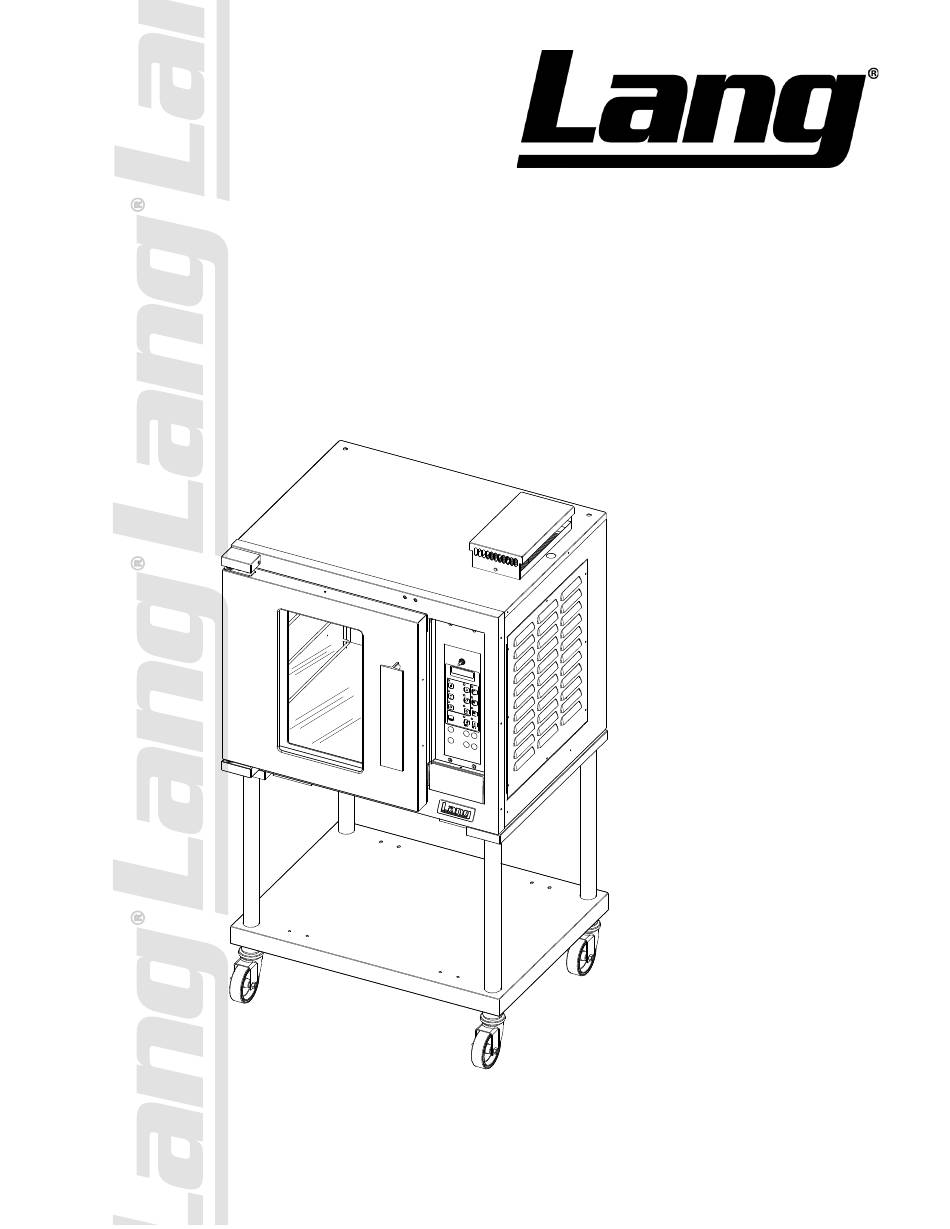

- Page 1 ELECTRIC HALF SIZE COMPUTERIZED CONVECTION OVEN ECOH-C2/3VCN ECOH-C2/4VCN ECOH-C208CNF ECOH-C208VCN ECOH-C240VCN ECOH-2/4CECN ECOH-C480VCN Installation and Operation Instructions 2M-W493 Rev. G 7/13/15 ECOH-C IL1429...
- Page 2 CONTROL PANEL. NO USER-SERVICABLE PARTS INSIDE. REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY. NOTICE Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all liability. Lang reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
-
Page 3: Table Of Contents
PROBLEMS, QUESTIONS or CONCERNS Before you proceed consult you authorized Lang service agent directory Call the Lang Technical Service & Parts Department at 314-678-6315 TABLE OF CONTENTS Specifications ......4 Equipment Description . -
Page 4: Specifications
SPECIFICATIONS Model Height x Width x Depth Clearance from Weight (without optional stand) combustible surface Installed Shipping Freight Class ECOH-C 25.3” x 30.2” x 25.3” Side:6”, Back: 6”, Floor: 6” 185 lbs. 225lbs 642mm x 766mm x 643mm (84 kg) (102 kg) 30.2”... -
Page 5: Equipment Description
EQUIPMENT DESCRIPTION Exterior Construction The Top, Front, Back, and Sides are constructed of stainless steel with an aluminized bottom. The oven exterior dimensions are: 30” (76.2 cm) Wide, Controls 25.25” (74.3 cm) High, Motor Cover 26.5” (67.31 cm) Deep. Door Handle The oven door comes standard with a high temperature insulated window equipped with a... -
Page 6: Unpacking
UNPACKING Receiving the Oven Upon receipt, check for freight damage, both visible and concealed. Visible damage should be noted on the freight bill at the time of delivery and signed by the carrier’s agent. Concealed loss or damage means it does not become apparent until the merchandise has been unpacked. -
Page 7: Installation
ECOH-C on each other as shown. These pins must be requested at the time of purchase, or call your Lang authorized service agent, or Lang parts department at 314-678-6315. Having completed the previous step remove any and all button plugs from the lower unit, so the upper unit will lay properly. -
Page 8: Vent Cap Installation
Vent Cap Certian units come equipped with a vent cap assembly, this gets installed on top of the unit as shown here. If your unit does not come equipped with this feature call the Lang parts department at 1-800-438-5264 to inquire. -
Page 9: Ventilation & Clearence
& plug assemblies. Oven Voltage The Lang Model ECOH ovens can be operated on 208, 240-volt (single or three phase), or 480-volt (three phase only) source. The Amp draw, KW rating, and phasing can be found in the specification section of this manual found on page 4. -
Page 10: Reversing The Door
Reversing the door 1. Disconnect oven from power. 2. Remove the top and bottom door hinge covers (4) by removing the two 10-32 Phillip head screws (8). 3. Remove the top door hinge bracket (1) from the oven by removing the two ¼-20 Phillip head screws (7). -
Page 11: Initial Start-Up Pre-Power On
INITIAL START UP Pre-Power On After th oven is installed and connected to power, prior to turning on, verify the following • The door opens and closes freely • All racks are in the oven correctly • All packing materials have been removed from the inside of the oven Power On Once the oven has been turned “ON”... -
Page 12: General Operation & Programming
General Operation & Programming Convection ovens constantly circulate air over and around the product. This strips away the thin layer of moisture and cool air from around the product allowing heat to penetrate more quickly. Always weigh your product. This will give you a more consistent size, color and quality. Check the product near the end of the initial cooking. -
Page 13: Status Display
General Operation & Programming cont. Status Display The Status Display informs the operator of the oven’s status. Stands for PREHEAT. The oven has been turned on and is adjusting to the preprogrammed temperature (310°F, 154°C). Preht The oven has reached the preset temperature and is waiting for product to be loaded into the oven. Ready The oven’s internal temperature is below what is programmed. -
Page 14: Pace Timers
General Operation & Programming cont. Pace Timers The pace timers can be set at any time. Press and hold the “PACE” button for three seconds. The display will read out the set time then begin to flash. Press the “1” minute button to increase the time, or the “2” minute button to decrease the time. -
Page 15: Troubleshooting
WARRANTIES. NOTICE Service on this or any other Lang appliance must be performed by qualified personnel only. Consult your Lang Authorized Service Agent Directory. You can call our toll free number 314-678-6315 or visit our website WWW.LANGWORLD.COM for the service agent nearest you. BOTH HIGH AND LOW VOLTAGES ARE PRESENT INSIDE THIS APPLIANCE WHEN THE UNIT IS PLUGGED/WIRED INTO A LIVE RECEPTACLE. -
Page 20: Exploded View & Parts List
See Body Assembly Controller / Panel Assembly Door Assembly ECOH-C Complete Assembly SK2330 Rev. B 1/24/14... - Page 21 PARTS LIST July 13, 2015, Rev G Model No: ECOH-C2/3VCN, ECOH-C2/4VCN, ECOH-C208CNF, ECOH-C208VCN, ECOH-C240VCN, ECOH-2/4CECN Commercial Half Size Economy Convection Oven Part Number Description Number 2N-11090-20 ELMNT EHS 208V 7.5KW ECOH-C208VCN 2N-11090-23 ELMNT EHS OVEN 208VAC 5.0 ECOH-C208CNF 2N-11090-21 ELMNT EHS 240V 7.5KW ECOH-C2/3VCN, ECOH-C2/4VCN, ECOH- C240VCN, ECOH-2/4CECN 2N-11090-22...
- Page 22 ECOH Body Assembly SK2325 Rev. B 1/18/2013...
- Page 23 PARTS LIST July 13, 2015, Rev G Model No: ECOH-C2/3VCN, ECOH-C2/4VCN, ECOH-C208CNF, ECOH-C208VCN, ECOH-C240VCN, ECOH-2/4CECN BODY PANELS Commercial Half Size Economy Convection Oven Part Number Description Number Q9-EH-129-5 TOP - BODY W/VENT Q9-60102-1361 BODY BACK EH & HRDW Q9-EH-119-2 FIREWALL - ASSY Q9-EH-135 SAFETY STAT BOX 2T-30401-09...
- Page 24 MARINE APPLICATION ECOH, RCOH Door Assembly SK2321 Rev. A 3/1/2012...
- Page 25 PARTS LIST July 13, 2015, Rev G Model No: ECOH-C2/3VCN, ECOH-C2/4VCN, ECOH-C208CNF, ECOH-C208VCN, ECOH-C240VCN, ECOH-2/4CECN Door Assembly Commercial Half Size Economy Convection Oven Part Number Description Number Q9-51100-53 COMPLETE DOOR ASSY w/WINDOW Q9-F6-423 COMPLETE DOOR ASSY w/o WINDOW OPTIONAL 2R-50800-12 DOOR T HANDLE 11 1/2 LNG Q9-60102-1362 OUTER DOOR EH NO/LOGO...
- Page 26 ECOH-C Complete Assembly SK2331 Rev. - 11/14/2007...
- Page 27 PARTS LIST July 13, 2015, Rev G Model No: ECOH-C2/3VCN, ECOH-C2/4VCN, ECOH-C208CNF, ECOH-C208VCN, ECOH-C240VCN, ECOH-2/4CECN CONTROL PANEL ASSEMBLY Commercial Half Size Economy Convection Oven Part Number Description Number 2C-20102-08 SCRW PHD ST 8-32X.375 2E-31400-12 XFRMR 240V/12V 10VA CLASS 2E-31400-28 XFORMR208-240/24VCT 40VA ECOH-2/4CECN 2E-31400-04 XFRMR 480/240VAC 100VA...
- Page 28 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
