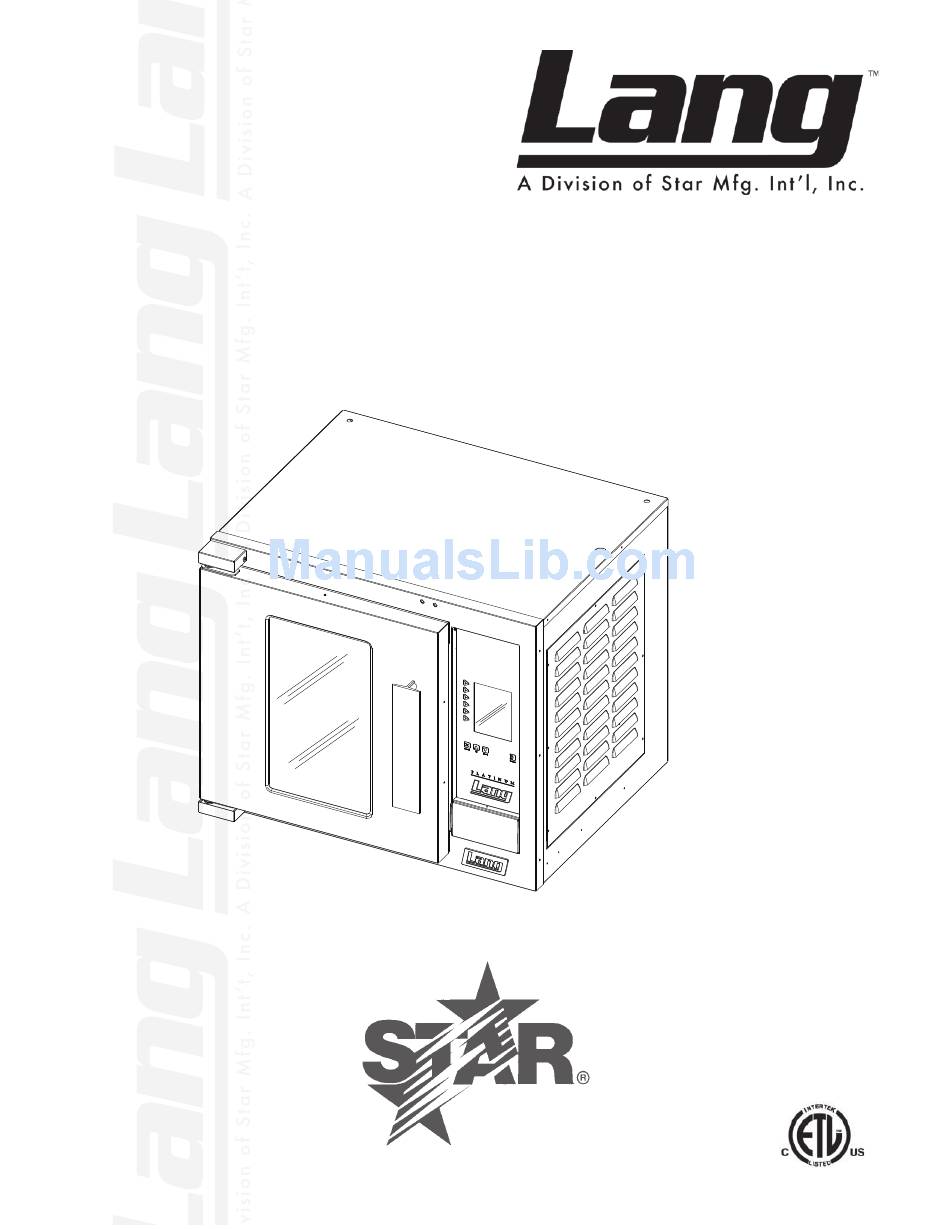

- Page 1 ELECTRIC HALF SIZE COMPUTERIZED CONVECTION OVEN ECOH-PT, RCOH-PT Installation and Operation Instructions 2M-W495 Rev. C 2/26/08 IL1453 ECOH-PT...
- Page 2 REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY. NOTICE Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change speci cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
-
Page 3: Table Of Contents
PROBLEMS, QUESTIONS or CONCERNS Before you proceed consult you authorized Lang service agent directory Call the Lang Technical Service & Parts Department at 1-800-807-9054. TABLE OF CONTENTS Specifications Equipment Description Unpacking Installation Leg Installation Stacking the Oven Vent Cap Installation Ventilation &... -
Page 4: Specifications
5 5 5 5 5 5 ECOHPT208CFC EHS-PT-ACFA 5 5 5 5 5 5 ECOHPT208CFR EHS-PT-ACF 5 5 5 5 5 5 ECOH-PT208MF EHS-PT-AF ECOH-PT08NT EHS-PT-ANE ECOH-PT208RF EHS-PT-ARF ECOH-PT08SZ EHS-PT-ASHTZ ECOH-PT-08V EHS-PT-A ECOH-PT08V7 EHS-PT-A ECOH-PT08WA EHS-PT-AWA ECOH-PT208WD EHS-PT-AWD ECOH-PT40SZ EHS-PT-ISHTZ... -
Page 5: Equipment Description
EQUIPMENT DESCRIPTION Exterior Construction The Top, Front, Back, and Sides are constructed of stainless steel with an aluminized bottom. The oven exterior dimensions are: 30” (76.2 cm) Wide, Controls 25.25” (74.3 cm) High, Motor Cover 26.5” (67.31 cm) Deep. Door Handle The oven door comes standard with a high temperature insulated window equipped with... -
Page 6: Unpacking
UNPACKING Receiving the Oven Upon receipt, check for freight damage, both visible and concealed. Visible damage should be noted on the freight bill at the time of delivery and signed by the carrier’s agent. Concealed loss or damage means it does not become apparent until the merchandise has been unpacked. -
Page 7: Installation
ECOH-C on each other as shown. These pins must be requested at the time of purchase, or call your Lang authorized service agent, or Lang parts department at 1-800-807-9054. Having completed the previous step remove any and all button plugs from the lower unit, so the upper unit will lay properly. -
Page 8: Electrical Connection
& plug assemblies. Oven Voltage The Lang Model ECOH ovens can be operated on 208, 240-volt (single or three phase), or 480-volt (three phase only) source. The Amp draw, KW rating, and phasing can be found in specification section of this manual. -
Page 9: Reversing The Door 0
Reversing the door 1. Disconnect oven from power. 2. Remove the top and bottom door hinge covers (4) by removing the two 10-32 Phillip head screws (8). 3. Remove the top door hinge bracket (1) from the oven by removing the two ¼-20 Phillip head screws (7). -
Page 10: Initial Start-Up
INITIAL START UP Pre-Power On After th oven is installed and connected to power, prior to turning on, verify the following • The door opens and closes freely • All racks are in the oven correctly • All packing materials have been removed from the inside of the oven Power On Once the oven has been turned on verify that the blower wheel... -
Page 11: General Operation & Programming
Alpha Numeric Display: Visual interface. Typical Operation Sequence ACTION RESULT Control panel comes on; display says “LANG, Run Oven, Time Date Press the on switch. Up & Down Button Program". Display will show a list of product to Select “Run Oven”. -
Page 12: Loading
General Operation & Programming cont. Loading Here are some things to remember when loading your oven. • When loading and unloading the oven, stage products and racks so the oven door is opened for the least amount of time. • Be sure that racks are level within the oven. •... - Page 14 Platinum PROGRAMMING Platinum PROGRAMING When using the Platinum Control Panel follow these simple steps. Function Keys: Are active when selecting an op- tion that is displayed on the LCD Screen. LCD Screen Function Buttons: Cancel: During Program Mode it will take you to the next step, otherwise it will take you back to Function Keys...
- Page 15 Platinum PROGRAMMING ◄ DISPLAY PRODUCT ENTER ACCESS CODE ◄ TIMER ONLY USE ▲▼ KEYS TO SELECT THEN PRESS ENTER ◄ RUN OVEN ◄ SET TIME / DATE ◄ TIME / DATE / PROGRAM ◄ PROGRAM COMPUTER TIME DATE TEMP STATUS TIME DATE TEMP STATUS...
- Page 16 Platinum PROGRAMMING SELECT PRODUCT TEMP SELECT TIER COOK TIME SELECT COOKING CURVE 00:45:00 000% USE ▲▼ KEYS TO SELECT USE ▲▼ KEYS TO SELECT USE ▲▼ KEYS TO SELECT PIE A PIE A PIE A TIER TIER TIER TEMP: 320°F TIME: 00:45:00 TEMP: 320°F...
- Page 17 Platinum PROGRAMMING ◄ CREATE NEW PROGRAM CONTINUE TO NEXT TIER ◄ EDIT PRODUCT USE ▲▼ KEYS TO SELECT PIE A ◄ DELETE PROGRAM ◄ RUN OVEN TIER TEMP: 320°F TIME: 00:45:00 ◄ TIME / DATE / PROGRAM ◄ EDIT PROGRAM FAN: HI RATE: 100% CCURVE: 80%...
-
Page 18: Cleaning 4
MAINTENANCE • Oven interiors should be wiped down daily and thoroughly cleaned weekly using warm water and mild detergent. DO NOT use caustic cleaners. • The appliance should be thoroughly checked at six-monthly intervals by a qualified technician (heating unit, mechanical stability, corrosion...) with particular emphasis on all control and safety devices. -
Page 19: Troubleshooting
WARRANTIES. NOTICE Service on this or any other Lang appliance must be performed by qualified personnel only. Consult your Lang Authorized Service Agent Directory. You can call our toll free number 1-800-807-9054 or visit our website WWW.STAR-MFG.COM for the service agent nearest you. BOTH HIGH AND LOW VOLTAGES ARE PRESENT INSIDE THIS APPLIANCE WHEN THE UNIT IS PLUGGED/WIRED INTO A LIVE RECEPTACLE. - Page 20 NC NO 24VAC JP11 JP12 JP13 JP14 JP15 JP16 JP17 JP18 JP19 JP20 12/24 RS232 JP41 FROM MAIN CONTACTOR XFMR MOTOR WHITE BLUE XFMR MOTOR 24VAC BLUE BLACK FROM MAIN CONTACTOR...
- Page 21 See Body Assembly Controller Assembly Door Assembly Panel Assembly ECOH Complete Assembly SK2320 Rev. A 1/8/2008...
-
Page 22: Parts List
2N-11090-22 ELMNT EHS OVEN 480VAC 7.5KW 440VM, 480V, 480VM 2N-11090-23 ELMNT EHS OVEN 208VAC 5.0 KW RCOHAP-208KR, RCOHAP-208CF, RCOHRAP208KR, RCOHPT-208CF 2E-30500-07 TRM BLOCK 3PLELRGE 125AMP ECOHPT208CFR, RCOHPT-208CF, RCOHPT-240CF 2E-30500-09 TRM BLOCK 3 POLE SMALL 95 ECOH-AP-208V/208M/240V/208DR, ECOH-AP-480V480/M, RCOHAP-208V, RCOHAP-480V, RCOHAP-480VM, RCOHAP- 480V/480M, RCOHRAP-480V/480M, RCOHPT-440VM Q9-EHPPT-C PNEL ASSY EHS-PT 208/240/480V ECOH-PT, RCOHPT Q9-60101-767 PANEL EH 208/240V ECOH-AP-208, 208M, 240V, 208DR Q9-EHPAP-GFA PANEL EH 220/380V ACCU-PLUS FA ECOH-AP208FA, ECOH-AP2/3FA Q9-EHPAPRT-C PANEL EH 208/240V AP W/RT30 RCOHAP-208KR, RCOHAP-208V, RCOHRAP208KR Q9-EHPAP-U PANEL EH 480 VOLT ACCU-PLUS ECOH-AP-480M, 480V, RCOHAP-480V, 480VM, RCOHRAP-480M, 480V Q9-EHPPP-C PANEL EH 208/240V PURPLE w/COOLING FAN ASSY ECOH-PP-208V, 208BK, 208WB, 240BK, 240WB Q9-EHPPP-C-S... - Page 23 SWITCH ARM, MICRO ECOH, RCOH 2P-51001-12 SPRING COMPRSN.665ID X 1.4 LONG ECOH, RCOH Q9-EH-250 WELD SWITCH ARM ECOH, RCOH Q9-EH-350 SWITCH PLUNGER - ASSY ECOH, RCOH Y9-70701-18 KNOB ASSY 450° ECOH-AP, ECOH-PT, ECOH-PP, RCOH-AP, RCOH-PT Q9-60102-112 SWITCH DOOR - ASSY EH ECOH-PP-208V Q9-60101-765 ECOH-PT / EHS-PT CONTROL FRONT ECOH-PT, RCOH-PT Q9-60101-766 ECOH-PP / EHS-PP CONTROL FRONT ECOH-PP Q9-51100-53 COMP DOOR ASSY EHS/GHS WINDOW ALL 2B-50200-83 RACK SLIDE EHS ECOH-AP, ECOH-PT, ECOH-PP, RCOH-AP, RCOH-PT 2E-41100-12 SENSOR EHS OVEN 450 DEG 2B-50200-34 RACK HALF SIZE OVENS ECOH-AP, ECOH-PT, ECOH-PP, RCOH-AP, RCOH-PT 2E-31800-01 CB 250V50A 1 POLE CRLNGSW RCOHAP-208KR, RCOHAP-208V, RCOHPT-208CF...
- Page 24 ECOH Body Assembly SK2325 Rev. A 1/9/2008...
- Page 25 PARTS LIST December 18, 2008 Rev D Model No: ECOH & RCOH, AP, PP & PT BODY PANELS Commercial & Marine Half Size Economy Convection Oven Part Qty Number Description Number Q9-60102-136 BODY TOP EH & HRDW Q9-60102-1361 BODY BACK EH & HRDW Q9-EH-119-2 FIREWALL - ASSY Q9-EH-135 SAFETY STAT BOX 2T-30401-09 STAT FXD 500° DEG OPEN Q9-EH-136 SAFETY STAT COVER 2K-70801-04 SNAP BUSH 3/4 SB750-10 BLK 2C-20103-02...
- Page 26 MARINE APPLICATION ECOH, RCOH Door Assembly SK2321 10/2/2007...
- Page 27 PARTS LIST December 18, 2008 Rev D Model No: ECOH & RCOH, AP, PP & PT DOOR ASSEMBLY Commercial & Marine Half Size Economy Convection Oven Part Qty Number Description Number 2R-50800-12 DOOR T HANDLE 11 1/2 LNG Q9-60102-1362 OUTER DOOR EH NO/LOGO 2Q-71301-04 WINDOW ASSY 9-5/8X16-5/8 2H-60106-17 INSULATION KIT EHS DOOR - Q9-EH-267 HINGE COVER Q9-EH-266 HINGE BOTTOM 2C-20109-15 SCRW PHD MS SS 10-32X1/2 2P-70201-01...
- Page 28 ECOH-PP Purple Plus Controller ECOH-PT & RCOH-PT Platinum Controller SK2324 10/2/2007...
- Page 29 Model No: ECOH & RCOH, PP & PT CONTROL ASSEMBLY Commercial & Marine Half Size Economy Convection Oven Part Qty Number Description Number 2M-60301-117 SWITCH LBL EH 4X20 ECOH-PP 2M-60301-118 SWITCH LBL EH PLATINUM ECOH-PT, RCOHPT Q9-60101-7665 ECOH-PP / EHS-PP CNTRL FRNT W/PROTO ECOH-PP Q9-EH-516-1 CONTORL PANEL - EH-PT ECOH-PT-208V 2A-20504-01 SPACER NYLON #6 1/4 X 7/8 ECOH-PP 2A-20504-02 SPACER NYLON #6 1/4 X 1” ECOH-PT, RCOHPT...
- Page 30 ECOH Controller Panel SK2323 10/2/2007...
- Page 31 December 18, 2008 Rev D Model No: ECOH & RCOH, PP & PT CONTROL PANEL ASSEMBLY Commercial & Marine Half Size Economy Convection Oven Part Qty Number Description Number Q9-EH-495 COMPUTER CONTROL SLIDE ECOH-PP, ECOH-PT, RCOH-PT Q9-EH-495-1 SLIDE CLIP A ECOH-PP, ECOH-PT, RCOH-PT Q9-EH-505 COMPONENT MOUNT C,P,PP ECOH-PP, ECOH-PT, RCOH-PT 2E-30700-06 CONTC3POLE35A24VAC50/60HZ ECOH-PP, ECOH-PT, RCOH-PT Q9-EH-507 TERMINAL BLOCK MOUNT...
- Page 32 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
