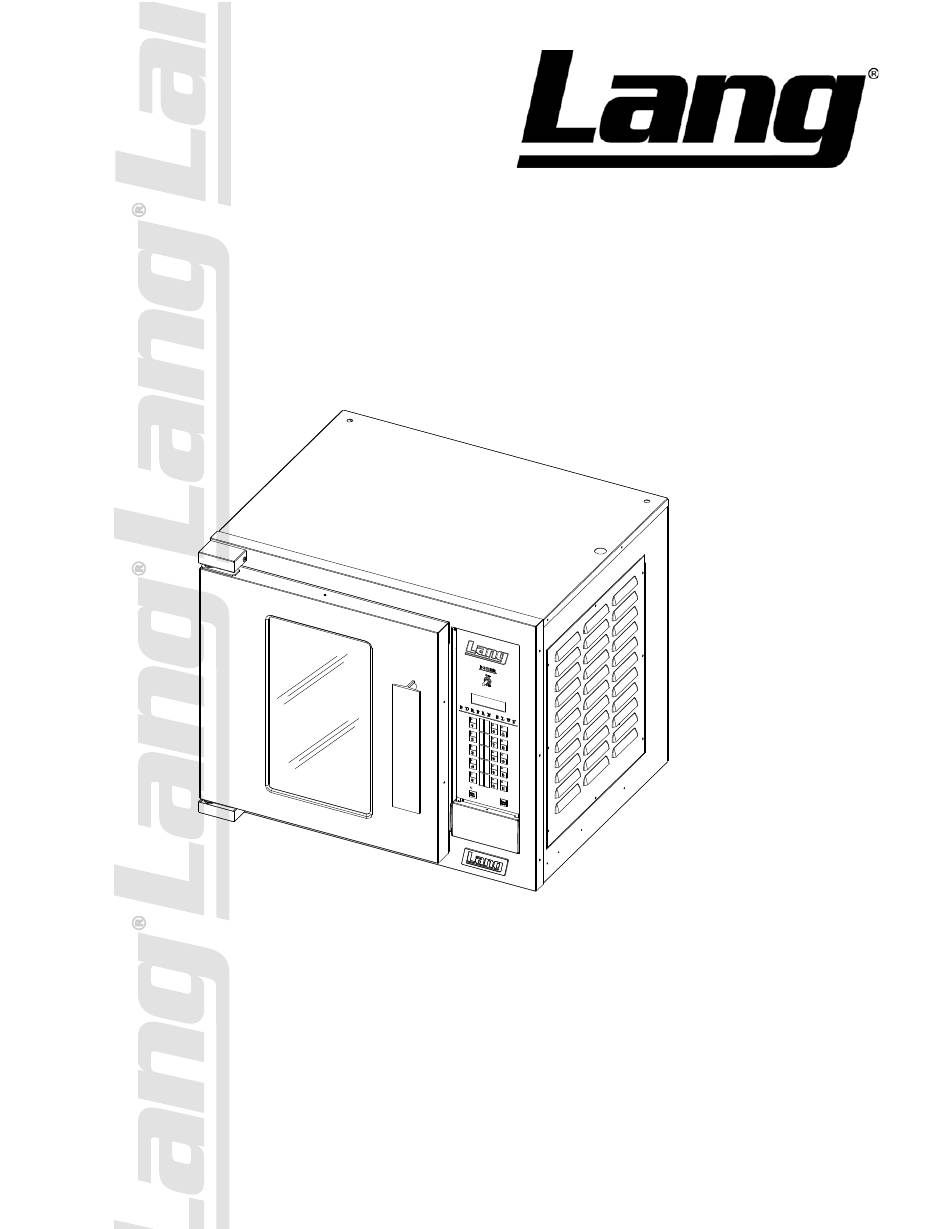

- Page 1 ELECTRIC HALF SIZE COMPUTERIZED CONVECTION OVEN ECOH-PP Installation and Operation Instructions 2M-W494 Rev. D 12/03/12 IL1475 ECOH-PP...
- Page 2 CONTROL PANEL. NO USER-SERVICABLE PARTS INSIDE. REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY. NOTICE Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all liability. Lang reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
-
Page 3: Table Of Contents
ECOH-PP 220-380V, 240-415V WD61111-151 ..21 ECOH-PP 480V WD61111-168 ....22 Exploded View & Parts List ..... 24-34... -
Page 4: Specifications
Front Side View Right Side View Top View Electrical Specifications MOTOR AMPS 3PH/ AMPS WIRE WIRE Model No VOLTS AC AMPS PHASE NTRAL TOT. 1 PH 1 PH 3 PH ECOH-PP2/4BK 240/415 50/60 10.5 10.5 ECOH-PP208BK ECOH-PP208BR ECOH-PP-208V ECOH-PP-240V ECOH-PP208WB ECOH-PP240BK ECOH-PP240WB... -
Page 5: Equipment Description
EQUIPMENT DESCRIPTION Exterior Construction The Top, Front, Back, and Sides are constructed of stainless steel with an aluminized bottom. The oven exterior dimensions are: 30” (76.2 cm) Wide, 25.25” (74.3 cm) High, Controls Motor Cover 26.5” (67.31 cm) Deep. Door Handle The oven door comes standard with a high temperature insulated window equipped with a... -
Page 6: Unpacking
UNPACKING Receiving the Oven Upon receipt, check for freight damage, both visible and concealed. Visible damage should be noted on the freight bill at the time of delivery and signed by the carrier’s agent. Concealed loss or damage means it does not become apparent until the merchandise has been unpacked. -
Page 7: Leg Installation
ECOH on each other as shown. These pins must be requested at the time of purchase, or call your Lang authorized service agent, or Lang parts department at 314-678-6315. Having completed the previous step remove any and all button plugs from the lower unit, so the upper unit will lay properly. -
Page 8: Ventilation & Clearance
& plug assemblies. Oven Voltage The Lang Model ECOH ovens can be operated on 208, 240-volt (single or three phase), or 240/415V, 480-volt (three phase only) source. The Amp draw, KW rating, and phasing can be found in specification section of this manual or on the nameplate attached to the unit.. -
Page 9: Reversing The Door
Reversing the door 1. Disconnect oven from power. 2. Remove the top and bottom door hinge covers (4) by removing the two 10-32 Phillip head screws (8). 3. Remove the top door hinge bracket (1) from the oven by removing the two ¼-20 Phillip head screws (7). -
Page 10: Initial Start-Up Pre-Power On
INITIAL START UP Pre-Power On After the oven is installed and connected to power, prior to turning on, verify the following • The door opens and closes freely • All racks are in the oven correctly • All packing materials have been removed from the inside of the oven Power On Once the oven has been turned on verify that the blower wheel... -
Page 11: General Operation & Programming
General Operation & Programming cont. ECOH-PP Control Panel The control panel consists of the following items. Detailed operational descriptions are given later this section. Power Switch: Turns the oven on and off Alpha Numeric Display: Displays your interface with the computer. -
Page 12: Loading
General Operation & Programming cont. Loading Here are some things to remember when loading your oven. • When loading and unloading the oven, stage products and racks so the oven door is opened for the least amount of time. • Be sure that racks are level within the oven. •... -
Page 13: Daily Operation
DAILY OPERATION PURPLE PLUS CONVECTION OVENS ECOH-PP, ECOF-PP, GCOF-PP, EHS-PP, ECCO-PP, GCCO-PP Daily Operation If you do not select a shelf, the oven will beep Step 1: Turn the Power Switch on by switching and the following display will appear: the toggle switch to the up position. -
Page 15: Programming Procedures
PROGRAMMING PURPLE PLUS CONVECTION OVENS ECOH-PP, ECOF-PP, GCOF-PP, EHS-PP, ECCO-PP, GCCO-PP Before You Begin Programming 1. For programming new ovens, you must program at least one button (position 2 through 0) before you can delete or replace the sample program in position one. - Page 16 PROGRAMMING PURPLE PLUS CONVECTION OVENS ECOH-PP, ECOF-PP, GCOF-PP, EHS-PP, ECCO-PP, GCCO-PP Programming Procedures continued PROGRAMMING PROCEDURES CONTINUED ENTER FAN SPEED 1=HI 2=LOW Select Fan speed. (Hi=1700 rpm, Low=1400) NOX T1 XXXF CXX XX:XX:XX PXXX F-XX Select Fan Pulse rate. (0 to 100%). 0=off unless calling for heat. 100=on at all time.
-
Page 17: Maintenance / Cleaning
MAINTENANCE • Oven interiors should be wiped down daily and thoroughly cleaned weekly using warm water and mild detergent. DO NOT use caustic cleaners. • The appliance should be thoroughly checked at six-monthly intervals by a qualified technician (heating unit, mechanical stability, corrosion...) with particular emphasis on all control and safety devices. -
Page 18: Troubleshooting Symptoms & Possible Causes
WARRANTIES. NOTICE Service on this or any other Lang appliance must be performed by qualified personnel only. Consult your Lang Authorized Service Agent Directory. You can call our tech service number 314-678-6315 or visit our website www.langworld.com for the service agent nearest you. BOTH HIGH AND LOW VOLTAGES ARE PRESENT INSIDE THIS APPLIANCE WHEN THE UNIT IS PLUGGED/WIRED INTO A LIVE RECEPTACLE.
