SMART Board 8070i-SMP Cabling Manual

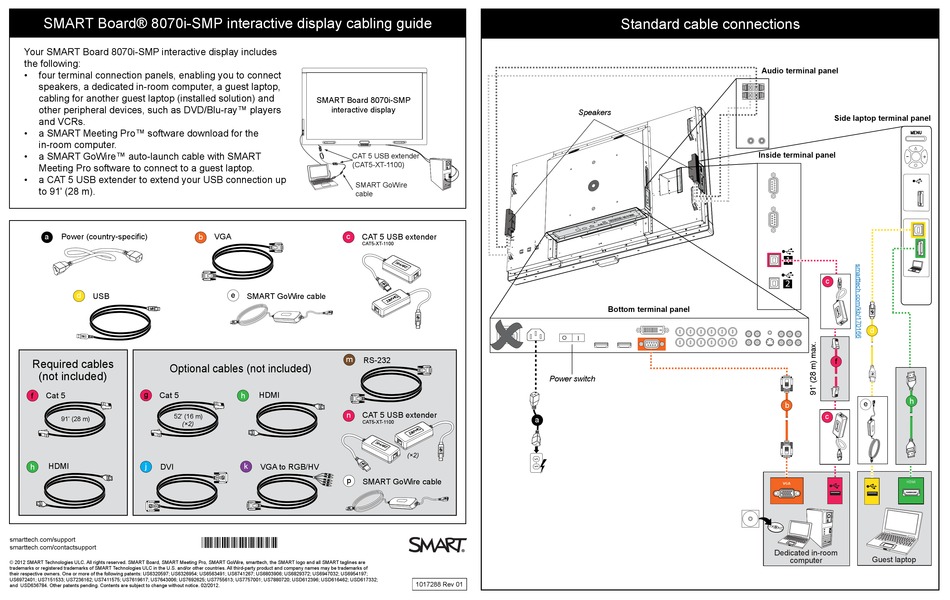

SMART Board® 8070i-SMP interactive display cabling guide
Your SMART Board 8070i-SMP interactive display includes
the following:
• four terminal connection panels, enabling you to connect
speakers, a dedicated in-room computer, a guest laptop,
cabling for another guest laptop (installed solution) and
other peripheral devices, such as DVD/Blu-ray ™ players
and VCRs.
• a SMART Meeting Pro™ software download for the
in-room computer.
• a SMART GoWire™ auto-launch cable with SMART
Meeting Pro software to connect to a guest laptop.
• a CAT 5 USB extender to extend your USB connection up
to 91' (28 m).
a Power (country-specific)
d
USB
Required cables
Optional cables (not included)
(not included)
g
f Cat 5 Cat 5
52' (16 m)
91' (28 m)
(×2)
HDMI
h j DVI
smarttech.com/support
smarttech.com/contactsupport
© 2012 SMART Technologies ULC. All rights reserved. SMART Board, SMART Meeting Pro, SMART GoWire, smarttech, the SMART logo and all SMART taglines are
trademarks or registered trademarks of SMART Technologies ULC in the U.S. and/or other countries. All third-party product and company names may be trademarks of
their respective owners. One or more of the following patents: US6320597; US6326954; US6563491; US6741267; US6803906; US6829372; US6947032; US6954197;
US6972401; US7151533; US7236162; US7411575; US7619617; US7643006; US7692625; US7755613; US7757001; US7880720; USD612396; USD616462; USD617332;
and USD636784. Other patents pending. Contents are subject to change without notice. 02/2012.

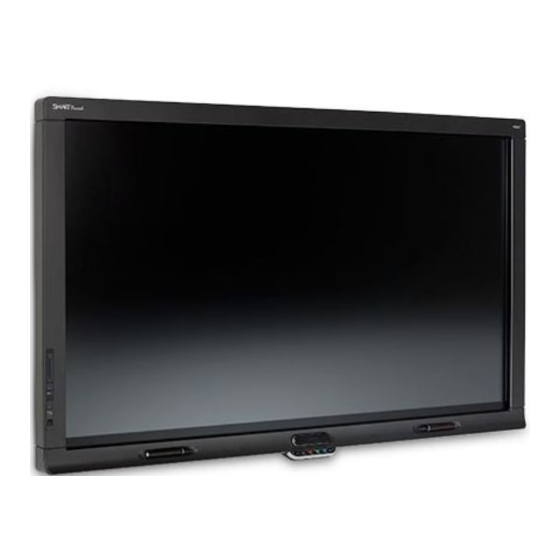

SMART Board 8070i-SMP
interactive display
CAT 5 USB extender
(CAT5-XT-1100)
SMART GoWire
cable
VGA c
b CAT 5 USB extender
CAT5-XT-1100
e
SMART GoWire cable
m
RS-232
HDMI
h
n CAT 5 USB extender
CAT5-XT-1100
k
VGA to RGB/HV
p
SMART GoWire cable
*1017288*
Speakers
Power switch
a
(×2)
1017288 Rev 01
Standard cable connections
Audio terminal panel
Inside terminal panel
1
2
Bottom terminal panel
b
VGA
Dedicated in-room
Side laptop terminal panel
c
d
f
h
e
c
HDMI
Guest laptop
computer
