Audi MMI 2G HIGH Quick User Guide Model No : P2000-2G26MD A6/C7 A8/D3 Q7/4L Model No : P2000-2G20MD A4/B8 A5/8T 1 - All you need to know before Installation 2 - Product Features 3 - Main Feature Operations 4 - Car Settings 5- Sound Settings 6 - USB Supported Formats &...
Page 2

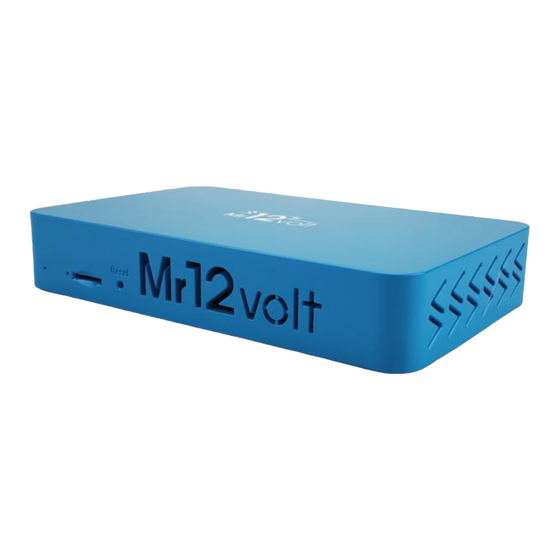

1 - All you need to know before Installation Mr12volt interface emulates CD changer function of a Audi MMI radio and is connected through MOST bus of its function. once successfully installed, Mr12volt appears in CD7. ( Picture illustrated above) ...
2 - Product Features CarPlay Android Auto Mirroring Music & Video Playback ( Through USB Flash ) Bluetooth HF & Music Streaming Reverse Camera Input ( Support up to AHD720P ) Front Camera Input ...
Page 4
3 - Main Feature Operations CarPlay / Android Auto Support both wired and wireless CarPlay Connection To connect to CarPlay wirelessly, both Bluetooth and Wi-Fi connection are required For wired CarPlay & Android Auto : Use a genuine cable to connect through the USB connector.
Page 5
3. Turn on Wi Fi on phone connect network “carplay_xxxx” ( PW is 88888888) 4. Go to Apple quick menu bar, select Screen Mirroring and select Mirroring again 5. Phone display will appear on Car Display now Android Phone It is necessary to install “MLink” application on your Android phone, it can be downloaded on www.mr12volt.com ( Go to SUPPORT --->...
Page 6
Audi factory Bluetooth HF and Mr12volt Bluetooth can be connected at the same time. (see below picture) When both are connected and a call is received, Audi HF will take over Mr12volt HF and it can be answered through phone button on steering wheel.
4 - Car Settings Car Setting “Reverse Camera” settings OE Camera (Default) - Select this when car is fitted with factory camera AfterMarket 360 - Select this when car is installed with a aftermarket camera ( support up to AHD720 only) “Reverse condition”...
Page 8
(Refer to the AUDI MMI 2G Installation Diagram for more details ) “Starting front view” - Front Camera timer setting with 5s, 10s, 30s “Dedicated right view” - L/R Side camera setting (Blind Spot camera) ...
6 - USB Supported Formats & Other Specs Music and Video Playback File Format USB file File Format FAT12, FAT32 Support USB2.0 , Hard disk memory Supported music format : MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, ...
Page 11
Q; Can i use my Audi MMI Bluetooth HF while connected to Mr12volt Bluetooth ? A: Yes, they can be connected at the same time, Audi factory HF will take over Mr12volt when a call is received and it can be answered through phone button on steering wheel.
