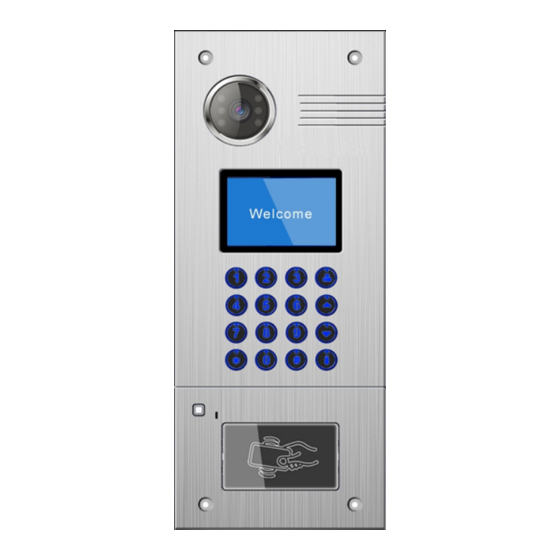

Channel Vision SIM Series Quick Start Manual

Ip intercom system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SIM/MDU Series
IP Intercom System
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIM Series and is the answer not in the manual?

Questions and answers

Related Manuals for Channel Vision SIM Series

Summary of Contents for Channel Vision SIM Series

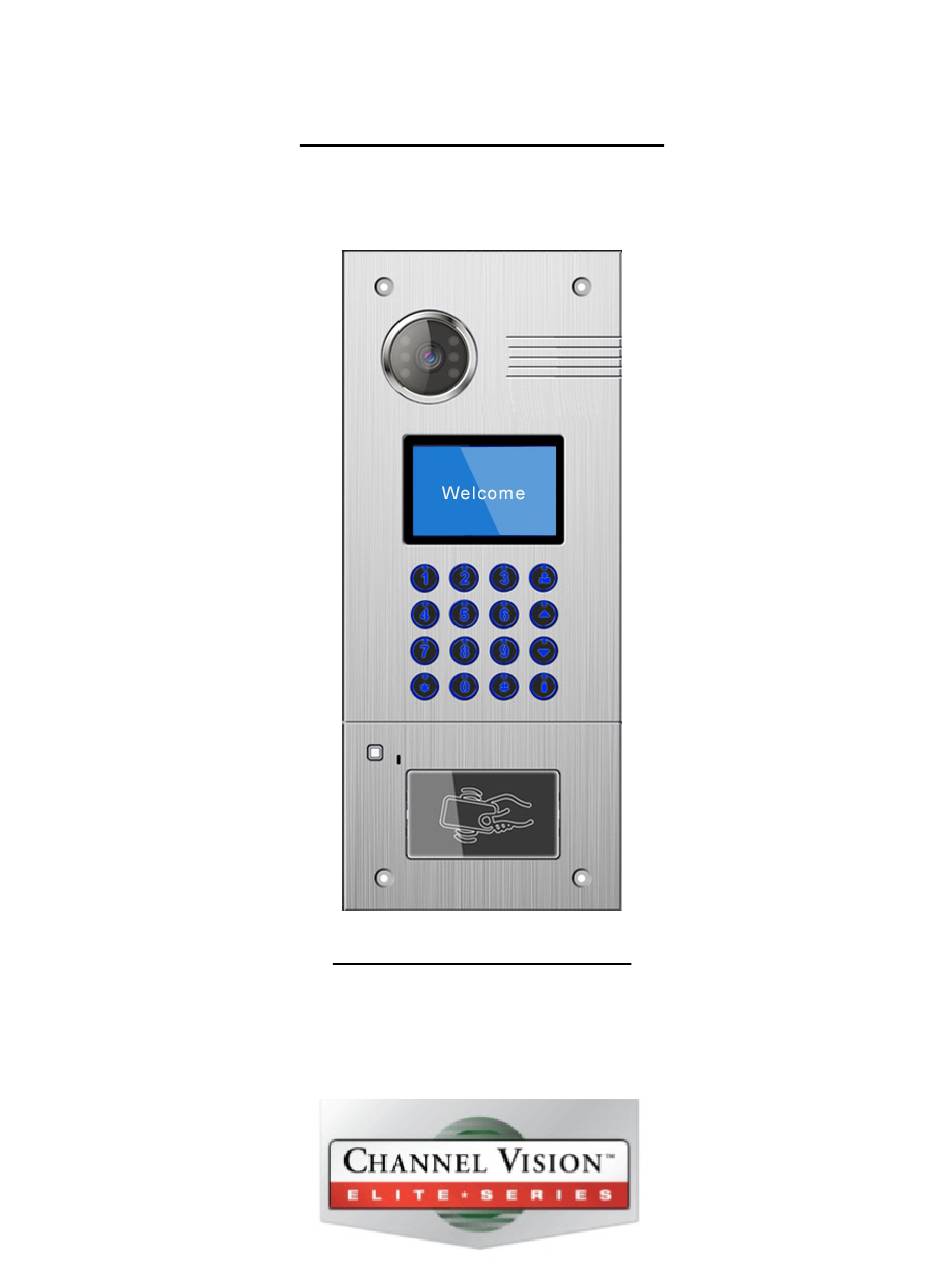

  • Page 1 SIM/MDU Series IP Intercom System Quick Start Guide...

  • Page 2: Table Of Contents

    Table of Contents Introduction Specifications & Package contents........Dimensions ................ Installation and Connections ..........System Diagram …............. Basic functions and operation …........1. Detect & Verify Network Settings ......... Search for devices with CVT upgrade tool ......Getting to a command prompt in Windows …..... Verify your computer's network settings …......

  • Page 3: Specifications & Package Contents

    Specifications CPU: 350MHz RAM: DDR2 (1GB x 2) Flash: 2GB Power: 12vDC IP Rating: IP66 Rated power: 6W Standby power consumption: 3W Operating temperature: 14°F ~ 131°F Relative humidity: 20% ~ 93% Screen: 3.5” dot matrix Dimensions: Height = 14.75” Width = 6.5”...

  • Page 4: Dimensions

    Camera Speaker LEDs Display Digital Keypad Microphone Card reader Flush mount box dimensions 2” deep...

  • Page 5: Installation And Connections

    Installation Electrical Back Panel...
  • Page 6 Exit/Door-detector Power/ Unlock Signal Output...
  • Page 7 RS485 RJ45 Pin out - T-568B...

  • Page 8: System Diagram

    System Diagram...

  • Page 9: Basic Functions And Operation

    Basic Functions Video intercom with indoor monitor & management center. ● ID card reader. Supports a maximum of 10,000 cards. ● Access password unlocking. ● Supports standard SIP protocol to communicate with IP phones and SIP software. ● Phone book search and direct dial. ●...

  • Page 10: Detect & Verify Network Settings

    1-1. Connect a 12vDC power supply to your SIM/MDU, then connect your SIM/MDU to your switch or router via cat5e or cat6, then launch the Channel Vision IP upgrade tool. Click on the search button to find the IP address of your SIM/MDU intercom.

  • Page 11: Verify Your Computer's Network Settings

    1-3. Once In the command prompt you will type “ipconfig” and press enter to find the IP information of your LAN (your IP address, Subnet mask, and IP address of your router) - Make sure you write down your IP address, your network mask and your default gateway (router address) so you can reference them later.

  • Page 12: Accessing And Configuring The Setup Interface

    Note: Do not proceed to step 3 until you have verified your computer and SIM intercom are on the same network 2. Accessing and configuring the setup interface 2-1. Open an internet explorer Web browser, type the IP address of your SIM intercom into the address bar at the top and press enter to access the user interface.

  • Page 13: Lan Settings

    2-3. LAN settings IP: must be a unique IP address with the first three octets (192.168.1.x) matching the first three Octets of your Gateway address. The last octet (x) can be any number between 2 and 253 just to play it safe. Each SIM/MDU Intercom ships with a default IP address of 192.168.1.200.

  • Page 14: Device Settings

    2-4. Device Settings BuildNo: Building number. UnitNo: Unit number. No: Unique number for the outdoor panel (can be any number between 1 & 9 ) . You can have a maximum of 9 door stations for one building number. Sys passwd: Login password (default is 123456 ) . Panel mode: Select “Unit Panel”.

  • Page 15: Access Settings

    2-5: Access Settings Unlock timeout: Time delay in seconds from when you activate the door unlock to when it triggers the strike. You can choose 1- 9 seconds. Unlock delay: Amount of time in seconds the door lock stays open. You can choose 0 – 9. Elev refer: It is reserved for high rise buildings.

  • Page 16: Sip Settings

    2-6: SIP Settings (found under VOIP tab) SIP enable: Leave the box unchecked. Proxy: URL of your SIP server. Realm: URL of the domain your SIP Authentication server is on. Outbound: URL of your outbound proxy server. Stun IP: URL of the STUN server. Stun Port: Port used to setup phone calls to a VOIP provider outside the local network.

  • Page 17: Forward Account Settings

    2-7: Forward Account Settings 1. Make a SIP call to another SIP device (with a SIP server ). enter number to be dialed on SIM into “RoomNo” box. ● enter SIP number to to call in the “Account” box, then click submit. ●...
  • Page 18 2-7: Forward Account Settings cont. 3. Use one number to forward to multiple devices. You can set the SIM up to forward a call to multiple devices when one string of numbers is pressed. You can use one number to forward a call to a maximum of 8 devices. ●...

  • Page 19: External Module Settings

    2-8: External Module Settings Voice GW: used to connect to an on-site voice gateway server if you are using one. Note: Any time you change your settings, you must click the submit button before leaving the page. 2-9: Advanced Settings Advertising: Not used with the SIM intercom.

  • Page 20: Phone Book

    Phone book The phone book is where you will connect names with room numbers for the SIM's on screen phone directory. Name: Searchable name that will be displayed in the phone book. ● Room: Room number to be associated with the name entered. ●...

  • Page 21: Logout

    2-11: Logout Note: Any time you change your settings, you must click the submit button before leaving the page.
