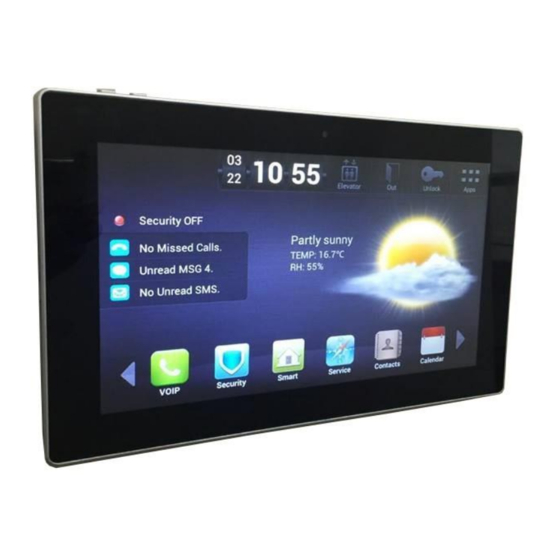

Ip touch screen room station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ST-3108 / ST-3078
IP Touch Screen Room Station
SETUP GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-3108 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Channel Vision ST-3108

Summary of Contents for Channel Vision ST-3108

  • Page 1 ST-3108 / ST-3078 IP Touch Screen Room Station SETUP GUIDE...

  • Page 2: Table Of Contents

    CATALOG PRODUCT FEATURES ..........................2 SPECIFICATIONS ..................Error! Bookmark not defined. 1. PRE-NETWORK SETTINGS ........................4 2. ACCESSING AND CONFIGURING THE USER INTERFACE ................. 7 3. NETWORK SETTINGS ..........................8 4. ROOM SETTINGS ............................ 9 4.1 Automatic Detection of Devices....................10 4.2 Custom Room Names and Contacts: .....................

  • Page 3: Product Features

    PRODUCT FEATURES 1. Building Intercom Application: VOIP: support video call, monitor and VOIP communication Security: support 8-way zone alarm with 3 states, make the zone and scene setup. Home: support RS-485 smart home extension. Contacts: android address book. 2. Operating system: Android 4.2.2. SPECIFICATIONS Voltage: DC 12V Rated power: 6W...
  • Page 4 FEATURES MODEL: ST-3078 microSD MODEL: ST-3108 microSD...

  • Page 5: Pre-Network Settings

    1. PRE-NETWORK SETTINGS - Connect your IP room station to your switch or router via cat5e or cat6, then launch the CVT Upgrade Tool (This tool is on http://channelvision.com/support/product-support/firmware-software/). Click on the search button to find the IP address of your door station. 192.168.1.230 by default. Verify your computer's LAN settings from a command prompt.
  • Page 6 If they don't match, you can refer to the “changing network settings” portion of this manual. Default IP address of the ST-3078 is 192.168.1.230, and for the ST-3108 is 192.168.1.220. Note: Do not proceed to step 3 until you have verified your computer and room station are on the same...

  • Page 7: Accessing And Configuring The User Interface

    - Open a Web browser, type the IP address of your room station into the address bar at the top and press enter to access the user interface. For ST-3108 the default IP is 192.168.1.220 and for ST-3078 is 192.168.1.230 Enter your user name and password to access the user interface.

  • Page 8: Network Settings

    3. NETWORK SETTINGS DHCP: leave the DHCP box unchecked, we want to leave the room station on a static address to access it later to make any necessary changes. IP: enter an IP address for your room station to use in your network. (refer to pre-network settings info) Mask: 255.255.255.0 The subnet mask of your network.

  • Page 9: Room Settings

    4. TOUCH SCREEN ROOM SETTINGS Build: 1-99. (Must match SI-8000 device settings) Unit: 1-99. (Must match SI-8000 device settings) Floor: 2 digits, 11 is default: (Must match SI-8000 device settings) Room: 2 digits. (If a particular configuration is needed, see sections 4.1 or 4.2.) Device: Must start with 0-9 and not have 2 devices with the same number including mobile phones.
  • Page 10 4.1 Room Station Setup: Automatic Detection of Devices OPTION 1 quickest setup option - We must configure at least 2 screens with this setting: Be certain that they have the same ‘Sync’ number so they could see each other on the network. Also, each device that is installed, must carry the same ‘Room No’, but in the ‘Device No’...
  • Page 11 In the Call Section, you now must see the Devices Installed in that moment. For this case, we are in the Device #2, so we must see the Device #1 into the contact list.

  • Page 12: Add Contacts

    4.2 Room Station Setup: Custom Room Names and Contacts OPTION 2 multi-station - With this configuration, we could add new contacts on our screen, and we can customize the names on it (Kitchen, Living Room, Jacob’s Room, etc). So first, we must make sure that this setup is being made first: Make sure that they have the same ‘Sync’...
  • Page 13 In this section, you could have the following options: • You could create a new contact for the device • Sign in to an account: you could access your email account and import contacts from there. • Import Contacts: If you have some contact files (XXX.vcf) files in a micro SD card inside the unit, you can import those contacts too.
  • Page 14 In the VoIP App “Call Section” now you will see the new contact. To Call the Kitchen: Select “Kitchen” contact, then the green phone icon.

  • Page 15: Voip Settings

    5. VOIP SETTINGS: First, the SIP box must be checked to configure this part, as shown: Proxy: URL of your SIP server. For the mobile visualization of the Door Stations, we will use the sip: Linphone app, is an open source SIP Server, so the parameters that fit in this part is: sip.linphone.org.

  • Page 16: Advanced Settings

    To confirm that the VOIP is set up correctly, in the “MAIN” section you will see the SIP Text is OK as a shown: 6. ADVANCED SETTINGS Ex Phone: Enter the URL of an SIP Account to forward when touchscreens room stations not answered.
  • Page 17 7. Website Settings Advertising: Enter the URL of a web page you want to advertise on the screen saver and select the box above. Browser: enter a web address that you want the BROWSER icon to navigate to. Mall: enter a web address that you want the MALL icon to navigate to. GOV: enter a web address that you want the GOV icon to navigate to.

  • Page 18: Download 3 Rd Party App's In The Touch Screen Room Stations

    PARTY APP’S to the TOUCH SCREEN 8. DOWNLOAD 3 ROOM STATIONS Steps to download a third-party Android App on the touchscreens room stations. 1) Connect to the internet on the touchscreen. 2) Go to ‘App’ Icon in the right upper corner. 3) Choose the ‘Browser’...
  • Page 19 4) In the Browser search bar, type http://m.apkpure.com 5) With the ‘Search tool’ in the webpage, type the name of the app that you want to install. For this example, we will use “Spotify”.
  • Page 20 6) Select the “Download” button, a Security Warning pop up will warn you about a problem with the security certificate; this is only a precaution for other pages. Select “Continue”. 7) The new App will begin downloading. When it finishes, at the bottom right corner (where the time is), you will see the new App’s icon.
  • Page 21 8) After selecting download, it will prompt another warning for ‘Install Blocked’, then select “Settings” to go to the “Settings/Security” section. In the “Settings/Security” section, check the “Unknown sources” box, to give permission to install the file. You will be prompted with another warning about vulnerability, select “Ok”.
  • Page 22 10) Go to the “File Manager” Icon in the main Apps section. Then, find the path of the file that was downloaded. Commonly it will be in “/mnt/sdcard/Download”. Here you can find the Spotify Music .apk file. Double click on it and it begins the installation process.
  • Page 23 11) After locating the “.apk” file, select it, and the installer will begin. Click on Next to continue the installation process. 12) After the installation process finishes, you select “Done” to close the window, or Select “Open” to use the app.
  • Page 24 Also, in the main APP section, you will see the icon of the app that you just installed.

  • Page 25: Change Default Icons On The Front Screen

    9. CHANGE DEFAULT ICONS ON THE FRONT SCREEN To change the standard icons provided on the desktop screen, follow this steps: 1. Push and hold the icon you want to remove for 2 seconds, “2” (TWO) times. After the second press you will see this image:...

  • Page 26: To Return Default Icons

    2. Select the icon you want to use, then select “OK”. It will change the icon in the front screen: 9.1 To Return Default Icons 3. Repeat the step 1 on the Custom Icon that is changed, but this time, select “CLEAR” so you will get back the default icon.
  • Page 27 In the front screen, you will see the default icon has returned:...
  • Page 28 Channel Vision Technology will repair or replace any defect in material or workmanship which occurs during normal use of this product with new or rebuilt parts, free of charge in the USA, for one year from the date of original purchase. This is a no hassle warranty with no mail in warranty card needed.
