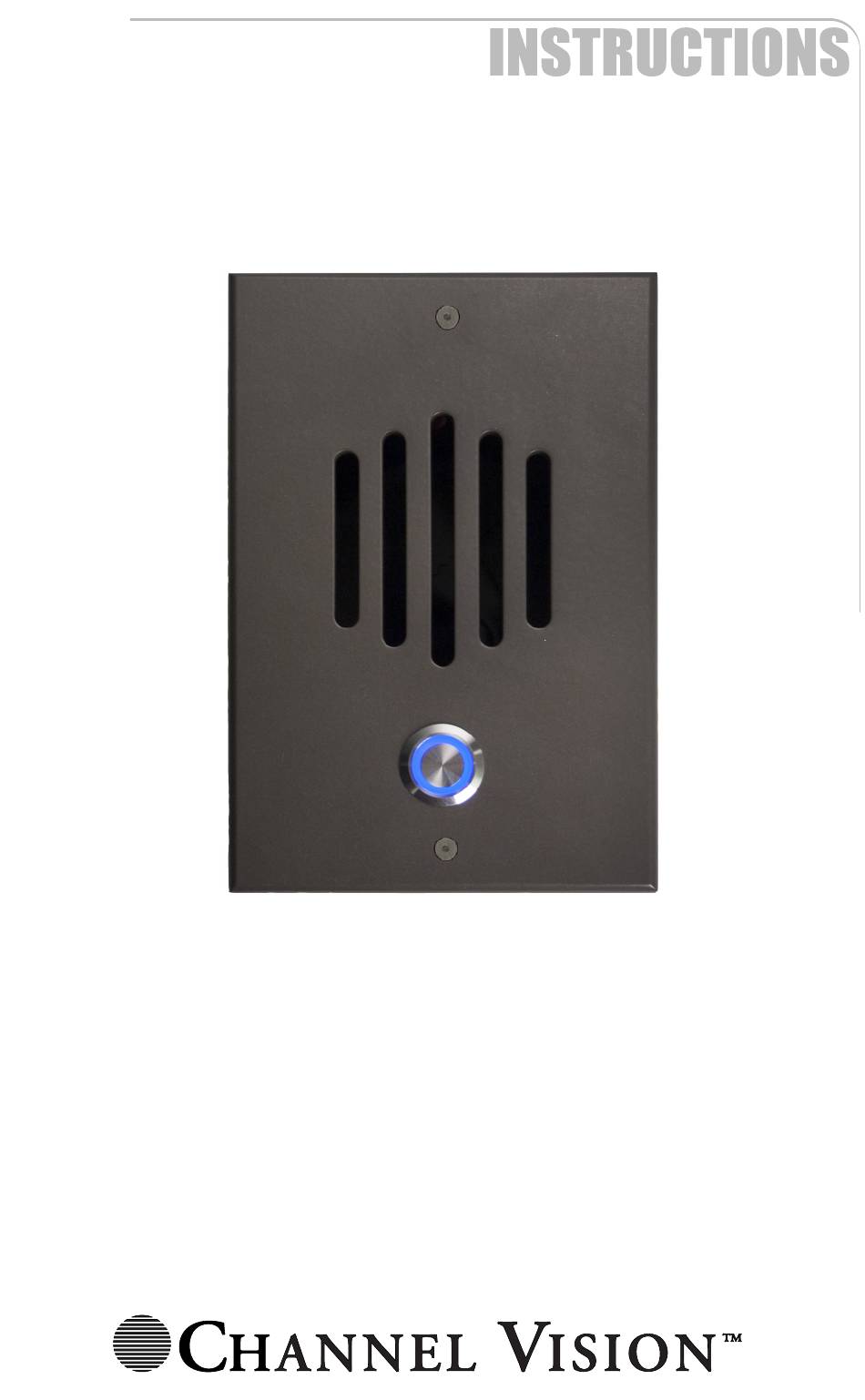

- Page 1 SI-XXXX SI-XXXXC SI-XXXXP Elite Series Brass Intercoms • Intelligent Entertainment • Infrastructure • Security Solutions...

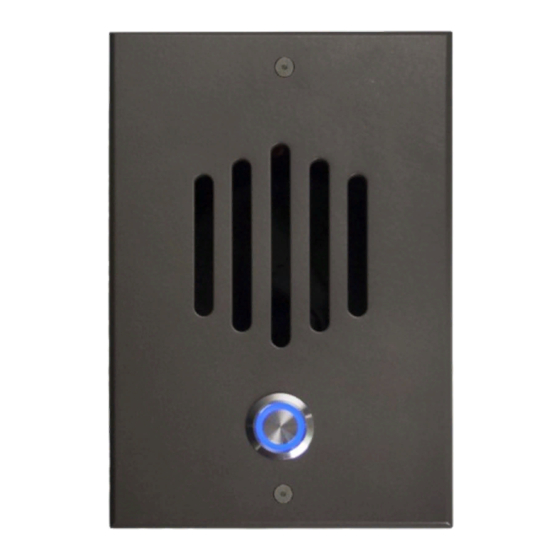

- Page 2 Intoduction Channel Vision’s -Series are 1/4" solid brass door plates that interface with a telephone entry controller to provide communication with the front door. They are available in a variety of configurations including options for a hidden camera and compatibility with Panasonic’s popular KSU phone systems.
-
Page 3: Understanding The Model Number
If there is not a letter suffix on the model number, such as SI-0212, that door plate is compatible with Channel Vision’s telephone entry products including models P-0920, P-0921, and TE-111. If the suffix is the letter “P”, such as SI-0212P, then the door plate is compatible with Panasonic’s phone systems which are designed to... - Page 4 Attaching the Companion Board (300-001 and 300-003) This door intercom product consists of two sub assemblies which must be attached to each other before the final assembly can be installed. In this guide the electronic sub assembly will be referred to as the “Companion Board”...
- Page 5 Attaching the Camera (SI-XXXX and SI-XXXXP) The SI-6xxx, SI-6xxxC, and SI-6xxxP come with a mini camera that can be attached to the integrated mount that allows the camera to see through the opening in the plate. The illustrations bellow show how to mount the camera. Mini Pinhole Camera Threaded Mounting Hole Cone Lens...
- Page 6 Attaching the Companion Board (SI-XXXXC) This door intercom product consists of two sub assemblies which must be attached to each other before the final assembly can be installed. In this guide the electronic sub assembly will be referred to as the “Companion Board”...
- Page 7 Attaching the Camera (SI-XXXXC) The SI-6xxxC come with a mini camera that can be attached to the integrated mount that allows the camera to see through the opening in the plate. The illustrations bellow show how to mount the camera. Mini Pinhole Camera Threaded Mounting Hole Cone Lens...
- Page 8 Channel Vision Compatible (SI-xxxx) Channel Vision’s SI-0xxx does not come with a camera, but the SI-6xxx series door plates come with a mini camera which attaches to the integrated camera mount. The SI-6xxx contains a color camera. The SI-0xxx and SI-6xxx all interface with the Channel Vision’s telephone entry controllers,...
- Page 9 ® Panasonic Compatible (SI-xxxxP) Channel Vision's Panasonic Series models are a compatible upgrade the Panasonic KXT series products. These 1/4" solid brass door plates provide an attractive alternative to the standard plastic door station sold by Panasonic. This product interfaces with Panasonic’s KSU phone systems to provide communication with the front door.
-
Page 10: Installation
CAT5 Intercom Compatible (SI-xxxx ) The diagram below shows how to connect the SI-xxxxC to Channel Vision’s CAT5 Whole-House Intercom system. When the button is pressed on the SI-xxxxC the ST-2000 Intercom Stations will generate a door chime. Pressing Answer/End will open communication with the SI-xxxxC. Model SI- 6xxxC includes a color camera, and SI-0xxxC includes no camera. -
Page 11: Specifications
Operating Temperature 14° - 122° Fahrenheit *Maintenance of Door Station plate Channel Vision recommends a light coating of vegetable oil on the surface and edging of the DP Doorplate for long lasting shine and protection. Quarterly to monthly maintenance is recommended. -
Page 12: Two-Year Limited Warranty
Two Year Limited Warranty Channel Vision Technology will repair or replace any defect in material or workmanship which occurs during normal use of this product with new or rebuilt parts, free of charge in the USA, for two years from the date of original purchase. This is a no hassle warranty with no mail in warranty card needed.
