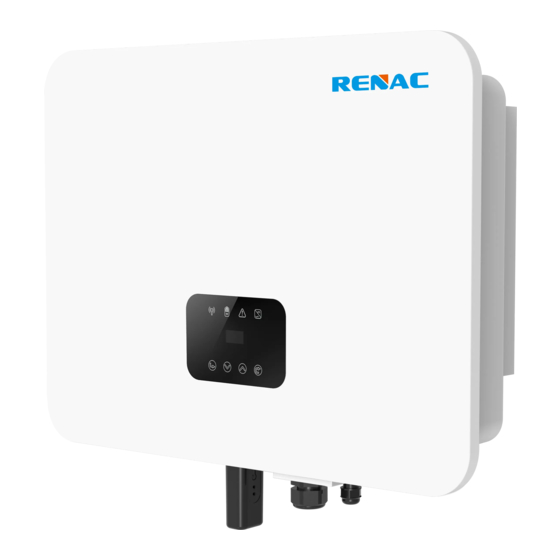

- Page 1 N1-HV Series User Manual N1-HV-3.0 N1-AC-3.0 N1-HV-3.68 N1-AC-3.68 N1-HV-5.0 N1-AC-5.0 N1-HV-6.0 N1-AC-6.0...
-
Page 2: Table Of Contents
Content 1. About This Manual 1.1 Applicability 1.2 Target group 1.3 Symbols used 2. Safety 2.1 General Safety 2.2 Important safety instructions 2.3 Explanation of symbols 3. Introduction 3.1 Basic features 3.2 Work modes 3.3 Terminals 3.4 Dimension 4. Technical data 5. -
Page 3: About This Manual
N1-AC-6.0 All rights to the content of this manual are owned by RENAC Power Technology Co., Ltd. (hereinafter called as ‘RENAC Power’). Any corporation or individual should not plagiarize, partially copy or fully copy it, and no reproduction or distribution of it in any form or by any means without prior written permission from RENAC Power. -
Page 4: Explanation Of Symbols
◆Do not open inverter cover or change any components without RENAC The N1-HV series hybrid inverters apply to PV energy storage system with PV module, battery, loads and grid. Power’s authorization, otherwise the warranty commitment for the NO TI C E The N1-AC series AC coupled inverters apply to energy storage system with battery, loads and grid. -
Page 5: Work Modes
N1-HV/AC Series User Manual 3.2 Work modes Work mode: Force time use The N1-HV Series hybrid inverter has the following work modes based on your configuration and layout conditions. Priority: battery>load>grid (when charging) Work mode: Self-use Priority: load>battery>grid 1) Generated solar energy... -
Page 6: Terminals
3.3 Basic features Max.DC Input Voltage (V) The N1-HV series hybrid inverters apply to PV energy storage system with PV module, battery, loads and grid. The N1-AC series AC coupled inverters apply to energy storage system with battery, loads and grid. -
Page 7: Installation
N1-HV/AC Series User Manual N1-HV/AC Series User Manual N1-HV-3.0 N1-HV-3.68 N1-HV-5.0 N1-HV-6.0 N1-HV-3.0 N1-HV-3.68 N1-HV-5.0 N1-HV-6.0 Model Model N1-AC-3.0 N1-AC-3.68 N1-AC-5.0 N1-AC-6.0 N1-AC-3.0 N1-AC-3.68 N1-AC-5.0 N1-AC-6.0 AC Output Data(on-grid) AC Short-circuit Protection Intergrated Rated AC Power (W) 3000 3680 5000*1 6000 AC Overvoltage Protection Intergrated... -
Page 8: Check For Transport Damage
N1-HV/AC Series User Manual N1-HV/AC Series User Manual Open the package and pick the product, check that if there is any distortion or impaired during the transportation. Meanwhile, check that if the relating accessories and the materials are here, you can see the accessories list in the table. The instruction manual is an integral part of the unit and should therefore be read and kept carefully. -
Page 9: Preparation
N1-HV/AC Series User Manual N1-HV/AC Series User Manual 5.5 Preparation ・Transportation must be carried by specialized person (truck operators. Hook-up personal), equipped with the necessary protection equipment (overalls, safe shoes, protective gloves, helmets, goggles) Tool Model Function ・Do not walk or stand beneath or in the proximity of the load. ・Avoid sudden movements and jolts when unloading and positioning the unit. -
Page 10: Electrical Wiring Connection
5.7.1 PV Wiring Connection(Only for N1-HV series inverter) Before connecting PV strings to N1-HV series hybrid inverter, please make sure requirements are followed as below : ・The total short- circuit current of PV string must not exceed inverter’s max DC current . - Page 11 N1-HV/AC Series User Manual N1-HV/AC Series User Manual 6.Push the insert into the sleeve (, C). 7.Tight the DC connector. 7.Tighten the cable gland to 2 Nm (, D).Use a suitable and calibrated torque wrench,size 15. Use an open-jaw wrench, size 16, a.Slide the cable nut towards the back shell.
- Page 12 N1-HV/AC Series User Manual N1-HV/AC Series User Manual 2.Remove the cable jacket by 40 mm, and strip the wire insulation by 8 mm–15 mm. Overview for all battery connections BAT+ 3.Fully insert the conductors to the corresponding terminal and tighten the screws with the torque 0.8 Nm. Pull cables outward to check whether they are firmly installed.
- Page 13 N1-HV/AC Series User Manual N1-HV/AC Series User Manual 5.7.5 Communication connection Meter wiring diagram Communication interface This product has a series communication interfaces besides WIFI or GPRS（optional）, Dry contact and extend port and for human and machine communication, etc., can be delivered to PC or other monitoring equipment via these interfaces. AC Switch PV Panels Hybrid Inverter...
-
Page 14: Inverter Manipulation
N1-HV/AC Series User Manual N1-HV/AC Series User Manual 5.8 Inverter manipulation Name Description Object Green: Normal working Status. Start inverter after checking all below steps: Red: Fault. ・Check that the device is fixed well on the wall. Indicator ・Make sure all the PV wiring and the AC wiring are completed. Blue: Battery communication status. -
Page 15: Lcd Operation
N1-HV/AC Series User Manual N1-HV/AC Series User Manual A) Solar ====On-Grid==== ====Safety==== ==Volt Protect== >Safety >AS4777 >Vac Upper Slow Grid ==Volt Protect== 260.0V Export Control >Vac Lower Slow This status shows the real time PV parameters of the system. The input voltage, current and power of each PV input. Press 180.0V =====Settings===== ==User Verify==... - Page 16 N1-HV/AC Series User Manual N1-HV/AC Series User Manual 3. History D) PV Connection Press up and down to select, and review the data of , press ’ESC’ to return to the Menu. This function can set the mode of PV input. There are two modes for selection; Comm and Multi. The ‘Comm’ mode means single MPP tracking, 2 MPPT working together;...
- Page 17 N1-HV/AC Series User Manual N1-HV/AC Series User Manual K) Feature ==Volt Protect== >Vac Upper Slow Press up or down button to enable or disable remote control, DRM0, and Meter. Press ‘OK’ to confirm. 260.0V ==Volt Protect== >Vac Lower Slow 180.0V ====On-Grid==== ==Volt Protect== ====Feature====...
-
Page 18: Troubleshooting
N1-HV/AC Series User Manual N1-HV/AC Series User Manual Inverter over current or battery over current or PV over current detected by hardware. N) USB • Disconnect PV, grid and battery, then reconnect. HW Protect Fault Press up or down button to upgrade DSPM, DSPM or ARMC. Press ‘OK’ to confirm. •... - Page 19 N1-HV/AC Series User Manual N1-HV/AC Series User Manual The sample value between master and slave is not consistent. The manager eeprom is fault. • Disconnect PV, grid and battery, then reconnect. • Disconnect PV, grid and battery, then reconnect. AD Sample Fault Mgr EEPROM Fault •...
-
Page 20: Decommissioning
・Are the display panel and the communications cable properly connected and undamaged? Contact Renac Power Customer Service for further assistance. Please be prepared to describe details of your system installation and provide the model and serial number of the unit.
