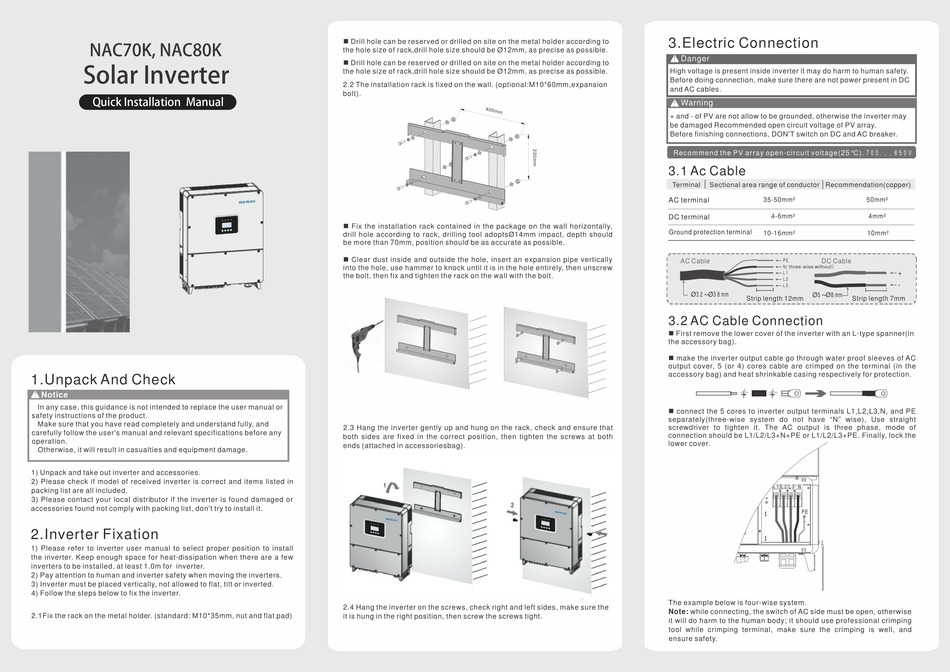

Renac NAC70K Quick Installation Manual

NAC70K, NAC80K
Solar Inverter
Quick Installation Manual
1.Unpack And Check
Notice
In any case, this guidance is not intended to replace the user manual or
safety instructions of the product.
Make sure that you have read completely and understand fully, and
carefully follow the user's manual and relevant specifications before any
operation.
Otherwise, it will result in casualties and equipment damage.
1) Unpack and take out inverter and accessories.
2) Please check if model of received inverter is correct and items listed in
packing list are all included.
3) Please contact your local distributor if the inverter is found damaged or
accessories found not comply with packing list, don't try to install it.
2.Inverter Fixation
1) Please refer to inverter user manual to select proper position to install
the inverter. Keep enough space for heat-dissipation when there are a few
inverters to be installed, at least 1.0m for inverter.
2) Pay attention to human and inverter safety when moving the inverters.
3) Inverter must be placed vertically, not allowed to flat, tilt or inverted.
4) Follow the steps below to fix the inverter.
2.1Fix the rack on the metal holder. (standard: M10*35mm, nut and flat pad)

Drill hole can be reserved or drilled on site on the metal holder according to
,
the hole size of rack drill hole size should be Ø12mm, as precise as possible.

Drill hole can be reserved or drilled on site on the metal holder according to
,
the hole size of rack drill hole size should be Ø12mm, as precise as possible.
2.2 The installation rack is fixed on the wall. (optional:M10*60mm,expansion
bolt).

Fix the installation rack contained in the package on the wall horizontally,
drill hole according to rack, drilling tool adoptsØ14mm impact, depth should
be more than 70mm, position should be as accurate as possible.

Clear dust inside and outside the hole, insert an expansion pipe vertically
into the hole, use hammer to knock until it is in the hole entirely, then unscrew
the bolt, then fix and tighten the rack on the wall with the bolt.
2.3 Hang the inverter gently up and hung on the rack, check and ensure that
both sides are fixed in the correct position, then tighten the screws at both
ends (attached in accessoriesbag).
1
2
2.4 Hang the inverter on the screws, check right and left sides, make sure the
it is hung in the right position, then screw the screws tight.
3.Electric Connection
Danger
High voltage is present inside inverter it may do harm to human safety.
Before doing connection, make sure there are not power present in DC
and AC cables.
Warning
+ and - of PV are not allow to be grounded, otherwise the inverter may
be damaged Recommended open circuit voltage of PV array.
Before finishing connections, DON'T switch on DC and AC breaker.
R e c o m m e n d t h e P V a r r a y o p e n - c i r c u i t v o l t a g e ( 2 5 ° C ) . 7 0 0 . . . 8 5 0 V
3.1 Ac Cable
Terminal Sectional area range of conductor Recommendation(copper)
AC terminal 35-50mm²
4-6mm²
DC terminal
Ground protection terminal
10-16mm²
P E
AC Cable DC Cable
N ( three-wise without ）
L 1
L 2
L 3
~ ~
Ø3 2 Ø38m m Ø5 Ø8m m
Strip length 12mm
3.2 AC Cable Connection

First remove the lower cover of the inverter with an L-type spanner(in
the accessory bag).

make the inverter output cable go through water proof sleeves of AC
output cover, 5 (or 4) cores cable are crimped on the terminal (in the
accessory bag) and heat shrinkable casing respectively for protection.
+ +

connect the 5 cores to inverter output terminals L1,L2,L3,N, and PE
separately(three-wise system do not have "N" wise), Use straight
screwdriver to tighten it. The AC output is three phase, mode of
connection should be L1/L2/L3+N+PE or L1/L2/L3+PE. Finally, lock the
lower cover.
The example below is four-wise system.
Note: while connecting, the switch of AC side must be open, otherwise
it will do harm to the human body; it should use professional crimping
tool while crimping terminal, make sure the crimping is well, and
ensure safety.
50mm²
4mm²
10mm²
+
-
Strip length 7mm
