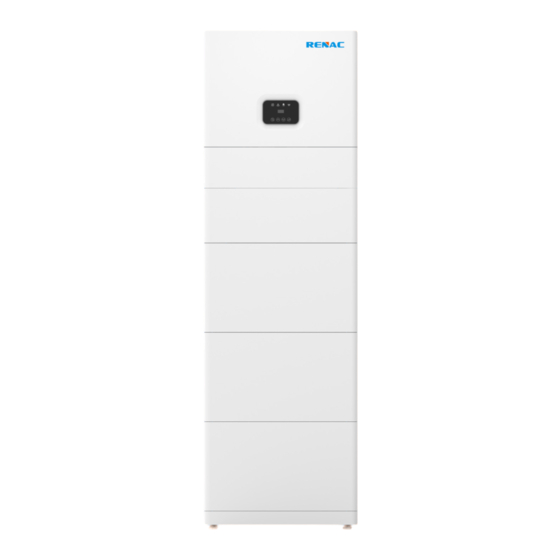

- Page 1 A1-HV Series User Manual A1-HV-3.0 A1-HV-3.68 A1-HV-5.0 A1-HV-6.0...
-
Page 2: Table Of Contents
Content 1. About This Manual 1.1 Applicability 1.2 Target group 1.3 Symbols used 2. Safety 2.1 General Safety 2.2 Important safety instructions 2.3 Explanation of symbols 3. Product Overview 3.1 Basic features 3.2 Work modes 3.3 Product Overview 3.4 Terminals 3.5 Dimension 4. -
Page 3: About This Manual
A1-HV-3.0 A1-HV-3.68 A1-HV-5.0 A1-HV-6.0 Copyright Declaration! All rights to the content of this manual are owned by RENAC Power Technology Co., Ltd. (hereinafter called as ‘RENAC Power’). Any 1.2 Target group corporation or individual should not plagiarize, partially copy or fully copy it, and no reproduction or distribution of it in any form or by any means without prior written permission from RENAC Power. -
Page 4: Explanation Of Symbols
Severe injuries or death may occur if the tent electricians according to local regulations. cables and terminals in the inverter are touched. ◆Do not open inverter cover or change any components without RENAC Power’s authorization, otherwise the warranty commitment for the NOT ICE ◆PV negative (PV-) and battery negative (BAT-) on inverter side is not... -
Page 5: Product Overview
A1-HV Series User Manual A1-HV Series User Manual 3.2 Work modes Do not expose the battery to open flame, heat or sparks, as there is a riskof fire or explosion. The All in one ESS has the following work modes based on your configuration and layout conditions. -
Page 6: Product Overview
A1-HV Series User Manual A1-HV Series User Manual Work mode: Force time use Work mode: Back up mode Priority: battery>load>grid (when charging) Priority: battery>load>grid PV Panels PV Panels Grid Grid 1) Generated solar energy 2) Load consumption 3) Storage in Battery... -
Page 7: Terminals
A1-HV Series User Manual A1-HV Series User Manual 3.4 Terminals RBS view Inverter view Terminals Description Description Object Object DC switch SD port PV connector(Only for N1-HV series inverter) Communication port Battery connector EPS port WiFi or GPRS port AC port... -
Page 8: Technical Data
A1-HV Series User Manual A1-HV Series User Manual Model 4 Technical data A1-HV-3.0 A1-HV-3.68 A1-HV-5.0 A1-HV-6.0 Efficiency Model A1-HV-3.0 A1-HV-3.68 A1-HV-5.0 A1-HV-6.0 Max. Efficiency 97.42% 97.45% 97.50% 97.50% DC Input Data Euro Efficiency 97.15% 97.17% 97.20% 97.20% Max. Recommended PV Power [Wp]... -
Page 9: Installation
A1-HV Series User Manual A1-HV Series User Manual 5 Installation 5.1 Unpacking Check the delivery for completeness. Contact your dealer at once if anything is missing. Inverter Object Quantity Description N1-HV/AC series inverter Inverter bracket (for fixing the inverter) Bracket3(connect bracket2 and inverter bracket) -
Page 10: Check For Transport Damage
A1-HV Series User Manual A1-HV Series User Manual Object Quantity Description Rechargleable Battery Stack(B9639-S) RBS protective cover Bracket DCinput power cable(B+ to B-) Signal cable(RBS to RBS) Ground cable Expansion tubes& Expansion screws M5 screws M4 screws Object Quantity Description Quality Certificate... -
Page 11: Available Space
A1-HV Series User Manual A1-HV Series User Manual 5.4 Available space 5.5 Preparation Tool Model Function KIMO 20V 1/2 Cordless Hanging the bracket Brushless Impact Wrench Set Strippling plier for PV cable PV-AZM-410 PV-CZM-22100 Crimping plier for PV cable Wiring... -
Page 12: Installation Steps
A1-HV Series A1-HV Series User Manual User Manual ・If the unit is not balanced apply ballast. Any protruding parts should not be supported by hand. 5.Align the marking-off plate with the upper surface of the base. ・The inverter should be installed so that the operating panel shall be easily accessible- easy access to the electrical power connection point. -
Page 13: Electrical Wiring Connection
A1-HV Series A1-HV Series User Manual User Manual 5.7 Electrical Wiring Connection 11.Secure the RBSs each other and BMC with RBS using M5 screws 12.Install the frame on the BMC and drill 4 holes to screw the wall bracket on the wall. -
Page 14: Pv Wiring Connection
A1-HV Series A1-HV Series User Manual User Manual Note: This diagram is an example for grid system without special requirement on electrical wiring connection. 4.Insert striped cable into pin contact and ensure all conductor strands are captured in the pin contact. - Page 15 A1-HV Series A1-HV Series User Manual User Manual 4.Carefully insert the stripped wire with twisted litz wires all the way in( , A).The litz wire ends have to be visible in the spring. 5.Close the spring. Make sure that the spring is snapped in( ,B).
- Page 16 A1-HV Series A1-HV Series User Manual User Manual 5.7.4 AC Output Connection Function CANH CANH All in one ESS inverters have already integrated RCMU (residual current monitoring unit) inside, however if an external RCD is required, a type A RCD with rated residual current of 30mA or higher is recommended.
- Page 17 A1-HV Series A1-HV Series User Manual User Manual 3.Fully insert the conductors to the corresponding terminal and tighten the screws with the torque 0.8 Nm. Pull cables outward Step 3: Install the inverter cover and terminal cover to check whether they are firmly installed.
-
Page 18: Commisioning
1. WIFI or GPRS 4. DRED Connect the WIFI/GPRS module produced by Renac to the This application meets the requirements of local Australian grid code (AS/NZS 4777.2) which, among specific requirements for COM port and install the antenna to the terminal cover. -
Page 19: Switch On The Battery System
A1-HV Series User Manual A1-HV Series User Manual 5.9 Switch on the Battery System 6.2 LCD function Menu structure : 1. Switch on the air switch between the battery and inverter if there is any. 2. Switch on the DC switch on BMC. -
Page 20: Lcd Operation
A1-HV Series A1-HV Series User Manual User Manual 6.3 LCD operation D) BMS 1. Main screen This status shows the battery situation of the system. Include the battery voltage and current, charge and discharge voltage, charge and discharge current. ‘+’ means in charging; ‘-’ means in discharging. Press up and down button to review the The main screen as below. - Page 21 A1-HV Series A1-HV Series User Manual User Manual C) Work Mode ==Volt Protect== Press up or down button to select different work modes. Press ‘OK’ to confirm. >Vac Upper Slow ==Volt Protect== 260.0V >Vac Lower Slow ===Work Mode=== ===Work Mode===...
-
Page 22: Troubleshooting
A1-HV Series A1-HV Series User Manual User Manual J) Feature M) USB Press up or down button to enable or disable remote control, DRM0, and Meter. Press ‘OK’ to confirm. Press up or down button to upgrade DSPM, DSPS, ARMC, BATM or BATS. Press ‘OK’ to confirm. - Page 23 A1-HV Series A1-HV Series User Manual User Manual Inverter over current or battery over current or PV over current detected by hardware. The sample value between master and slave is not consistent. • Disconnect PV, grid and battery, then reconnect.
-
Page 24: Decommissioning
• Or seek help from us, if not go back to normal state. ・Are the display panel and the communications cable properly connected and undamaged? Contact Renac Power Customer Service for further assistance. Please be prepared to describe details of your system installation and Battery input over voltage error provide the model and serial number of the unit. - Page 25 SMART ENERGY FOR BETTER LIFE R E N A C P O W E R T E C H N O L O G Y C O . , LT D . Block C-12, No. 20 Datong Road, Comprehensive Bonded Zone, Suzhou Hi-Tech District, Suzhou, China Tel：+86-0512-66677278 info@renacpower.com .renacpo er.com...
