Zoeller X161 Owner's Manual
Hide thumbs Also See for X161:

Advertisement

Quick Links

NOTICE TO INSTALLER: Instructions must remain with installation.
Product information presented
here re fl ects con di tions at time
of publication. Consult factory
re gard ing dis crep an cies or
in con sis ten cies.
Certifi ed to CSA Standard
Standard 3600 & 3615
C22.2 No. 145
See page 3.

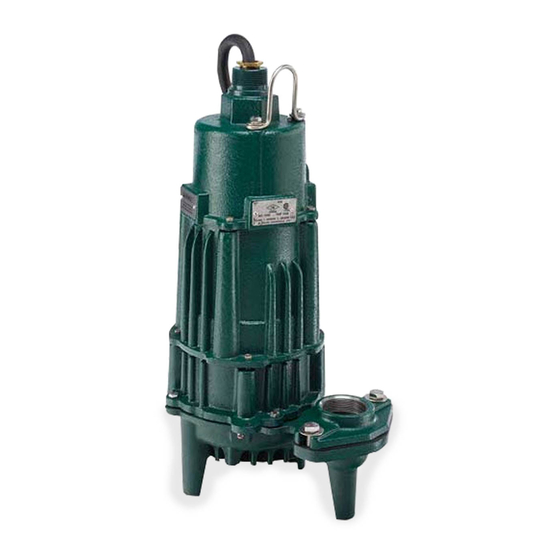

ZOELLER HAZARDOUS ENVIRONMENT PUMPS
(For Class 1, Division 1, Groups C & D Applications)
EFFLUENT
X161, X163, X165
X185, X186, X188, X189
X191

Table of Contents

Safety Instructions ....................................................................... 1
Limited Warranty .......................................................................... 2
Preinstallation Checklist .............................................................. 2
Electrical Data ............................................................................3-4
General Information ..................................................................5-6
Pump Dimensions ........................................................................ 7
Pump Wiring Instructions .........................................................8-9
Operation ..................................................................................... 10
General Maintenance ................................................................. 11
Service Checklist ........................................................................ 12
Owner's Information
Model Number: ______________ Date Code: _______________
Simplex
Job Name: ____________________________________________
Distributor: ____________________________________________
Date of Purchase: _________ Zoeller S/O No.: ______________
Contractor: ____________________________________________
Date of Installation: ____________________________________
System Readings During Start-up: Voltage _____ Amps ______
MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
(502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624
R
OWNER'S MANUAL
Explosion Proof Motors
Duplex
© Copyright 2010 Zoeller Co. All rights reserved.
SEWAGE
X282, X284
X292, X293, X294, X295
X404, X405

Safety Instructions

TO AVOID SERIOUS OR FATAL PERSONAL INJURY OR MA-
JOR PROPERTY DAMAGE, READ AND FOLLOW ALL SAFETY
INSTRUCTIONS IN THIS MANUAL AND ON THE PUMP.
THIS MANUAL IS INTENDED TO ASSIST IN THE IN STAL LA TION
AND OPERATION OF THIS UNIT AND MUST BE KEPT WITH THE
PUMP.
This is a SAFETY ALERT SYMBOL.
When you see this symbol on the pump or in the
man u al, look for one of the following signal words
and be alert to the potential for personal injury or
property damage.
Warns of hazards that WILL cause serious personal
injury, death or major property damage.
Warns of hazards that CAN cause serious personal
injury, death or major property damage.
Warns of hazards that CAN cause personal injury
or prop er ty damage.
INDICATES SPECIAL INSTRUCTIONS WHICH ARE
VERY IMPORTANT AND MUST BE FOLLOWED.
THOROUGHLY REVIEW ALL INSTRUCTIONS AND WARNINGS
PRIOR TO PERFORMING ANY WORK ON THIS PUMP.
MAINTAIN ALL SAFETY DECALS.
REFER TO WARRANTY ON PAGE 2.
1
SECTION: 6.10.041
FM2298
0810
Supersedes
0610
visit our web site:
www.zoeller.com
