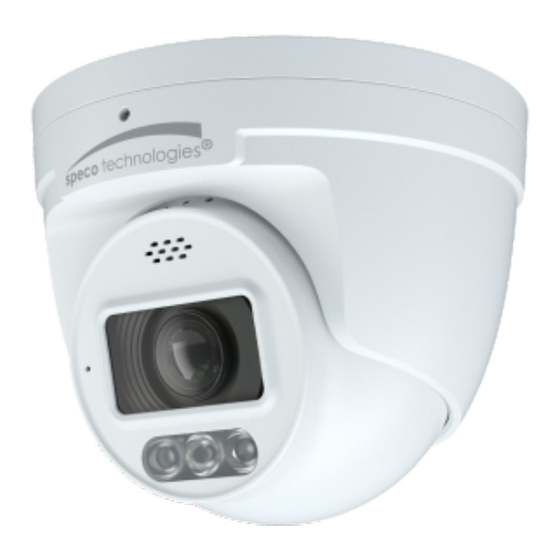

Summary of Contents for Speco O8TDD2M
- Page 1 Quick Start Guide O8TDD2M...
- Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
- Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
- Page 4 Quick start guide Drill template Camera Screwdriver 3 Screws 4 Screws 3 Screws 4 Rubber o-rings Junction box (6.5×38mm) (PA 4×25mm) (PM 4×10mm) for screws 7 Plastic screw anchors Water-proof connector kit Overview Overview Ethernet connector Audio input connector (MIC) Audio output connector (HP) Alarm input/output Power connector...
-
Page 5: Connecting Network Cable
External microphone 1--ALARM-COM 2--ALARM_OPEN 3--ALARM_INA 4--ALARM_GND DC12V * It is recommended to install the water-proof connector for outdoor installations. Connecting Network Cable * If the RJ 45 connector of the network cable has a jacket and cannot be threaded through the kit, remove the jacket. If the jacket cannot be removed, cut off the connector and install an RJ 45 connector without the jacket. -
Page 6: Installation
Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera and the junction box. ① Open the mounting base and the upper cover of the junction box. Mounting base Upper cover ②... - Page 7 Loosen the set screw to disassemble the camera. Then remove ④ the cover from the camera unit to insert the SD card. After that, install the cover back to the camera unit and fix it firmly with the screws. (Note that the cover should not be installed unevenly .) Set Screw Insert a micro SD card Mounting Base...
- Page 8 ⑦ Adjust the camera to obtain an optimum angle. Before adjustment, preview the image of the camera on a monitor. After that, tighten the set screw to finish the installation. Set screw Web Operation and Login...
- Page 9 ① Make sure that the camera and the PC are connected to the same local network. The camera is set to DHCP by default. ② Install Speco Blue Scanner and run it after installation. Speco Blue Scanner is the tool for discovering the IP cameras on the local network. It can be downloaded from www.specotech.com.
